Mixing Valve Supply Fixture for Emergency Drench Equipment

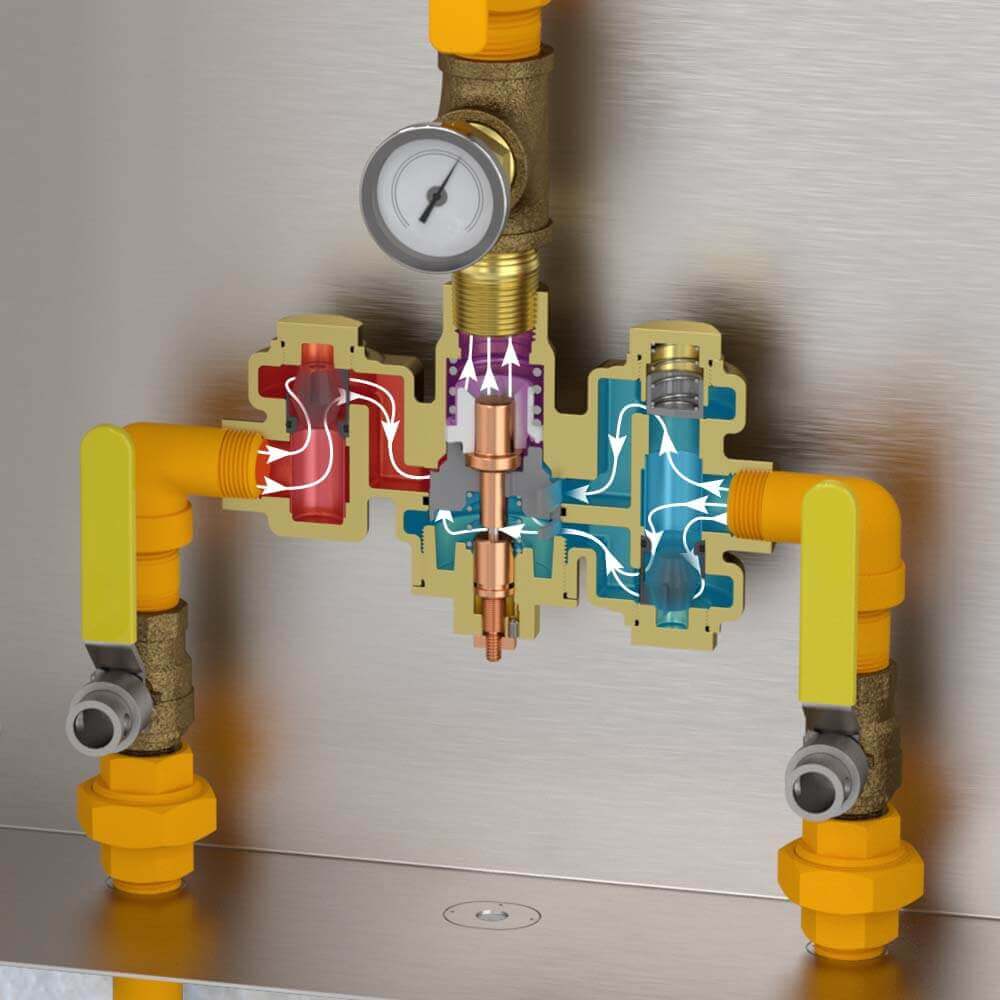

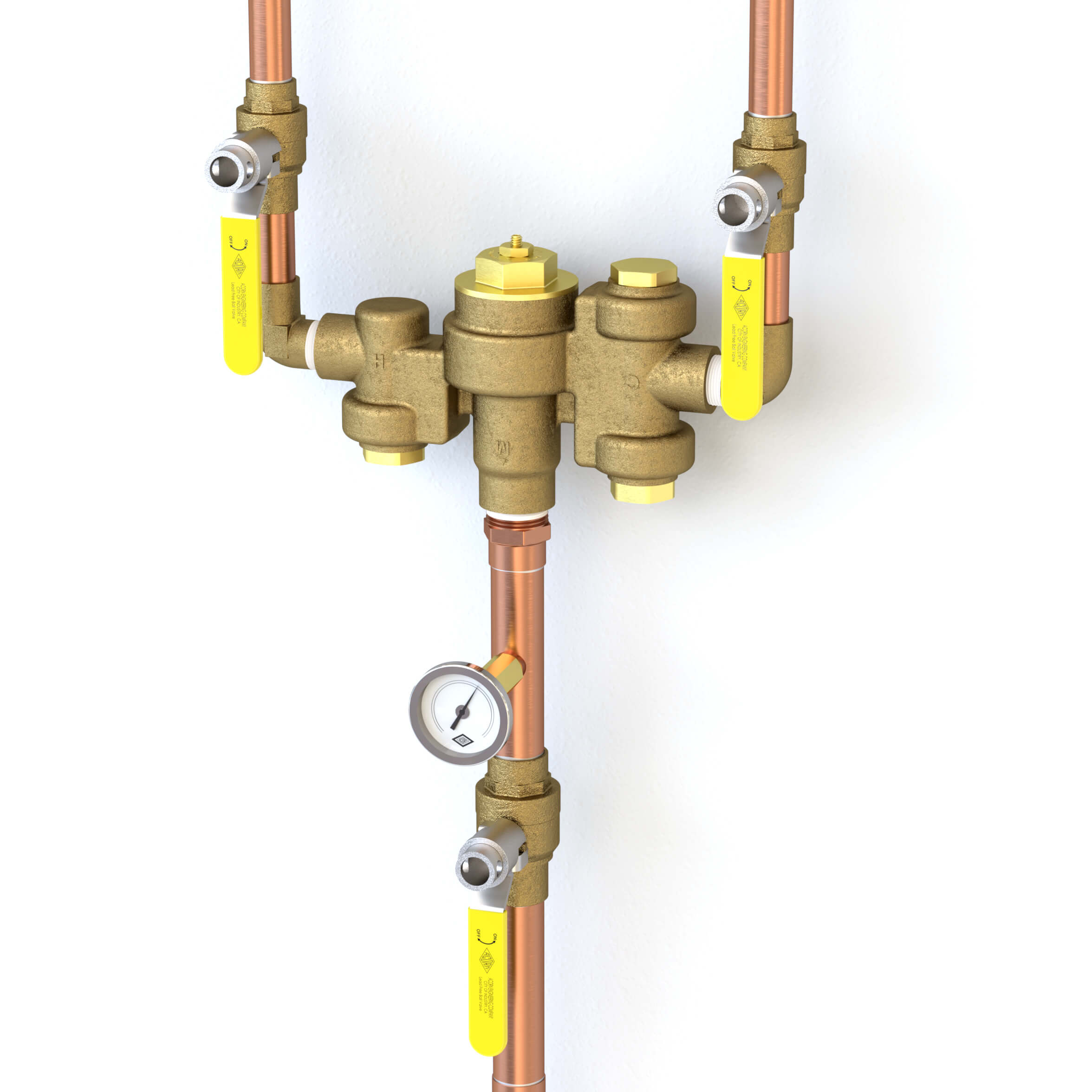

The model SFET Series Emergency Tempering Valve Supply Fixtures are lead-free and designed to deliver safe tepid water to safety systems such as eye, face, and shower fixtures and combination units. It's factory set to 85°F ( 29.44°C) to insure comfort when used with an eye wash, yet can be safely set up to 95°F (35°C) for maximum comfort and effectiveness when used with body washes. The SFET Supply Fixture is offered in 4 sizes so you can meet the needs of your application based on minimum flow performance requirements and maximum flow demands. This supply fixture can be used to control the temperature of recirculating as well as non-recirculating supply systems.

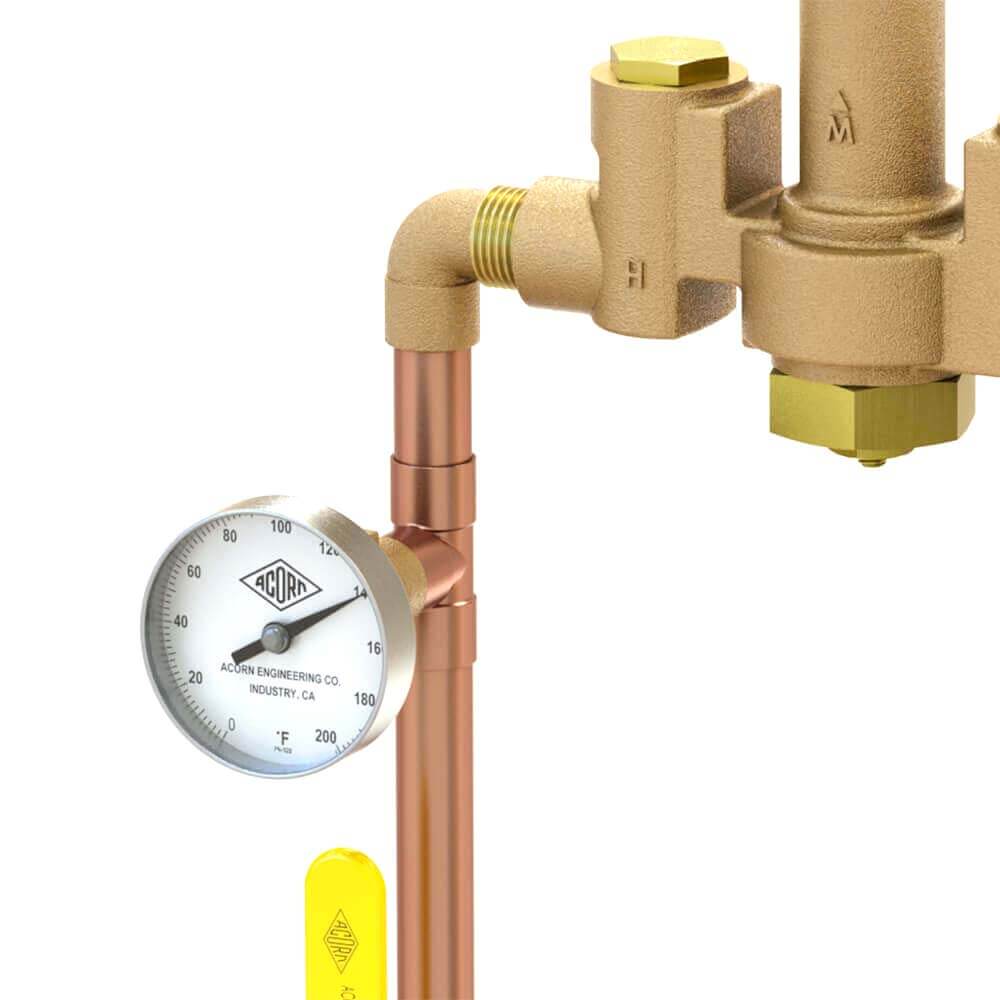

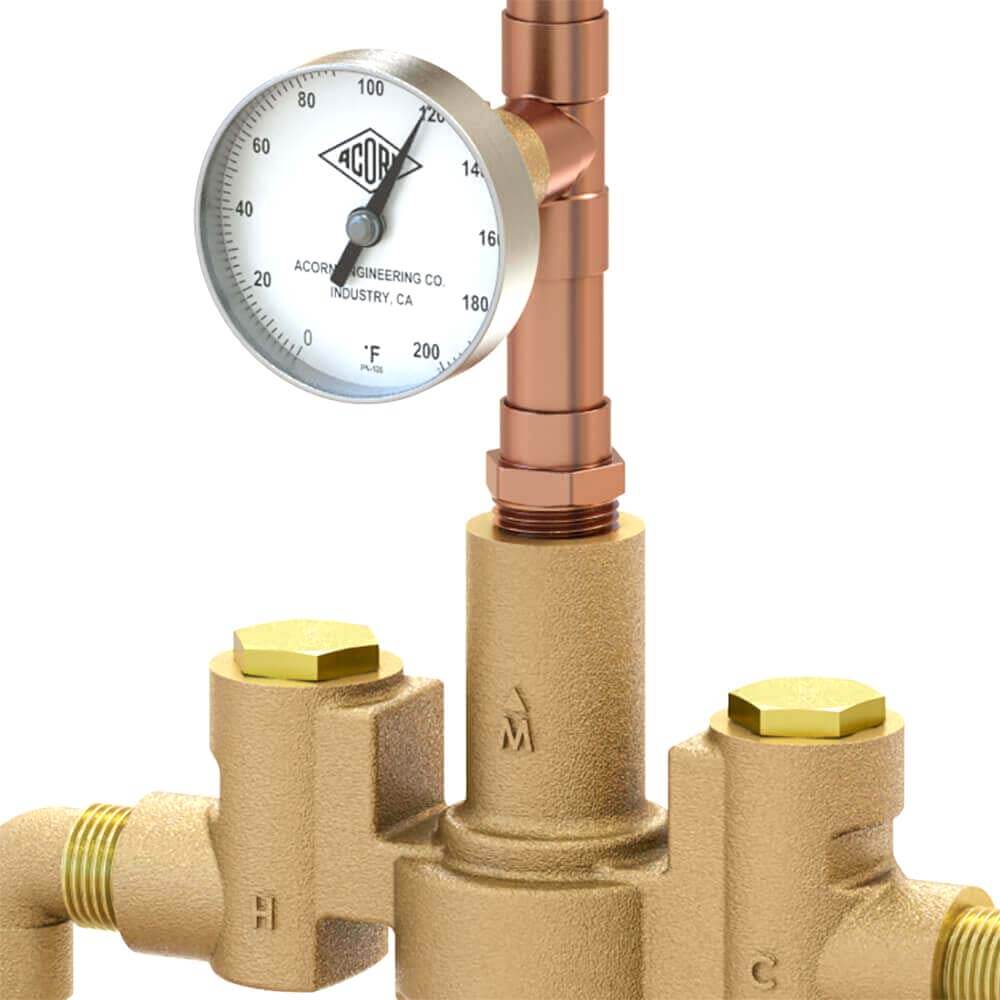

TEMPERATURE GAUGE -ITG | Measure Hot & Cold Inlet Temperatures

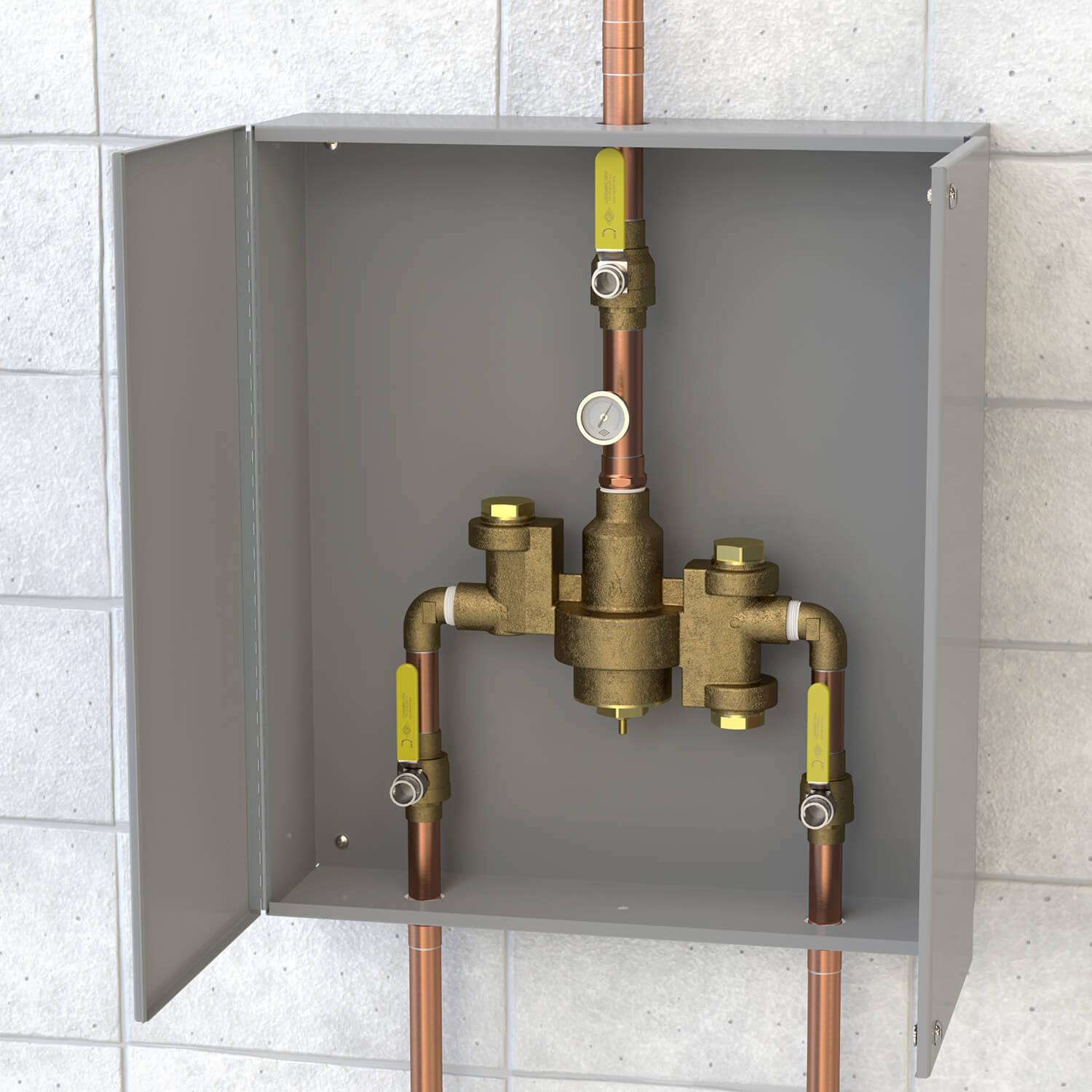

OPTIONAL CABINET -RC | Recessed Cabinet; -SMC | Surface Mounted Cabinet -PRC | Prime Coat Finish ; -SSTL | Stainless Steel -DRS | Solid Door; -DRV | Door Viewport Specify Door Opening: Left Side Hinge, Right Side Hinge; Double Hinged Open from Center
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Downloads
Resource Type
Title
Description
File Size
Action
Installation Instructions
Manual SAFETY SFET Series (pdf)
Mixing Valve Supply Fixture for Emergency Drench Equipment
1 MB
Submittals
Submittal SAFETY SFET Series (pdf)

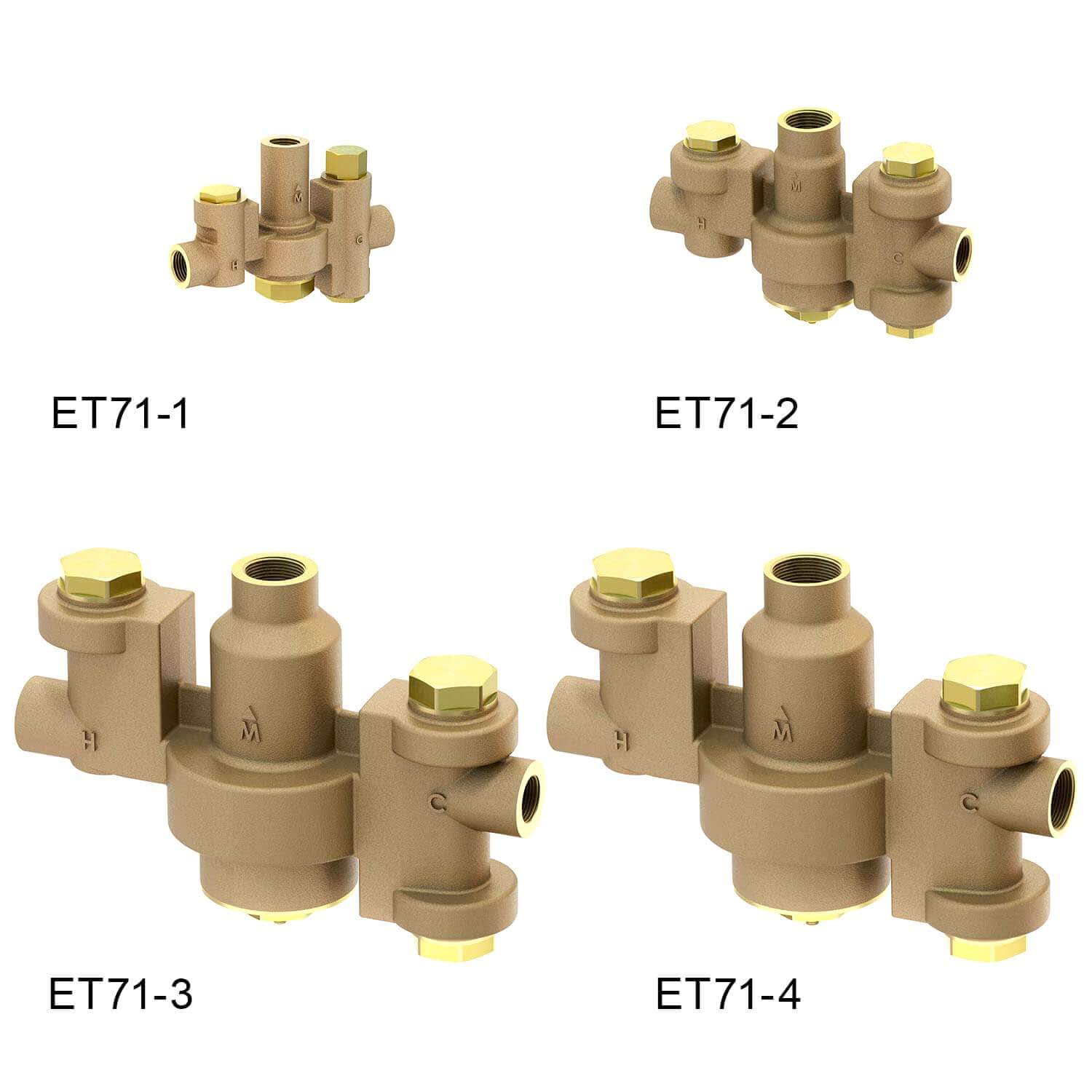

Mixing Valve Supply Fixture for Emergency Drench Equipment [SFET-1 | Brass Valve Body with 1/2" NPT Inlet & Outlet Connections, 12 gpm (45 lpm) includes ET71-1 Valve; SFET-2 | Brass Valve Body with 3/4" NPT Inlet & 1" NPT Outlet Connections, 43 gpm (163 lpm) includes ET71-2 Valve; SFET-3 | Brass Valve Body with 1" NPT Inlet & 1-1/4" NPT Outlet Connections, 75 gpm (284 lpm) includes ET71-3 Valve; SFET-4 | Brass Valve Body With 1-1/4" NPT Inlet & 1-1/2" NPT Outlet Connections, 135 gpm (510 lpm) includes ET71-4 Valve]
