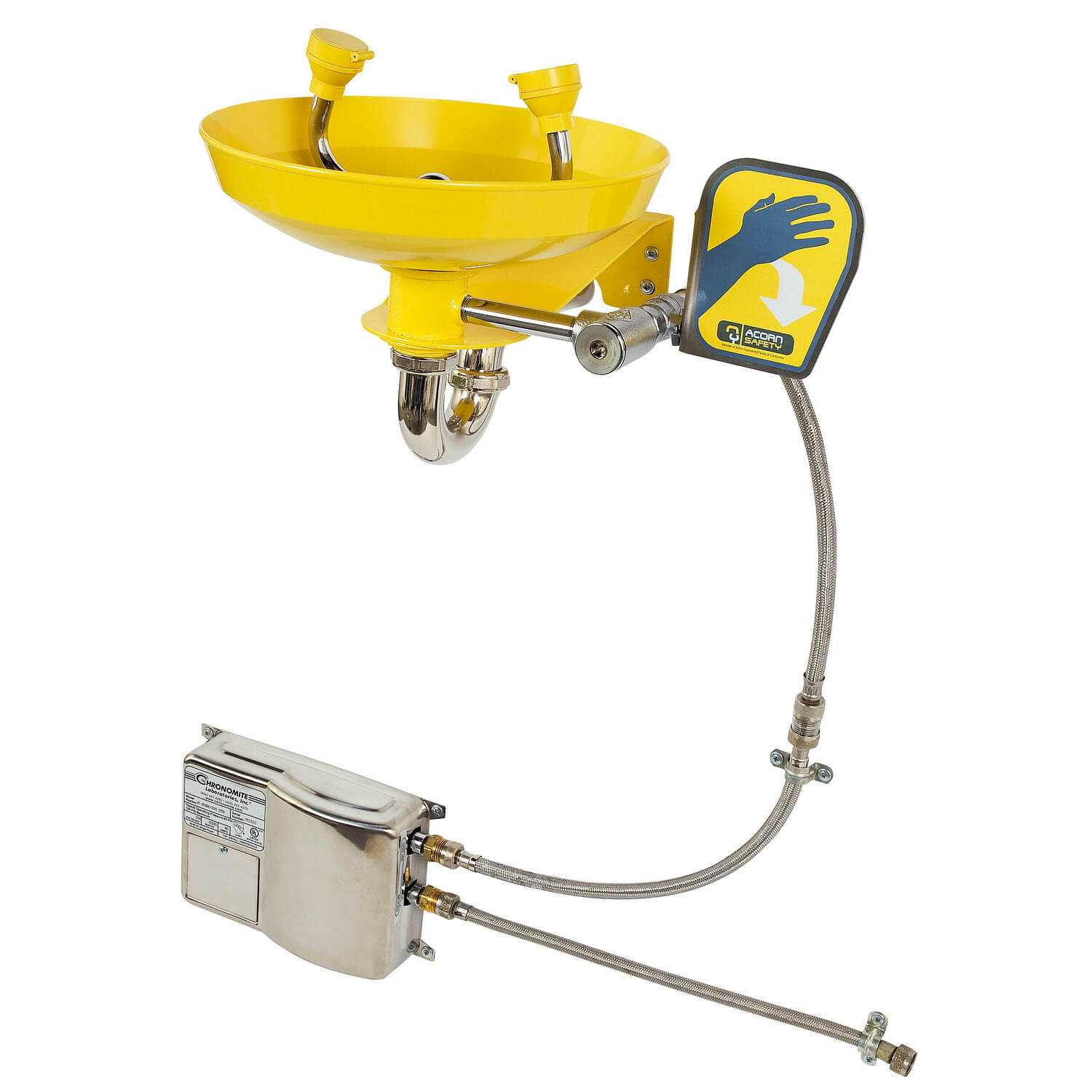

Accessory: Chronomite® Instant-Flow® Micro® Point-of-Use Thermostatic Tankless Water Heater

Model S0000-IWH1 is a point-of-use, single-phase, non-continuous use, an instantaneous water heater with Celcon waterways, Ni-Chrome heating coils, and a maximum temperature rise of 23°F. The heater provides tepid warm water, factory preset to 84°F.

Applications: For Eye-Face Wash

Heater Assembly: Cast aluminum, white enamel painted housing, Celcon element assembly with Ni-Chrome coils that can produce a maximum temperature rise of 23°F at 2.5 GPM.

Water Supply: Compression fittings to receive 3/8" OD tube inlet and outlet. Minimum operating pressure of 45 psi and a maximum operating pressure of 150 psi. The minimum operating flow rate is 2.2 GPM.

Electrical Requirements: 208 VAC, 40 Amps, 8,320 Watts.

Submittal S0000-IWH1
