Chronomite® BOXER® Three Phase, Large-Capacity Electric Tankless Water Heater

In StockThis product is available for quick shipment nationwide.
Model ERB
Installation Instructions
Manual ERB Series Water Heater (pdf)
Submittal
2 available
Model ERB

Chronomite® BOXER® Three Phase, Large-Capacity Electric Tankless Water Heater

Chronomite - Boxer® Three-Phase - Low Activation - L9 models are manufactured to provide reliable tepid water with flow rates from 2.6 gallons (9.8 liters) to 30 gallon (114 liters) per minute. There is no pressure and temperature relief valve needed (unless required by code), saving time and money on installation.

Applications: For combination Drench Shower with Eye-Face wash, the optimum water temperature is 84°F (28.89°C) for ANSI Z358.1 compliance. The flow rate shall be 20 gallon (75.7 liters) per minute. Activation flow rate is 2.6 gallons (9.8 liters) per minute.

Features:

  • Uses a digital microprocessor for temperature control - Ultra quick response times for temperature variations- 120 times per second. Microprocessor use is the most energy efficient means of heating water
  • Unlimited hot water
  • Saves water and energy - 99% energy efficient

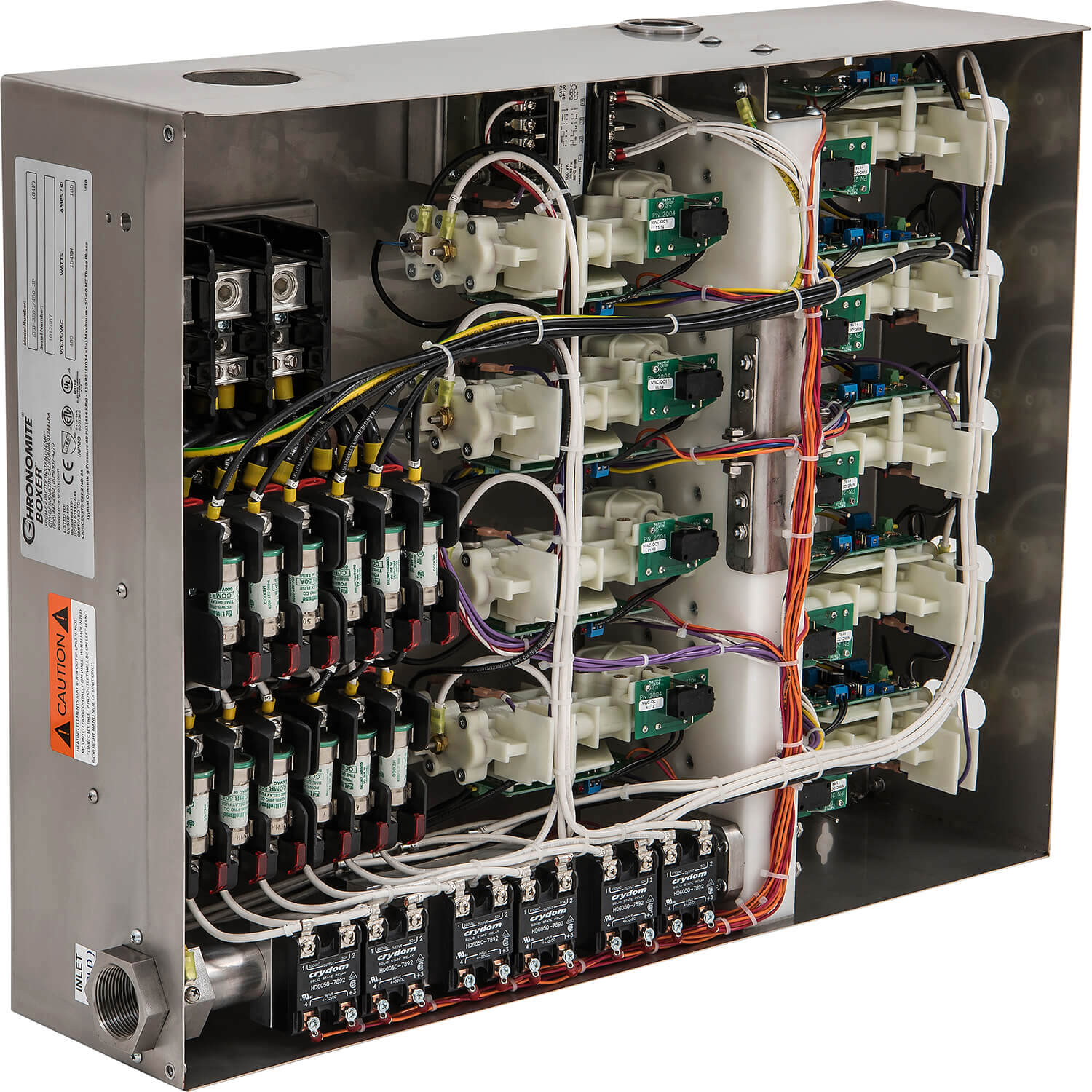

  • Safety – Quantity 9 independent heater modules, each having a PID controller, flow switch, dual fuse protection, and high limit thermostat. 9 modules are divided into 3 main sections electrically and can be manually reset if the temperature limit is exceeded.
  • No solenoids, loss of power = cold water bypass
  • Meets applicable building codes including UL, UPC
  • Environmentally friendly

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Submittals
PDF icon
Submittal ERB Series Water Heater High Activation (pdf)
Boxer® High Capacity Tankless Heater, 68.4 to 154.0 Kilowatts, Three-Phase, High Activation including ERB-360H/208_3P, ERB-360H/240_3P, ERB-180H/380_3P, ERB-270H/380_3P, ERB-360H/380_3P, ERB-180H/415_3P, ERB-270H/415_3P, ERB-360H/415_3P and others.787 KB
PDF icon
Submittals
PDF icon
Submittal ERB Series Water Heater Low Activation (pdf)
Boxer® High Capacity Tankless Heater, 68.4 to 154.0 Kilowatts, Three-Phase, Low Activation including ERB-360L/208_3P, ERB-360L/240_3P, ERB-180L/380_3P, ERB-270L/380_3P, ERB-360L/380_3P, ERB-180L/415_3P, ERB-270L/415_3P, ERB-360L/415_3P and others.828 KB
PDF icon
Installation Instructions
PDF icon
Manual ERB Series Water Heater (pdf)
Manual ERB Water Heater (208-600v Three-Phase - including Low, Standard, High Activation Models)5 MB
PDF icon
Technical Data Sheets
PDF icon
Application Data Sheet - High Activation Heaters for Drench Showers (pdf)
High Activation High Capacity Heater for use on Acorn Safety Drench Shower featuring Chronomite Boxer® Heater [ERB-H_3P Series] 933 KB

Specifications

Product TypeTankless Water Heater
PhaseThree-Phase
ApplicationCombination Shower and Eye-Face Wash
Activation Flow2.6 GPM
Flow Range2.6 - 30 GPM
Factory Preset Temperature84°F
Housing MaterialStainless Steel
Element MaterialCelcon Plastic
Heating CoilsNichrome
Temperature ControlMicroprocessor
Connections1-1/4" NPT Female
Minimum Operating Pressure25 PSI
Maximum Operating Pressure80 PSI
Maximum Water Temperature160°F
Dimensions21" H x 26-3/4" W x 7-1/2" D
Weight76 lbs
ListingUL, IAPMO, UPC, ETL
