Stainless Steel Head, Horizontal Mount Safety Shower

In StockThis product is available for quick shipment nationwide.
Model S2200
Installation Instructions
Manual S2200, S2200-BF-PR60 Shower (pdf)
Submittal
Submittal S2200 Drench Shower (pdf)
Model S2200

Stainless Steel Head, Horizontal Mount Safety Shower

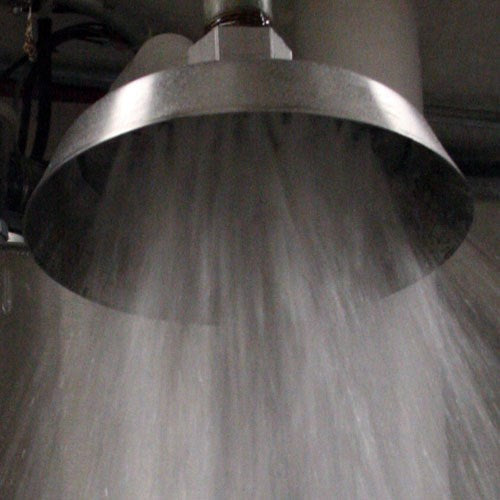

Model S2200 is a horizontally mounted emergency shower with a stainless steel showerhead and a 1" stay-open ball valve with a 29" pull rod.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

  • Ease of maintenance
  • Conveniently pre-assembled
  • Highly visible yellow powder coating
  • Barrier-free options

Downloads

Resource Type
Title
Description
File Size
Action
DOC icon
Product MasterSpec
DOC icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
170 KB
PDF icon
Installation Instructions
PDF icon
Manual S2200, S2200-BF-PR60 Shower (pdf)
Horizontal Mounted Safety Shower, Stainless Steel Showerhead [S2200 | Standard; S2200-BF-PR60 | Barrier-Free, Extended Horizontal Pipe, 60-Inch Pull-Rod]668 KB
PDF icon
Submittals
PDF icon
Submittal S2200 Drench Shower (pdf)
Stainless Steel Head, Horizontal Mount Safety Shower156 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB
PDF icon
Product MasterSpec
PDF icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
177 KB

Specifications

Fixture TypeEmergency Shower
MountingHorizontal Mount
InstallationExposed
ActivationPull Rod
Pull Rod Length29"
Valve TypeStay-Open Ball Valve
Valve Size1"
Valve MaterialChrome Plated Brass
Supply Inlet1" NPT
Flow Rate20 GPM
Flow Pressure30 PSI
Showerhead MaterialStainless Steel
Showerhead Diameter8"
Piping MaterialGalvanized Steel
Piping FinishYellow Powder Coat
ComplianceANSI Z358.1
