Stainless Steel Head, Horizontal Mount Safety Shower - 27" Ceiling Shower Pipe Extension and 63" Pull Rod

In StockThis product is available for quick shipment nationwide.
Model S2200-PE27-PR63
Installation Instructions
Manual S2200-PE27-PR63, S2200-PE27-PR85 Shower (pdf)
Submittal
Submittal S2200-PE27-PR63 Drench Shower (pdf)
Model S2200-PE27-PR63

Stainless Steel Head, Horizontal Mount Safety Shower - 27" Ceiling Shower Pipe Extension and 63" Pull Rod

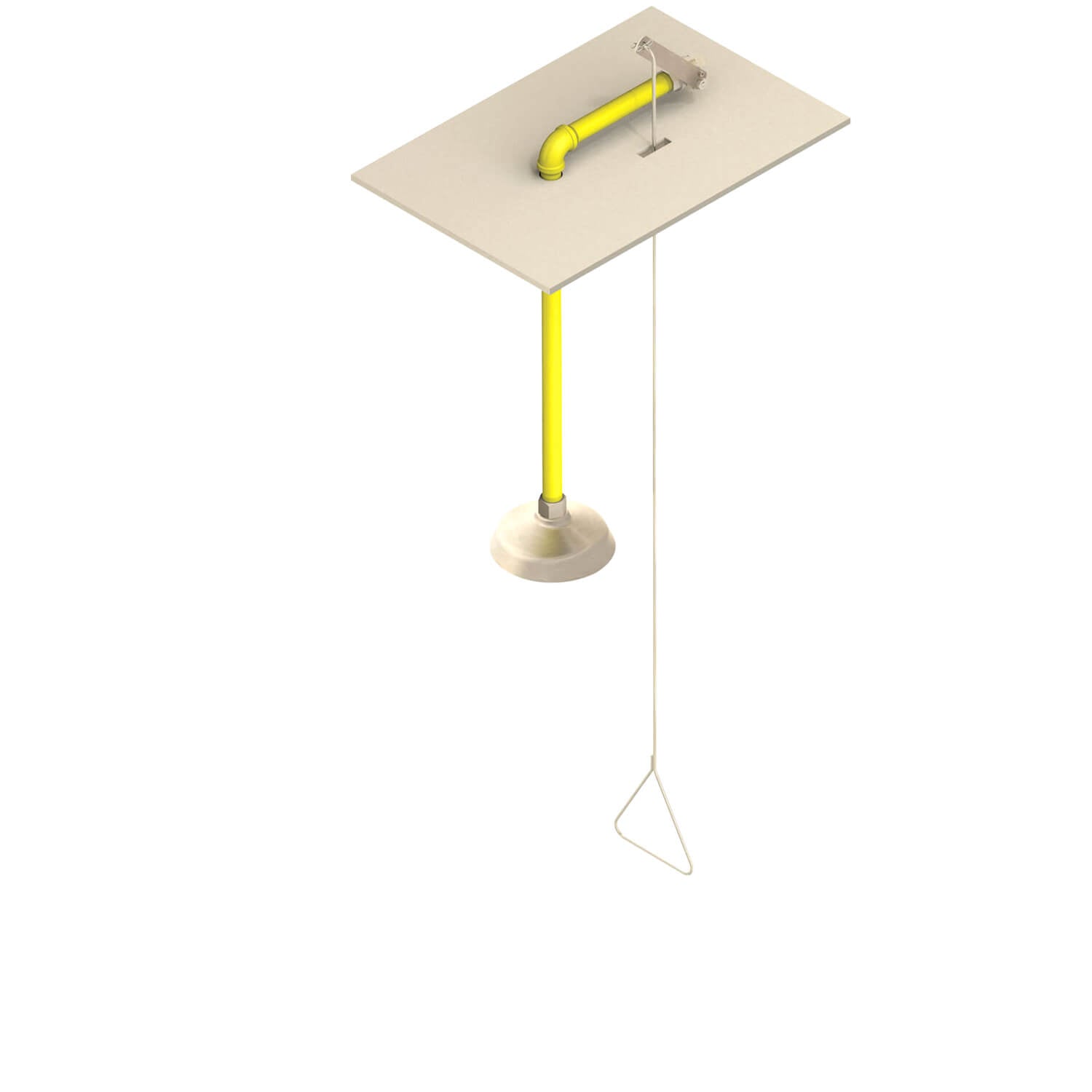

Model S2200-PE27-PR63 is a partially concealed, horizontally mounted emergency shower with a stainless steel showerhead vertically dropped through the ceiling and a 1" stay-open ball valve with a pull rod. The shower is designed for applications where the ceiling is 8 - 10 feet above the floor.

Universal Sign: ANSI-compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S2200-PE27-PR63, S2200-PE27-PR85 Shower (pdf)
Horizontally Mounted Safety Shower, 27-Inch Vertical Pipe Extension [S2200-PE27-PR63 | 63-Inch Pull Rod; S2200-PE27-PR85 | Barrier-Free with 85-Inch Pull Rod]717 KB
PDF icon
Submittals
PDF icon
Submittal S2200-PE27-PR63 Drench Shower (pdf)
Stainless Steel Head, Horizontal Mount Safety Shower - 27-Inch Ceiling Shower Pipe Extension and 63-Inch Pull Rod255 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB

Specifications

Fixture TypeEmergency Shower
MountingHorizontal Mount
InstallationPartially Concealed
ActivationPull Rod
Pull Rod Length63"
Valve TypeStay-Open Ball Valve
Valve Size1"
Valve MaterialChrome Plated Brass
Supply Inlet1" NPT
Flow Rate20 GPM
Flow Pressure30 PSI
Showerhead MaterialStainless Steel
Showerhead Diameter8"
Piping MaterialGalvanized Steel
Piping FinishYellow Powder Coat
ComplianceANSI Z358.1
