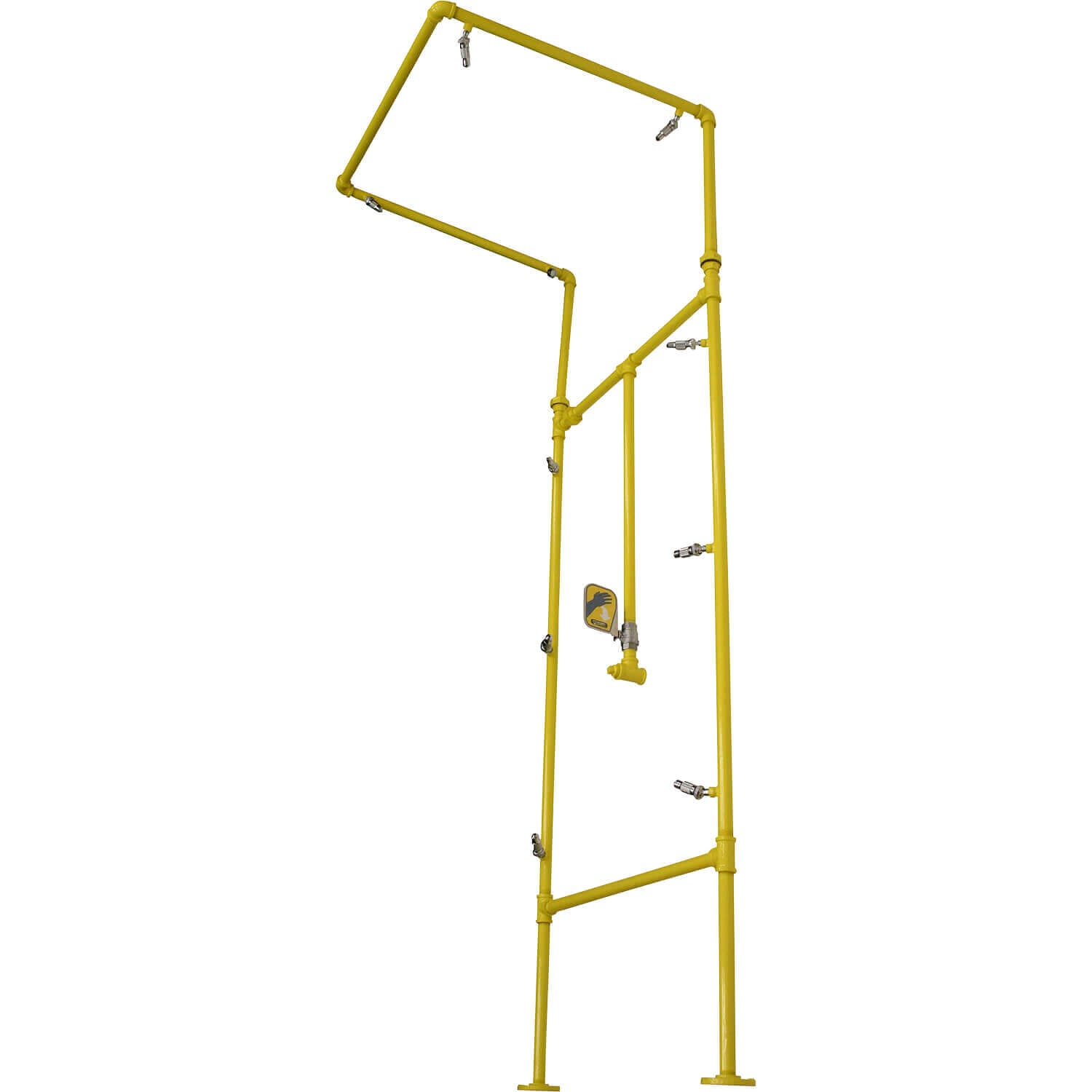

Safety Decontamination Shower with Chrome Nozzle
Model S4400 is an emergency decontamination shower with chrome plated brass showerheads and a 1" stay-open ball valve with a stainless steel push handle. Compliant to ANSI/ISEA 113-2008.
Showerhead: Chrome plated brass showerheads each with a 2.0 gpm flow regulator.
Valve: 1" NPT rough chrome plated brass stay-open ball valve. Unit is provided with a stainless steel push handle.
Water Supply: 1" NPT female threaded brass inlet.
Piping & Mounting: Schedule 40 galvanized steel piping and 4-5/8" diameter galvanized floor flanges with a yellow powder coated finish.
Universal Sign: ANSI compliant, vertical identification sign.
Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | 1 MB | |||
| | 238 KB | |||
 | | 2 MB | |||
 | | 652 KB | |||
| | Low Activation High Capacity Heaters for use on Acorn Safety Shower Eye-Face Wash Combination featuring Chronomite Boxer® Heater [ERB-L_3P Series] | 901 KB | ||
| | Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/2018 | 5 MB | ||
| | Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 | 1 MB |
Specifications
| Activation | Push Panel |
| Shower Type | Decontamination, Nozzle Shower Sprayheads |
