Stainless Steel Ceiling Safety Shower with Recessed Activation

In StockThis product is available for quick shipment nationwide.
Model S3200-RA
Submittal
Submittal S3200-RA Drench Shower (pdf)
Model S3200-RA

Stainless Steel Ceiling Safety Shower with Recessed Activation

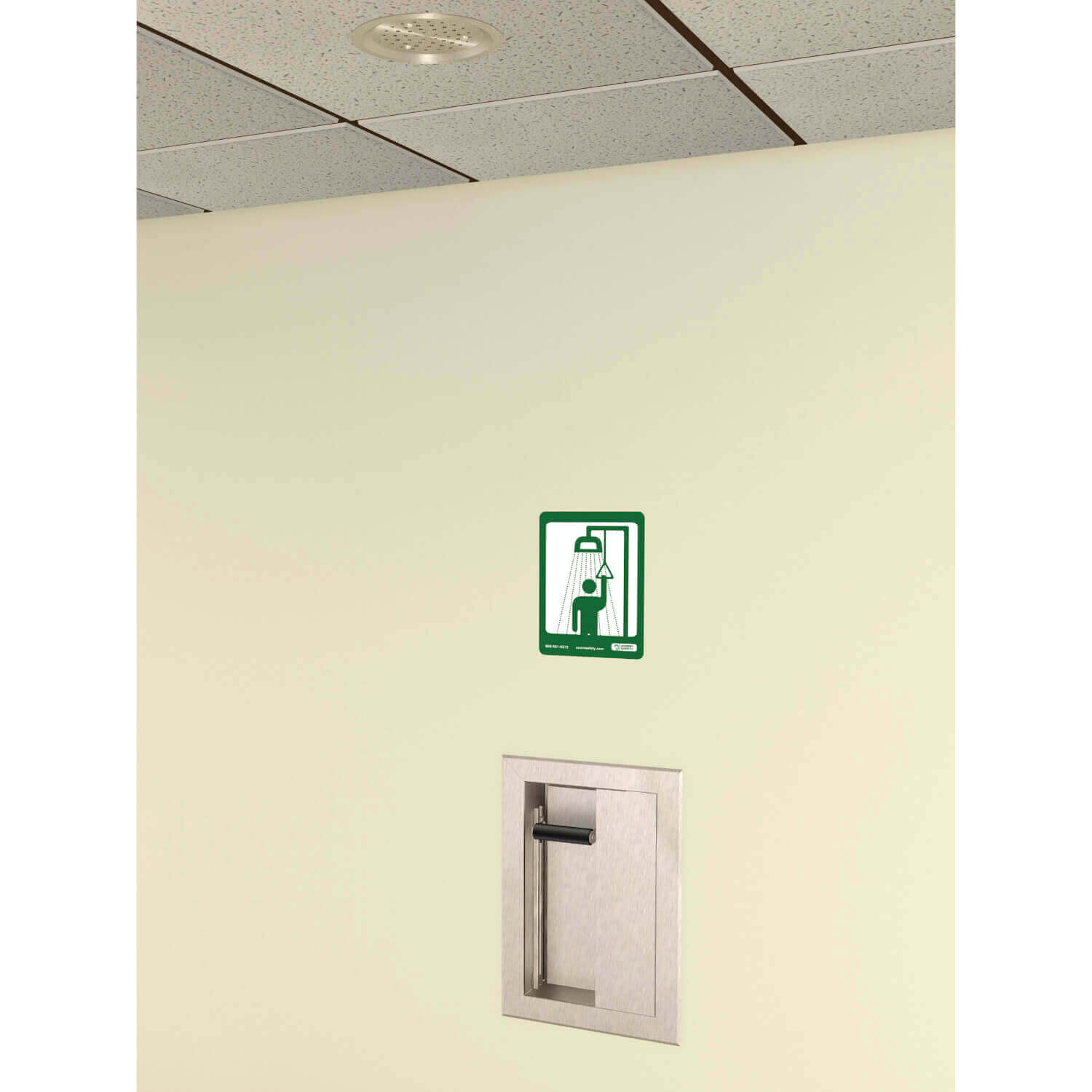

Model S3200-RA is a recessed activated and mounted emergency shower with a stainless steel showerhead.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Submittals
PDF icon
Submittal S3200-RA Drench Shower (pdf)
Stainless Steel Ceiling Safety Shower with Recessed Activation166 KB
PDF icon
Technical Data Sheets
PDF icon
Application Data Sheet - Low Activation Heaters for Shower Eye-Face Wash Comb (pdf)
Low Activation High Capacity Heaters for use on Acorn Safety Shower Eye-Face Wash Combination featuring Chronomite Boxer® Heater [ERB-L_3P Series] 901 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB

Specifications

Fixture TypeEmergency Shower
MountingHorizontal Mount
InstallationFlush Ceiling
ActivationRecessed Actuator
Valve TypeStay-Open Ball Valve
Valve Size1"
Valve MaterialChrome Plated Brass
Valve EnclosureRecessed Stainless Steel, Vandal-Resistant Access Panel
Supply Inlet1" NPT
Flow Rate20 GPM
Flow Pressure30 PSI
Showerhead MaterialStainless Steel
Showerhead Diameter8-7/8"
Piping MaterialGalvanized Steel
Piping FinishYellow Powder Coat
ComplianceANSI Z358.1
