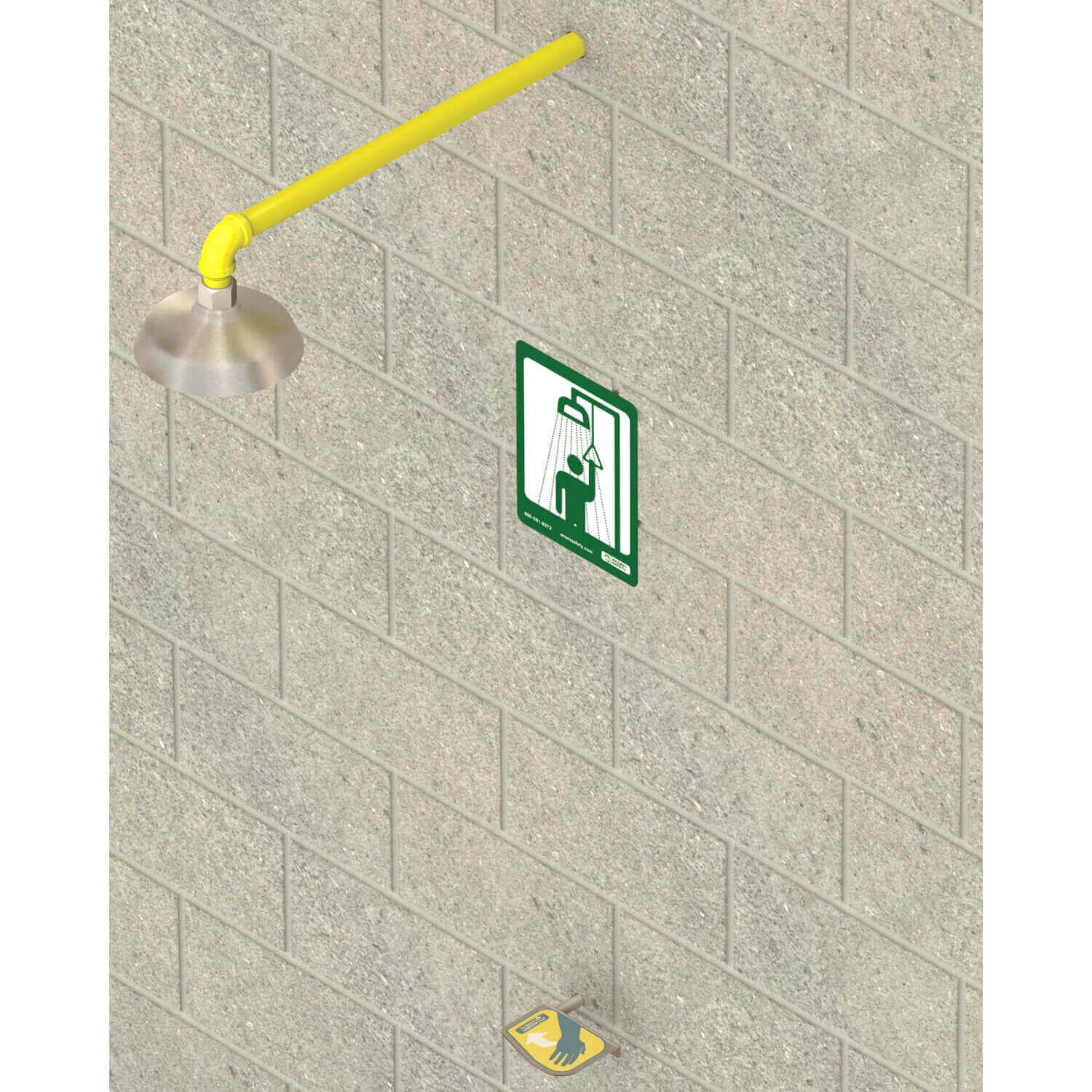

Freeze-Resistant Stainless Steel Horizontal Mount Safety Shower
Model S2200-FRV is a freeze resistant, horizontally mounted emergency shower with a stainless steel showerhead, and a 1" stay-open ball valve with a push handle. The self draining valve and supply are located behind the wall in a heated area to prevent freezing.
Showerhead: Stainless steel, 8" diameter showerhead with a 20 gpm flow regulator.
Valve: 1" NPT rough chrome plated brass stay-open ball valve with a stainless steel push handle and a 100 mesh inline strainer.
Water Supply: 1" NPT female threaded brass inlet.
Piping: Supplied by others.
Universal Sign: ANSI compliant, vertical identification sign.
Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | 197 KB | |||
| | Low Activation High Capacity Heaters for use on Acorn Safety Shower Eye-Face Wash Combination featuring Chronomite Boxer® Heater [ERB-L_3P Series] | 901 KB | ||
| | Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/2018 | 5 MB | ||
| | Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 | 1 MB | ||
| | 177 KB | |||
 | | 170 KB |
Specifications
| Activation | Push Panel |
| Shower Type | Stainless Steel Showerhead, Wall Mounted Shower |
