All-Stainless Steel Horizontal Mount Safety Shower
Model S2200-AS is a horizontally mounted emergency shower with a stainless steel showerhead and a stainless steel 1" (25.4 mm) stay-open ball valve with a pull rod.

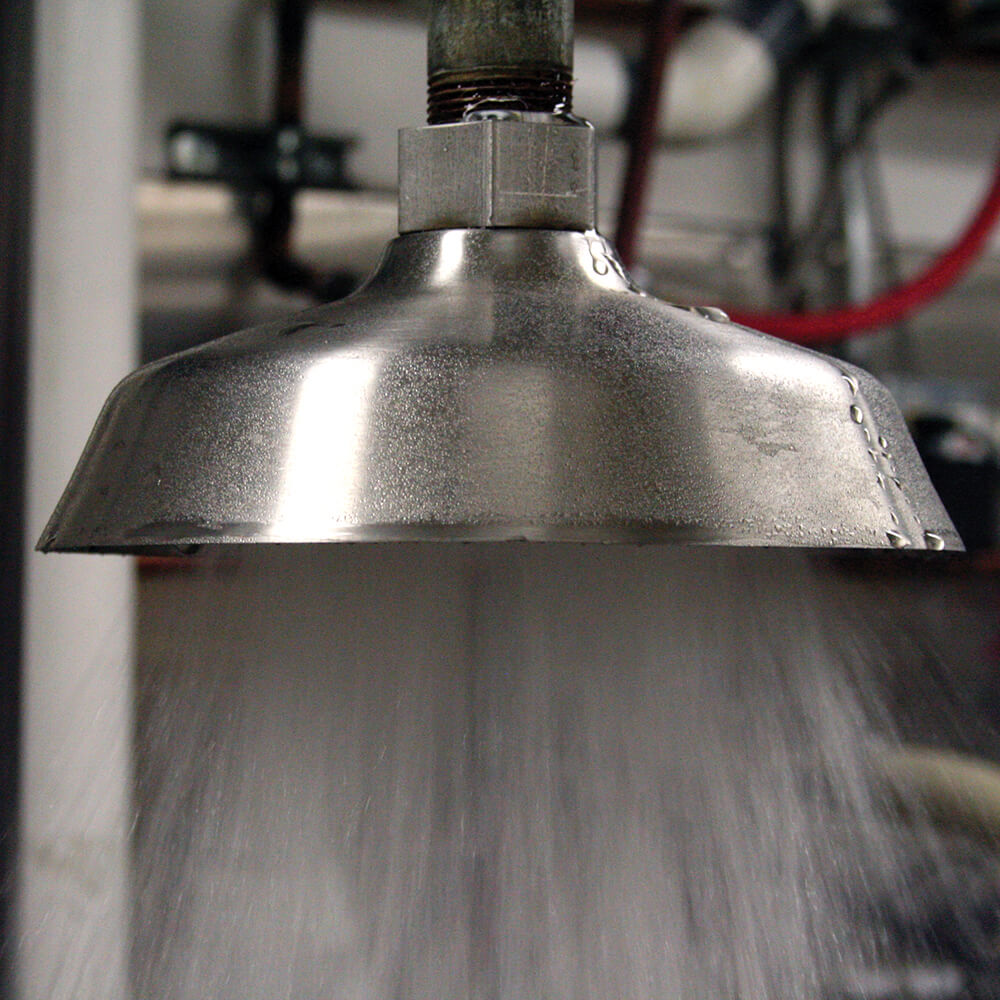

Showerhead: Stainless steel, 8" (203.2 mm) diameter showerhead with a 20 gallons (75.71 liters) per minute flow regulator.
Valve: 1" (25.4 mm) stainless steel stay-open ball valve. Unit is provided with a stainless steel actuator arm and a 29" (736.6 mm)stainless steel pull rod.
Water Supply: 1" NPT female threaded stainless steel inlet.
Piping: Schedule 40, 1" (25.4 mm) stainless steel pipe
Universal Sign: ANSI compliant, vertical identification sign.
Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | 233 KB | |||
| | 267 KB | |||
| | Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/2018 | 5 MB | ||
| | Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 | 1 MB | ||
 | | 239 KB | |||
 | | 280 KB |
Specifications
| Activation | Pull Rod |
| Shower Type | Stainless Steel Showerhead, Wall Mounted Shower |
| Features | Stainless Steel Piping |
