Stainless Steel Head, Horizontal Mount Safety Shower with Recessed Activation

In StockThis product is available for quick shipment nationwide.
Model S2200-RA
Installation Instructions
Manual S2200-RA, S3200-RA, S2100-PE21-RA Shower (pdf)
Submittal
Submittal S2200-RA Drench Shower (pdf)
Model S2200-RA

Stainless Steel Head, Horizontal Mount Safety Shower with Recessed Activation

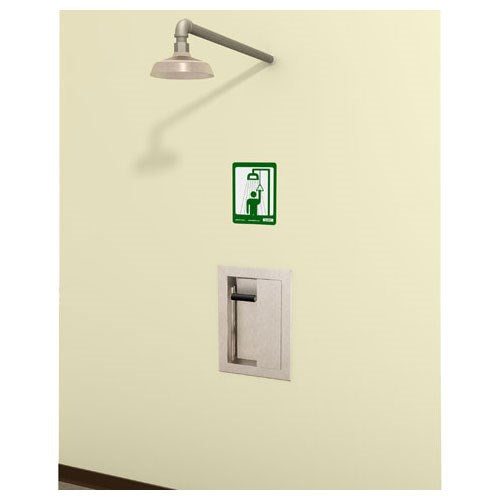

Model S2200-RA is a recessed activated, horizontally mounted emergency shower with a stainless steel showerhead.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S2200-RA, S3200-RA, S2100-PE21-RA Shower (pdf)
Stainless Steel Showerhead Safety Shower with Recessed Activation [2200-RA |Horizontal Mount Shower; S2160-PE21-RA | Vertical Mount Shower with 21-Inch Pipe Extension; S3200-RA | Flush Ceiling Shower] includes Option -AS | All-Stainless Steel1 MB
PDF icon
Submittals
PDF icon
Submittal S2200-RA Drench Shower (pdf)
Stainless Steel Head, Horizontal Mount Safety Shower with Recessed Activation162 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB

Specifications

Fixture TypeEmergency Shower
MountingHorizontal Mount
InstallationExposed
ActivationRecessed Actuator
Valve TypeStay-Open Ball Valve
Valve Size1"
Valve MaterialChrome Plated Brass
Valve EnclosureRecessed Stainless Steel, Vandal-Resistant Access Panel
Supply Inlet1" NPT
Flow Rate20 GPM
Flow Pressure30 PSI

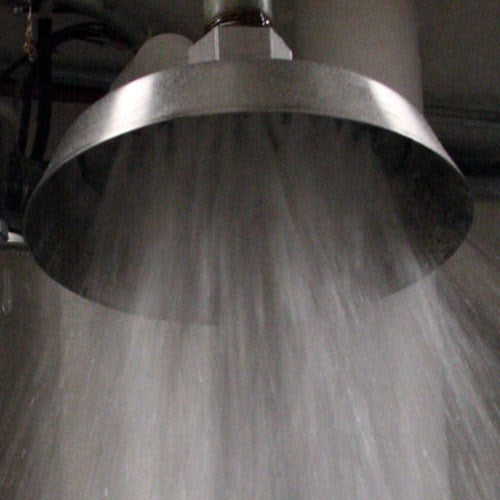

Showerhead MaterialStainless Steel
Showerhead Diameter8"
Piping MaterialGalvanized Steel
Piping FinishYellow Powder Coat
ComplianceANSI Z358.1
