Stainless Steel Head, Pedestal Mount Safety Shower

In StockThis product is available for quick shipment nationwide.
Model S2300
Installation Instructions
Manual S1300 and S2300 Showers (pdf)
Submittal
Submittal S2300 Drench Shower (pdf)
Model S2300

Stainless Steel Head, Pedestal Mount Safety Shower

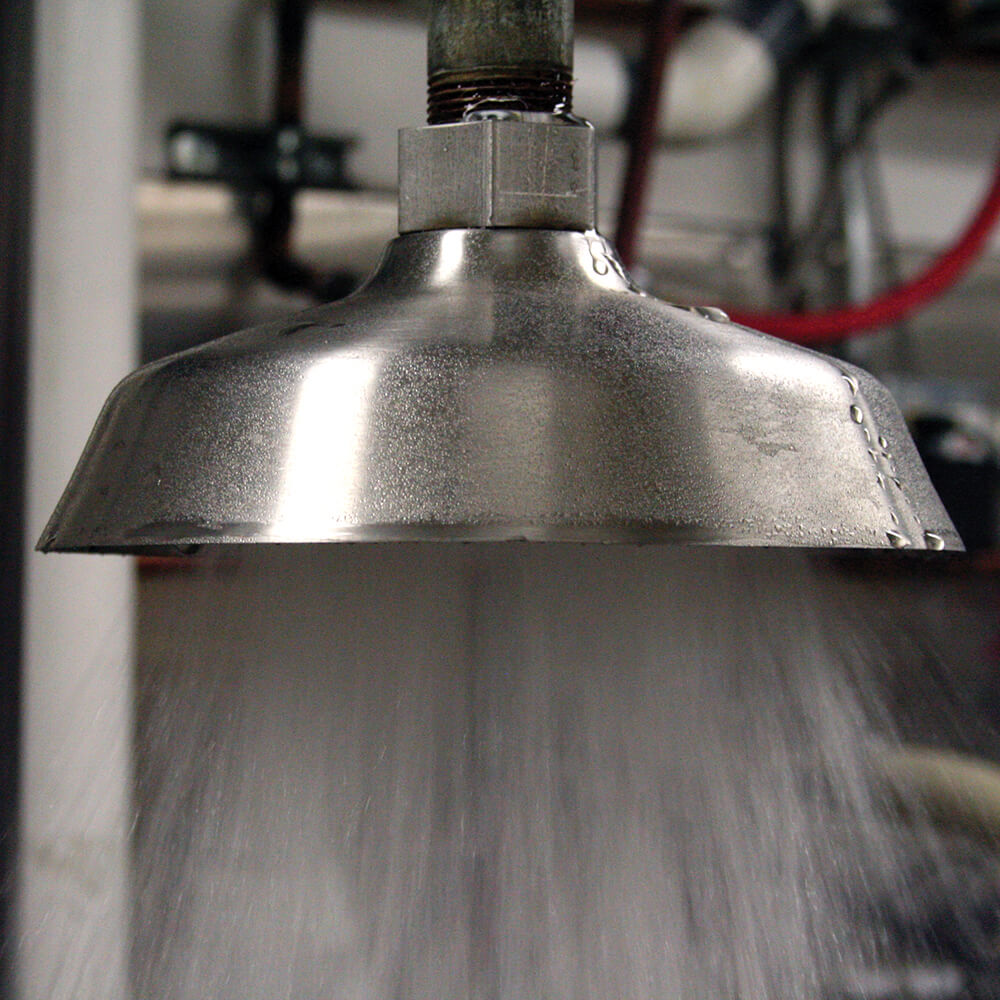

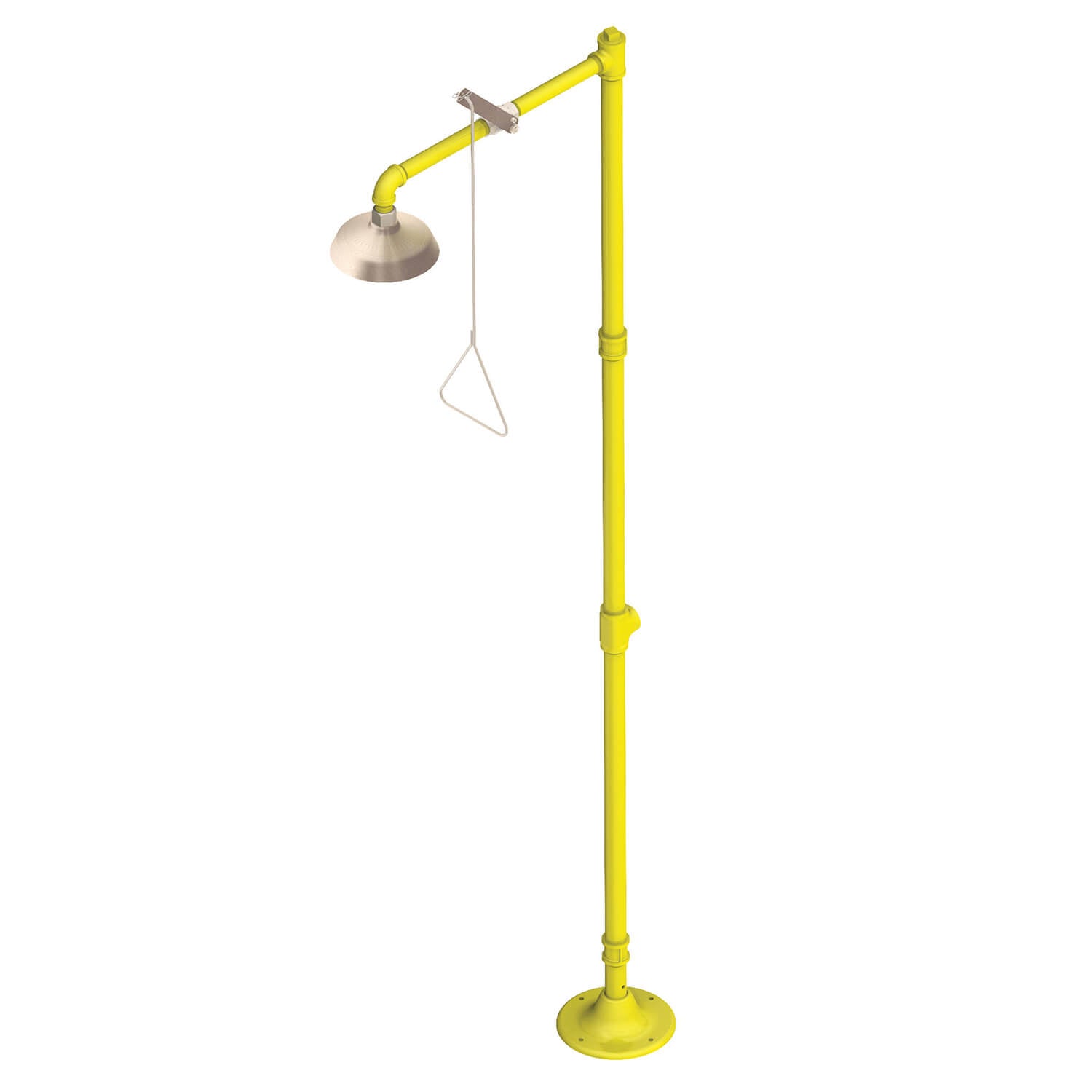

S2300 is a pedestal-mounted emergency shower with a stainless steel showerhead and a 1" (25.4 mm) stay-open ball valve with a pull rod.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S1300 and S2300 Showers (pdf)
Pedestal Mount Safety Shower [S1300 | Stainless Steel Showerhead; S2300 | Plastic Showerhead]884 KB
PDF icon
Submittals
PDF icon
Submittal S2300 Drench Shower (pdf)
Stainless Steel Head, Pedestal Mount Safety Shower289 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB

Specifications

Fixture TypeEmergency Shower
MountingPedestal Mount
InstallationExposed
ActivationPull Rod
Pull Rod Length29"
Valve TypeStay-Open Ball Valve
Valve Size1"
Valve MaterialChrome Plated Brass
Supply Inlet1-1/4" NPT
Flow Rate20 GPM
Flow Pressure30 PSI
Showerhead MaterialStainless Steel
Showerhead Diameter8"
Piping MaterialGalvanized Steel
Piping FinishYellow Powder Coat
Floor Flange9-1/8" Cast Iron
ComplianceANSI Z358.1
