Wall Mounted Eye-Face Wash Station with Shrouded Stainless Steel Bowl

In StockThis product is available for quick shipment nationwide.
Model S0480
Installation Instructions
Manual S0480, S0480-BF Eye-Face Wash (pdf)
Submittal
Submittal S0480 Eye-Face Wash (pdf)
Model S0480

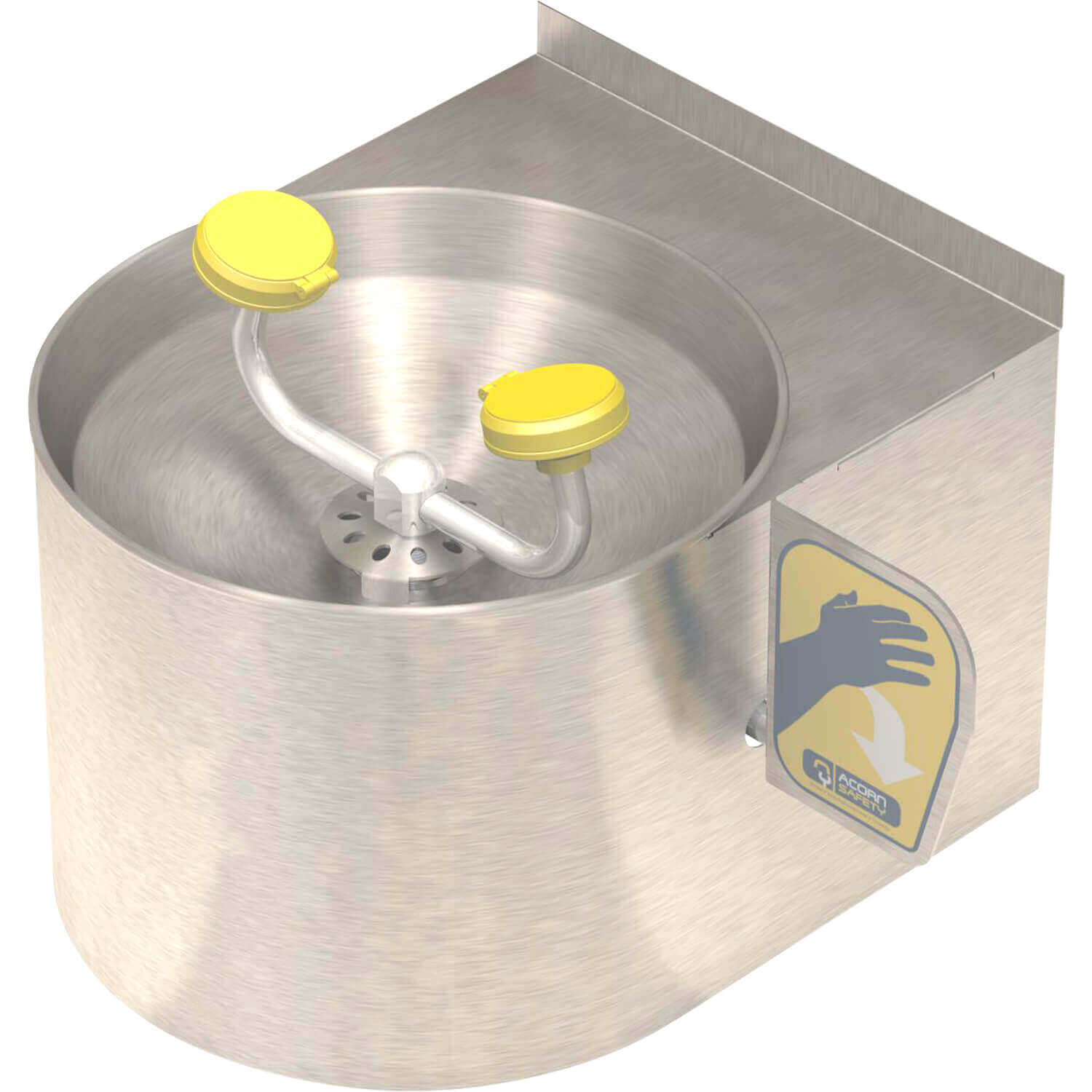

Wall Mounted Eye-Face Wash Station with Shrouded Stainless Steel Bowl

Model S0480 is a wall mounted eye-face wash, with a stainless steel bowl and shrouded wrap around skirt, ABS plastic eye-face wash spray heads, an inline strainer and a stay-open 1/2" ball valve with a push handle.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S0480, S0480-BF Eye-Face Wash (pdf)
Wall Mounted Eye-Face Wash Station with Shrouded Stainless Steel Bowl [S0480 - Standard; S0480-BF | Barrier-Free]609 KB
PDF icon
Submittals
PDF icon
Submittal S0480 Eye-Face Wash (pdf)
Wall Mounted Eye-Face Wash Station with Shrouded Stainless Steel Bowl1 MB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB

Specifications

Fixture TypeEye-Face Wash Station
MountingWall Mount
InstallationExposed
Eye-Face Wash ActivationPush Handle
Eye-Face Wash Valve TypeStay-Open Ball Valve
Eye-Face Wash Valve Size1/2"
Eye-Face Wash Valve MaterialChrome Plated Brass
Inline Strainer50 Mesh
Supply Inlet1/2" NPT
Waste Outlet1-1/4" OD Tailpiece
Eye-Face Wash BowlStainless Steel
Bowl Diameter11-3/4"
Shrouded BowlYes
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Antimicrobial Spray HeadsYes
ComplianceANSI Z358.1
