Deck Mount, Swivel Eye-Face Wash Station

In StockThis product is available for quick shipment nationwide.
Model S0960
Installation Instructions
Manual S0960 Eye-Face Wash (pdf)
Submittal
Submittal S0960 Eye-Face Wash (pdf)
Model S0960

Deck Mount, Swivel Eye-Face Wash Station

Model S0960 is a deck-mounted, swivel eye-face wash installed next to the sink (sink is not provided). The eye-face wash swings out horizontally over the sink from the specified side, and the water flow is activated automatically. The eye-face wash flow is terminated once the unit has been swung back into its original position for storage.

SPECIFY:
S0960-LH | Left Hand Configuration
S0960-RH | Right Hand Configuration

Universal Sign: ANSI-compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Sink and Counter: Sink and counter ARE NOT provided.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S0960 Eye-Face Wash (pdf)
Deck Mounted Swivel Eye-Face Wash Station712 KB
PDF icon
Submittals
PDF icon
Submittal S0960 Eye-Face Wash (pdf)
Deck Mount, Swivel Eye-Face Wash Station230 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB
ZIP icon
BIM/CAD/Revit
ZIP icon
Revit Drawings S0960-LH, S0960-RH Eye-Face Wash
940 KB
ZIP icon
BIM/CAD/Revit
ZIP icon
CAD Drawings S0960-LH, S0960-RH Eye-Face-Wash
728 KB

Specifications

Fixture TypeEye-Face Wash Station
MountingDeck Mount
InstallationBeside Sink
Eye-Face Wash ActivationSwivel
Eye-Face Wash Valve TypeSwivel Valve
Inline Strainer50 Mesh
Supply Inlet1/2" NPT
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Eye-Face Wash BowlNo Bowl

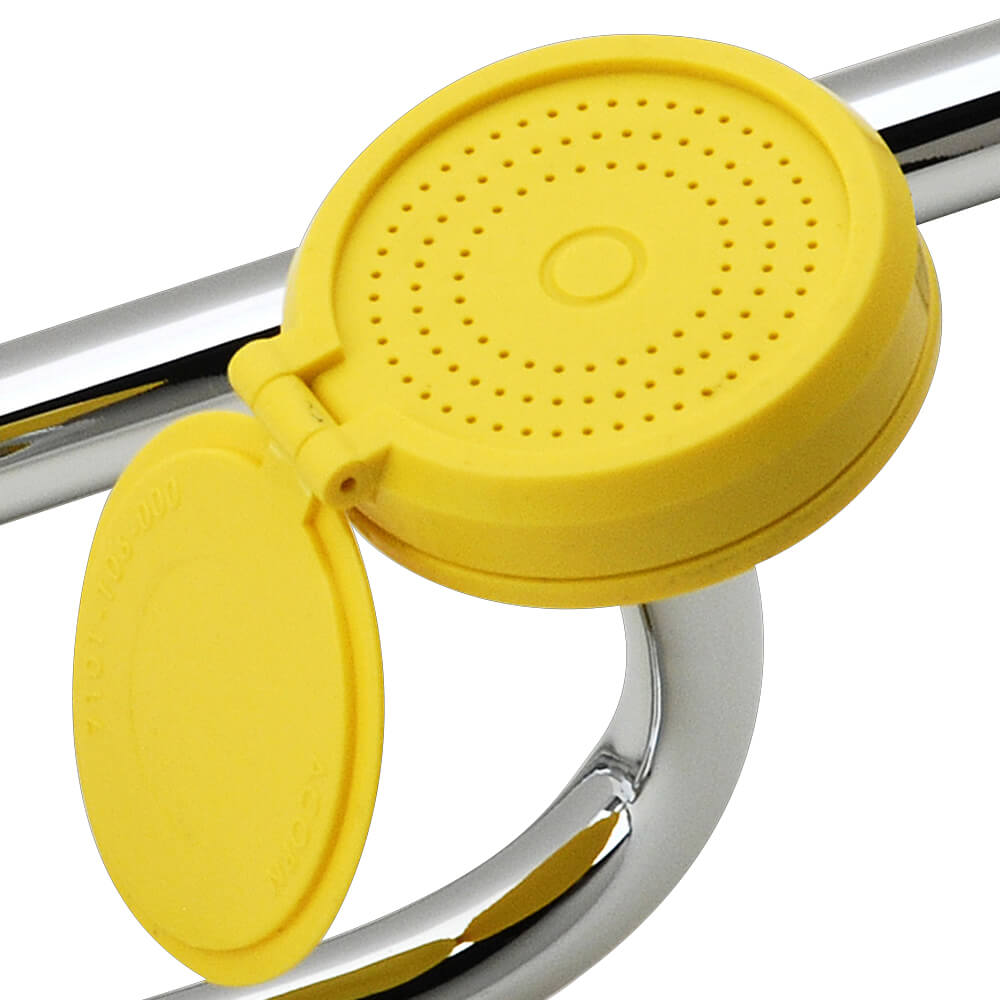

Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Hand ConfigurationLeft or Right
ComplianceANSI Z358.1

Models

S960-RH S0960-RH | Right Hand Configuration

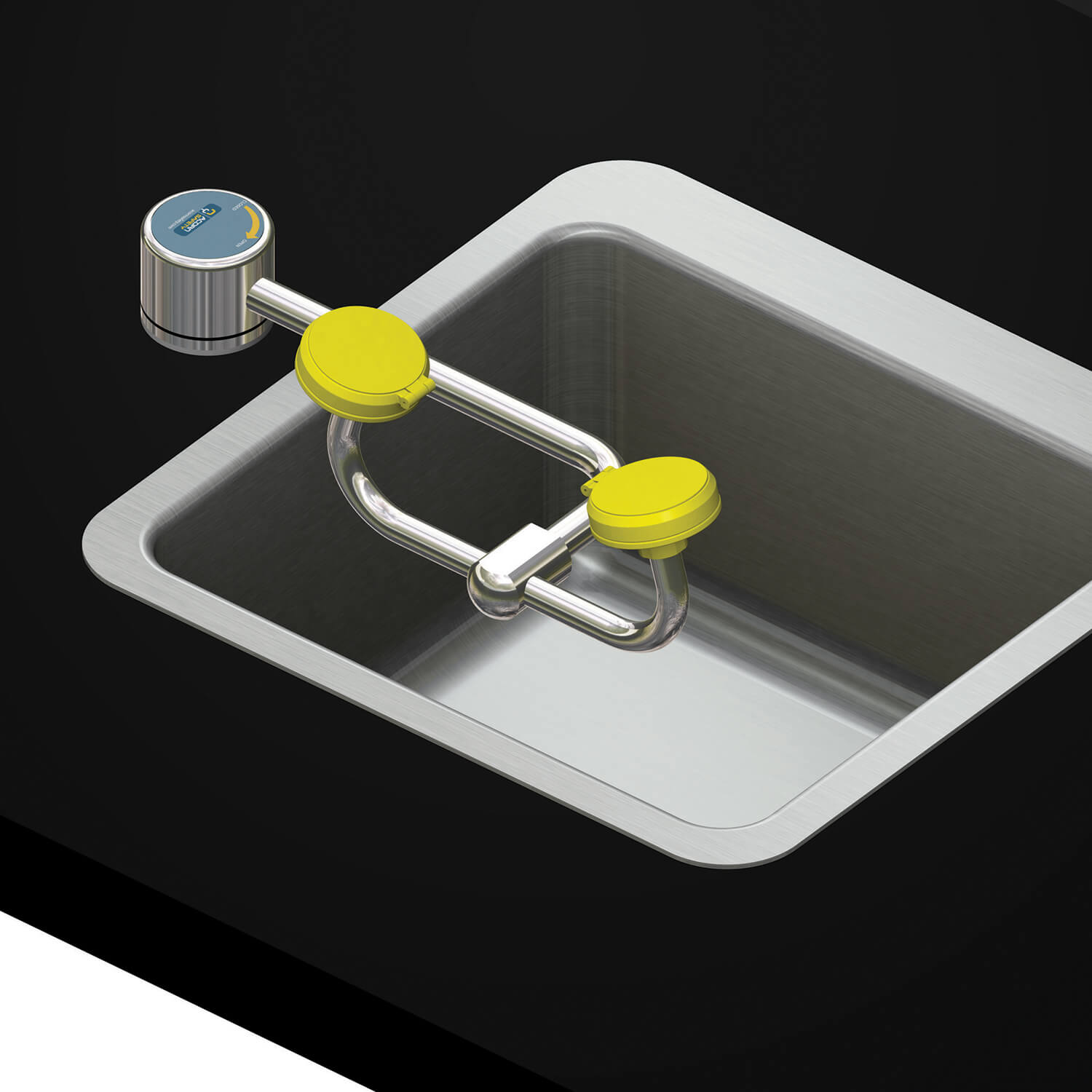

S0960-LH shown installed with bowl S0960-LH | Left Hand Configuration shown installed on counter with bowl (bowl and counter not supplied)
