Wall Mount, Swing Down Eye-Face Wash Station

In StockThis product is available for quick shipment nationwide.
Model S0660
Installation Instructions
Manual S0660, S0860 Eye-Face Wash (pdf)
Submittal
Submittal S0660 Eye-Face Wash (pdf)
Model S0660

Wall Mount, Swing Down Eye-Face Wash Station

Model S0660 Series is a wall-mounted, swing-down eye-face wash installed behind the sink (sink not included). The eye-face wash swings down over the sink from the rear, and the water flow is activated automatically. The eye-face wash flow is terminated once the unit has been swung back up into its original position for storage.

SPECIFY:
S0660-LH | Left Hand Configuration
S0660-RH | Right Hand Configuration

Universal Sign: ANSI-compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Sink and Counter: The sink and counter ARE NOT provided.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S0660, S0860 Eye-Face Wash (pdf)
Swing Down Eye-Face Wash Station [S0660 | Wall Mounted; S0860 | Deck Mounted]257 KB
PDF icon
Submittals
PDF icon
Submittal S0660 Eye-Face Wash (pdf)
Wall Mount, Swing Down Eye-Face Wash Station209 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB
RFA icon
BIM/CAD/Revit
RFA icon
S0660-RH Eye-Face Wash Revit Drawing
292 KB
ZIP icon
BIM/CAD/Revit
ZIP icon
S0660-RH Eye-Face Wash CAD Drawing
365 KB

Specifications

Fixture TypeEye-Face Wash Station
MountingWall Mount
InstallationBehind Sink
Eye-Face Wash ActivationSwing-Down
Eye-Face Wash Valve TypeSwing-Down Valve
Valve Enclosure304 Stainless Steel Valve Housing
Inline Strainer50 Mesh
Supply Inlet1/2" NPT
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Eye-Face Wash BowlNo Bowl
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Hand ConfigurationLeft or Right
ComplianceANSI Z358.1

Models

S0660-RH S0660-RH | Right Hand Configuration

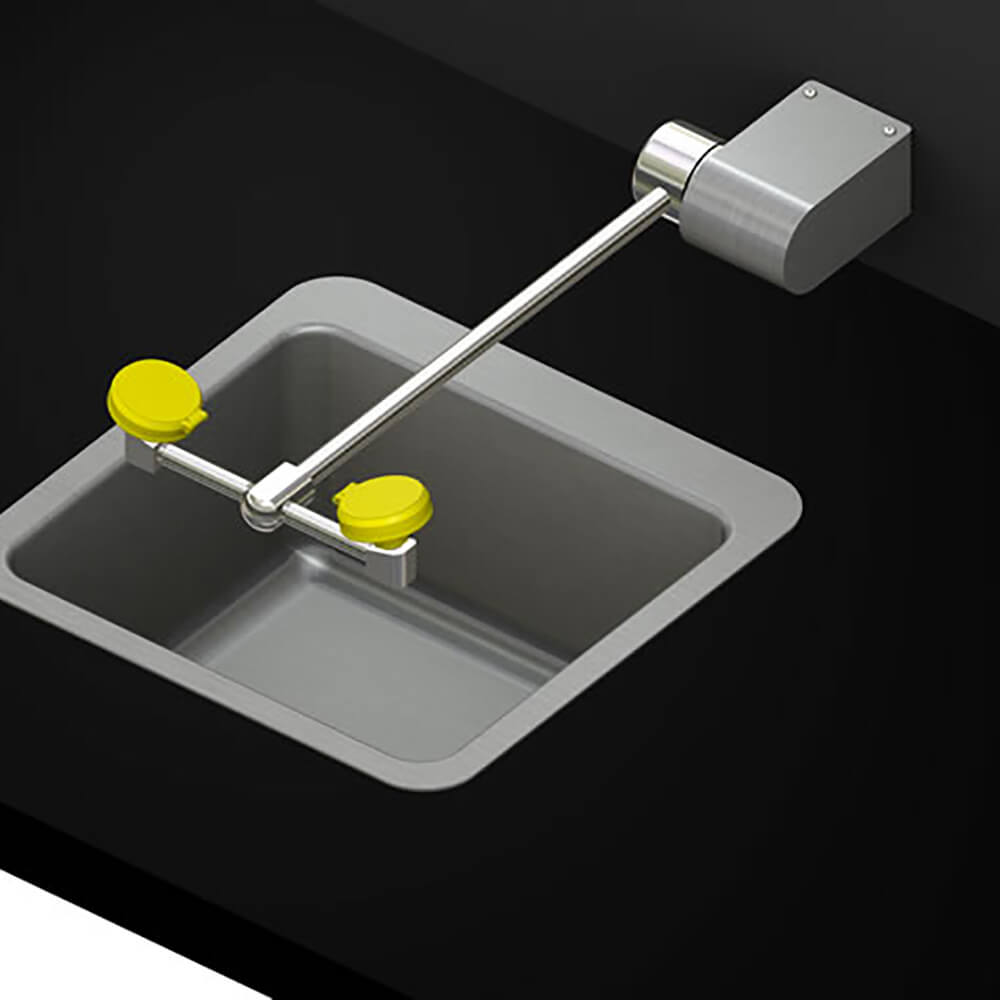

S0660-LH shown installed with bowl S0660-LH | Left Hand Configuration shown installed on wall with bowl (bowl and counter not supplied)
