Recessed, Swing-Down Eye-Face Wash Station

In StockThis product is available for quick shipment nationwide.
Model S0560
Installation Instructions
Manual S0560 Eye-Face Wash (pdf)
Submittal
Submittal S0560 Eye-Face Wash (pdf)
Model S0560

Recessed, Swing-Down Eye-Face Wash Station

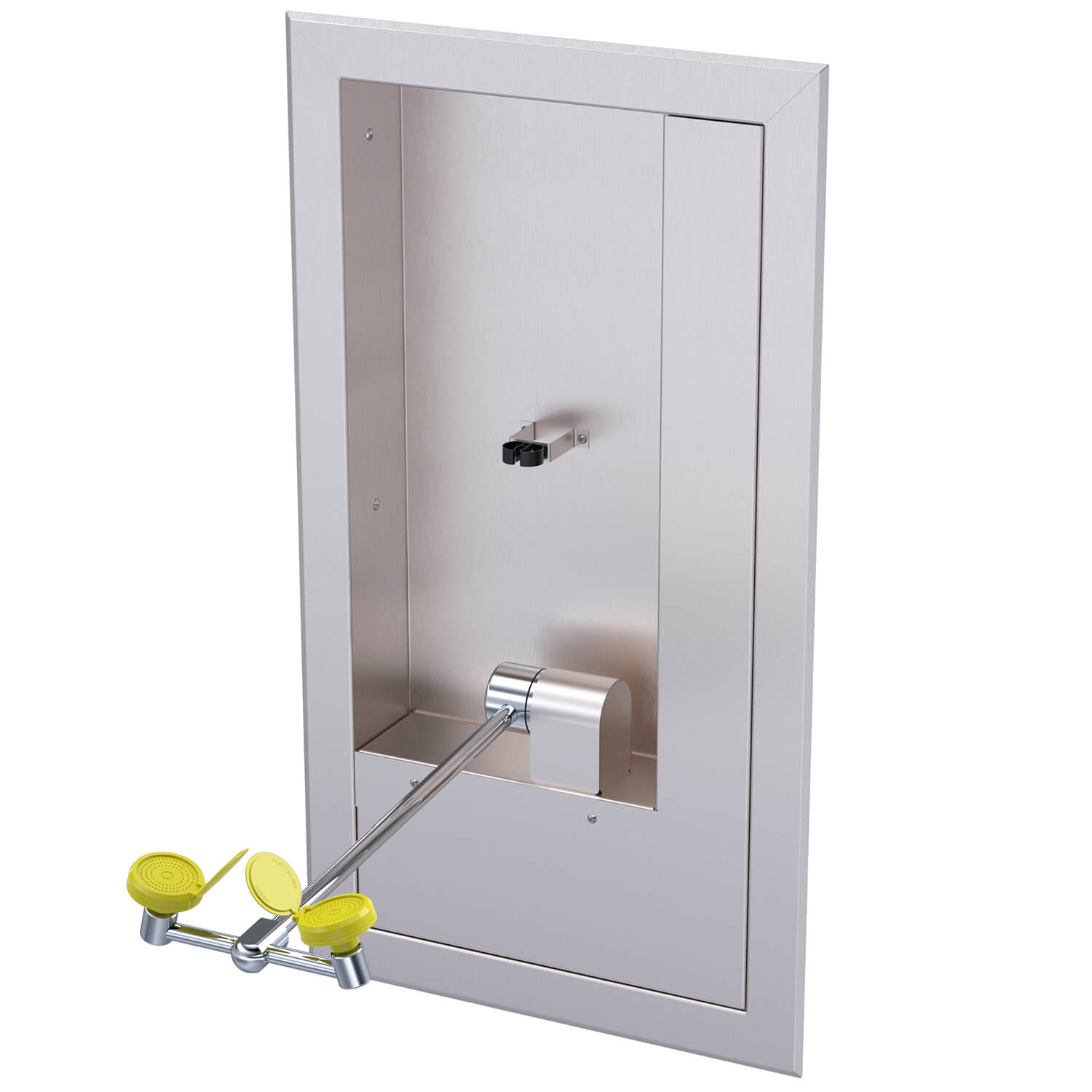

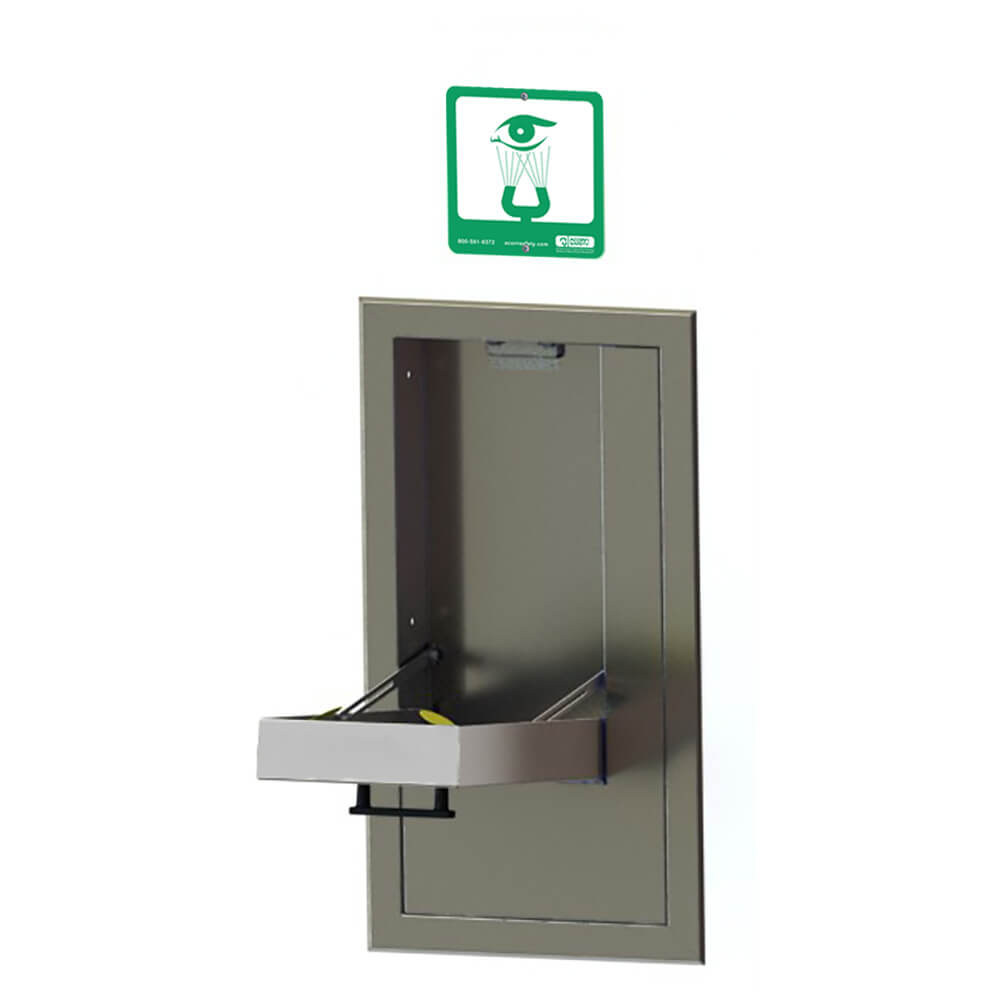

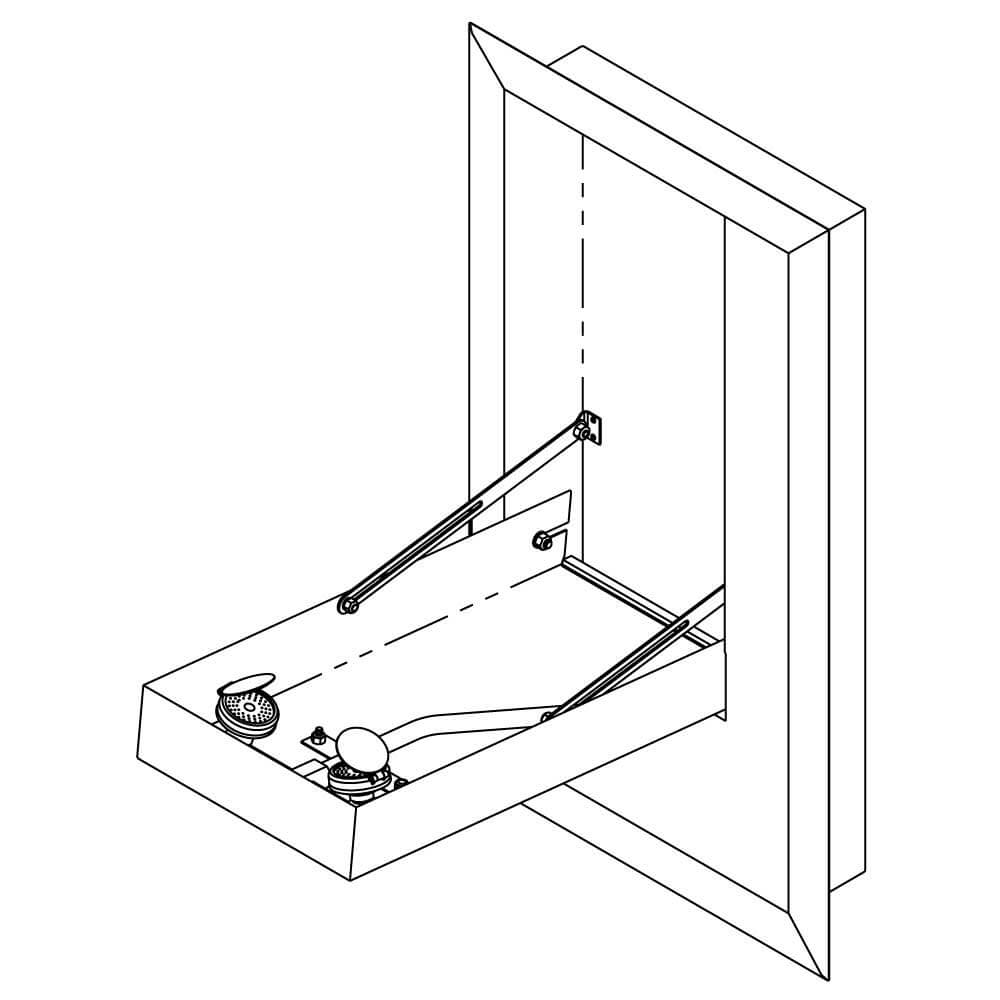

S0560 is a recessed, wall-mounted swing-down face and eye wash that is installed in the wall with a stainless steel cabinet and ABS plastic eye-face wash spray heads. The eye-face wash swings down horizontally and the water flow is activated automatically. The eye-face wash flow is terminated once the unit has been swung back up into the cabinet for storage.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A water proof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S0560 Eye-Face Wash (pdf)
Recessed, Swing-Down Eye-Face Wash Station517 KB
PDF icon
Submittals
PDF icon
Submittal S0560 Eye-Face Wash (pdf)
Recessed, Swing-Down Eye-Face Wash Station241 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB

Specifications

Fixture TypeEye-Face Wash Station
MountingWall Mount
InstallationRecessed
Eye-Face Wash ActivationSwing-Down
Eye-Face Wash Valve TypeSwing-Down Valve
Valve Enclosure18 Gauge Stainless Steel Cabinet
Inline Strainer50 Mesh
Supply Inlet1/2" NPT
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Eye-Face Wash BowlNo Bowl
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
ComplianceANSI Z358.1
