All-Stainless Steel Pedestal Mount Eye-Face Wash Station

In StockThis product is available for quick shipment nationwide.
Model S0340-AS
Installation Instructions
Manual S0320, S0340 Eye-Face Wash (pdf)
Submittal
Submittal S0340-AS Eye-Face Wash (pdf)
Model S0340-AS

All-Stainless Steel Pedestal Mount Eye-Face Wash Station

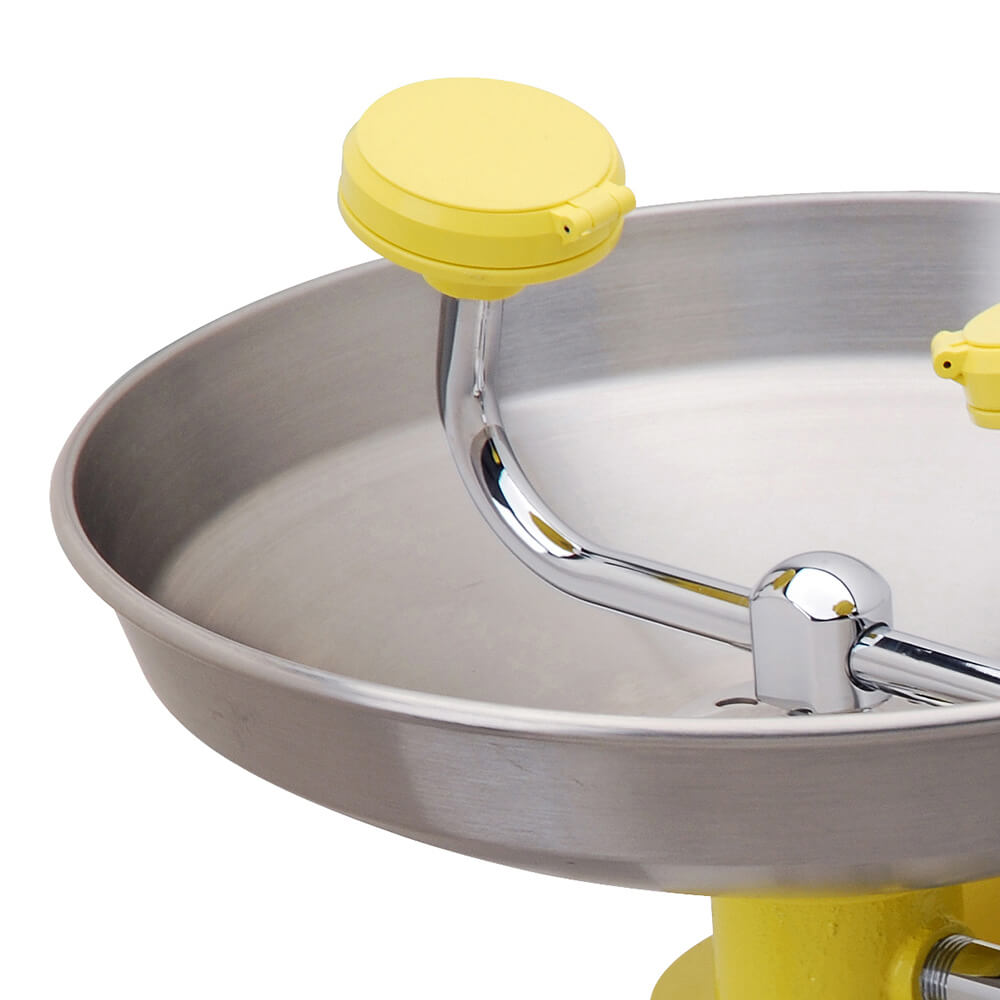

S0340-AS is a pedestal-mounted eye-face wash, with a stainless steel bowl, ABS plastic eye-face wash spray heads, an inline strainer, and a stainless steel stay-open 1/2" ball valve with a push handle.

Universal Sign: ANSI compliant, vertical identification sign

Weekly Test Tag: A water proof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S0320, S0340 Eye-Face Wash (pdf)
Pedestal Mount Eye-Face Wash Station [S0320 | Plastic Bowl; S340| Stainless Steel Bowl]924 KB
PDF icon
Submittals
PDF icon
Submittal S0340-AS Eye-Face Wash (pdf)
All-Stainless Steel Pedestal Mount Eye-Face Wash Station254 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB
RFA icon
BIM/CAD/Revit
RFA icon
S0340-AS Eye-Face Wash Revit Drawing
368 KB
ZIP icon
BIM/CAD/Revit
ZIP icon
S0340-AS Eye-Face Wash CAD Drawing
496 KB

Specifications

Fixture TypeEye-Face Wash Station
MountingPedestal Mount
InstallationExposed
Eye-Face Wash ActivationPush Handle
Eye-Face Wash Valve TypeStay-Open Ball Valve
Eye-Face Wash Valve Size1/2"
Eye-Face Wash Valve MaterialStainless Steel
Inline Strainer50 Mesh
Supply Inlet1/2" NPT
Waste Outlet1-1/4" NPT
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Eye-Face Wash BowlStainless Steel
Bowl Diameter11-3/4"
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Piping MaterialStainless Steel
Floor Flange4-5/8" Stainless Steel
ComplianceANSI Z358.1
