Deck Mount Eye-Face Wash Station with Stainless Steel Bowl

In StockThis product is available for quick shipment nationwide.
Model S0740
Installation Instructions
2 available
Submittal
2 available
Model S0740

Deck Mount Eye-Face Wash Station with Stainless Steel Bowl

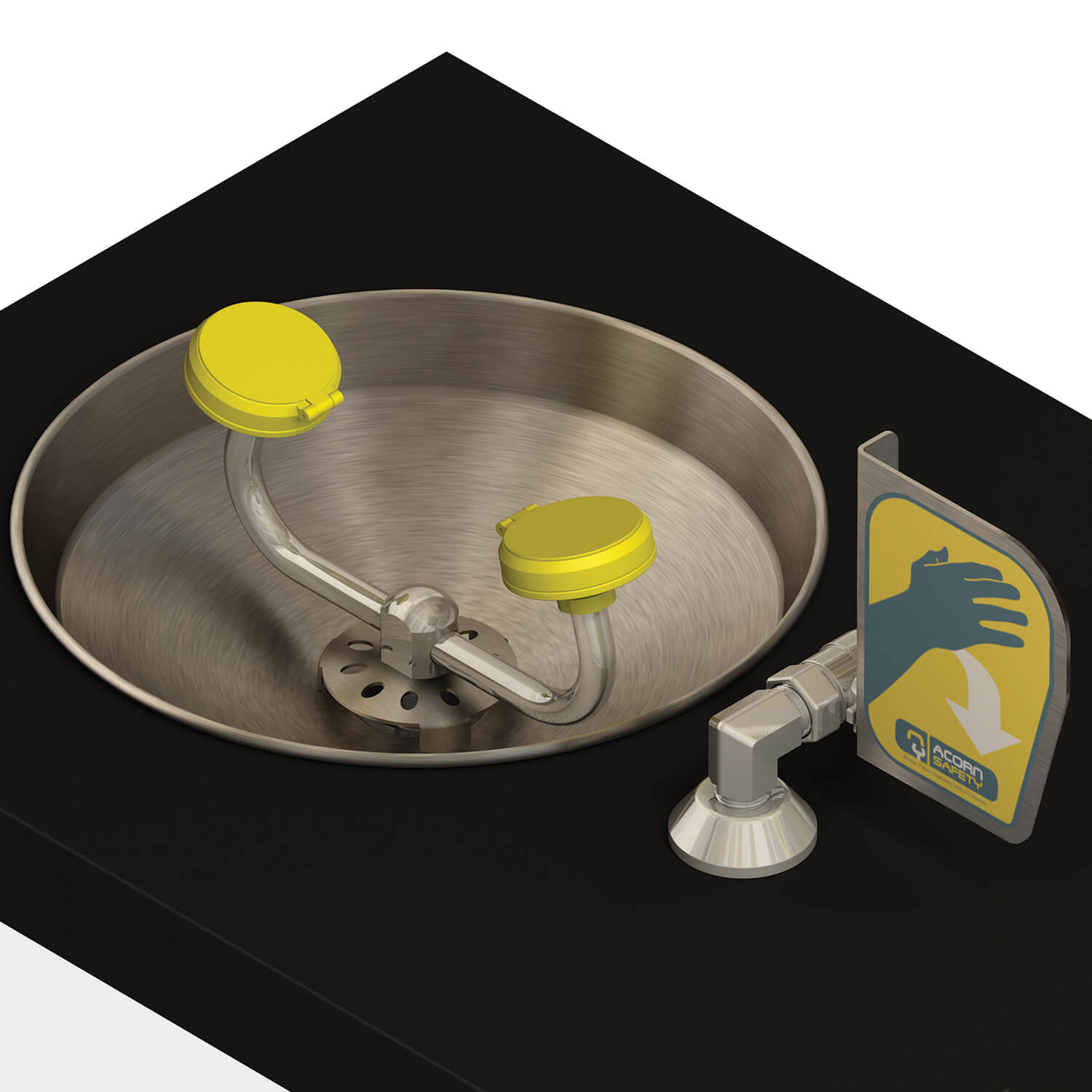

S0740 is a deck-mounted eye-face wash, with a stainless steel bowl, ABS plastic eye-face wash spray heads, an inline strainer, and a stay-open 1/2" ball valve with a push handle.

Universal Sign: ANSI-compliant, vertical identification sign

Weekly Test Tag: A waterproof test card to record the unit's date and inspector's name for weekly functional testing.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S0740 Eye-Face Wash (pdf)
Deck Mounted Drench Hose with Push Panel Activation927 KB
PDF icon
Submittals
PDF icon
Submittal S0740 Eye-Face Wash (pdf)
Deck Mount Eye-Face Wash Station with Stainless Steel Bowl, Push Panel Activation297 KB
PDF icon
Submittals
PDF icon
Submittal S0740-PDV Eye-Face Wash (pdf)

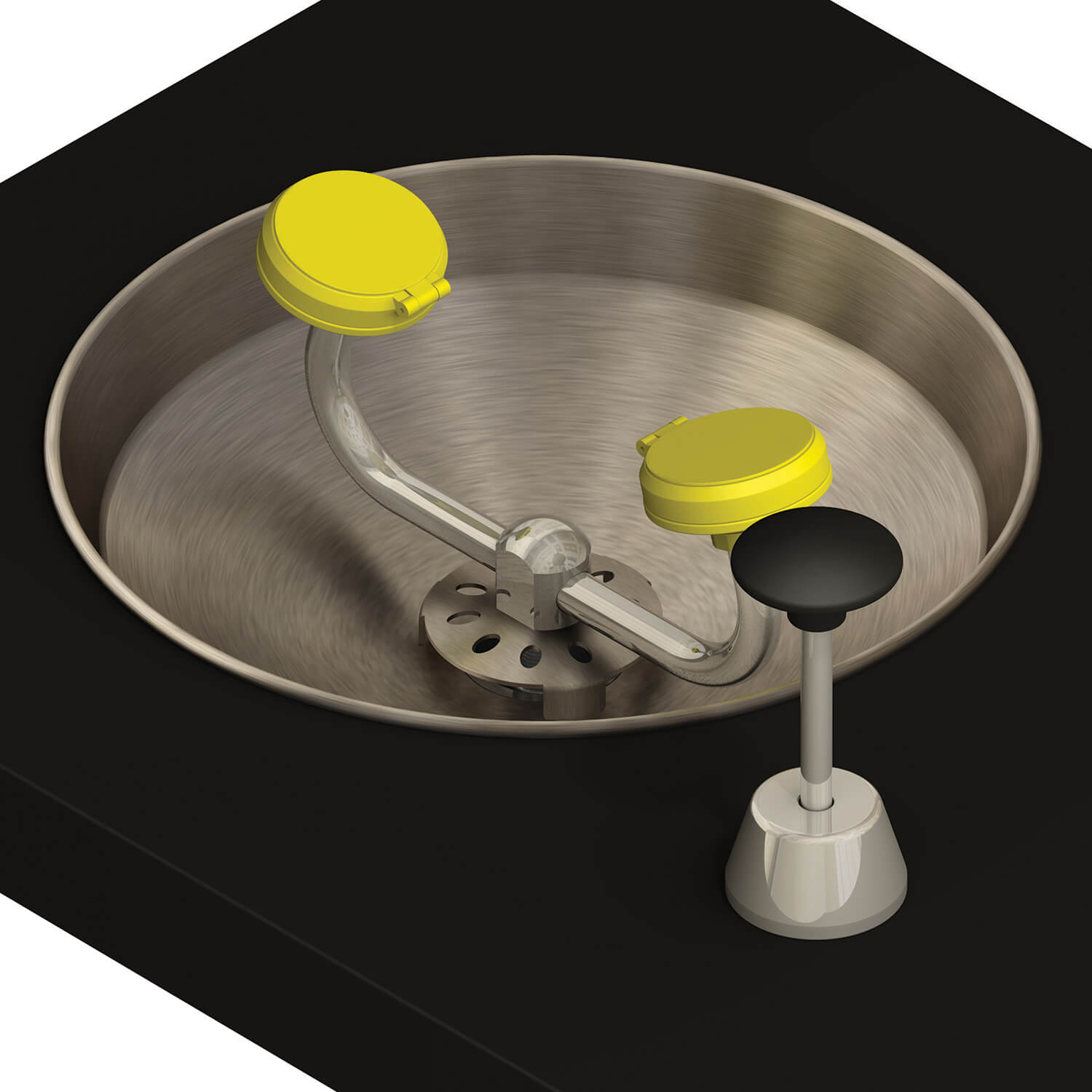

Deck Mount Eye-Face Wash Station with Stainless Steel Bowl, Push Down Valve Activation270 KB
PDF icon
Installation Instructions
PDF icon
Manual S0740-PDV Eye-Face Wash (pdf)
Deck Mounted Drench Hose with Push Down Valve Activation1 MB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB

Specifications

Fixture TypeEye-Face Wash Station
MountingDeck Mount
InstallationCountertop
Eye-Face Wash ActivationPush Handle
Eye-Face Wash Valve TypeStay-Open Ball Valve
Eye-Face Wash Valve Size1/2"
Eye-Face Wash Valve MaterialChrome Plated Brass
Inline Strainer50 Mesh
Supply Inlet1/2" NPT
Waste Outlet1-1/4" OD Tailpiece
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Eye-Face Wash BowlStainless Steel
Bowl Diameter11-3/4"
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
ComplianceANSI Z358.1
