Wall Mount Eye-Face Wash Station without Bowl

In StockThis product is available for quick shipment nationwide.
Model S0460
Installation Instructions
Manual S0460 Eye-Face Wash (pdf)
Submittal
Submittal S0460 Eye-Face Wash (pdf)
Model S0460

Wall Mount Eye-Face Wash Station without Bowl

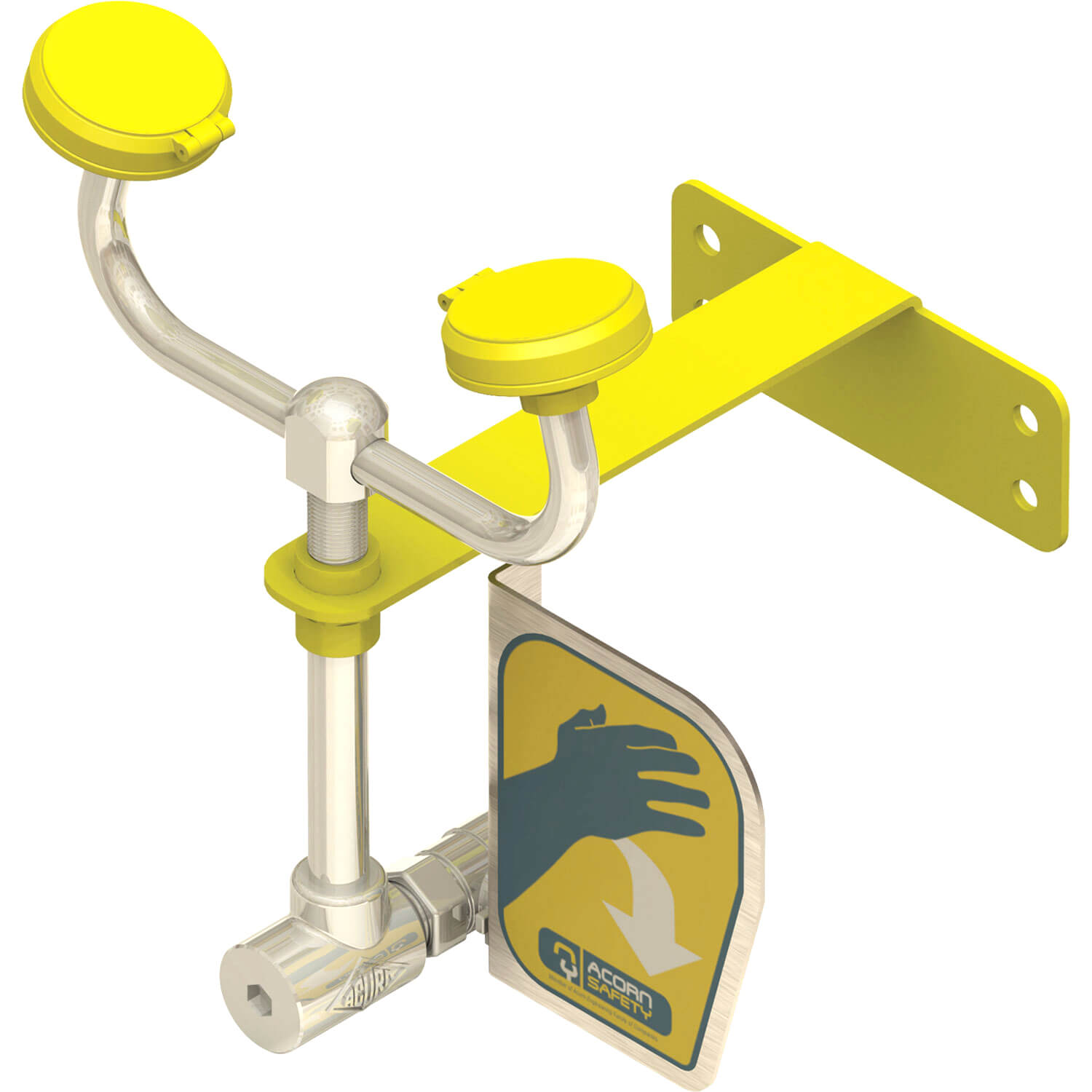

Model S0460 is a wall-mounted face and eye wash, less the bowl, with ABS plastic eye-face wash spray heads, an inline strainer, and a stay-open 1/2" ball valve with a push handle

Universal Sign: ANSI compliant, vertical identification sign

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
DOC icon
Product MasterSpec
DOC icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
170 KB
PDF icon
Installation Instructions
PDF icon
Manual S0460 Eye-Face Wash (pdf)
Wall Mount Eye-Face Wash Station without Bowl762 KB
PDF icon
Submittals
PDF icon
Submittal S0460 Eye-Face Wash (pdf)
Wall Mount Eye-Face Wash Station without Bowl291 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB
PDF icon
Product MasterSpec
PDF icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
177 KB

Specifications

Fixture TypeEye-Face Wash Station
MountingWall Mount
InstallationExposed
Eye-Face Wash ActivationPush Handle
Eye-Face Wash Valve TypeStay-Open Ball Valve
Eye-Face Wash Valve Size1/2"
Eye-Face Wash Valve MaterialChrome Plated Brass
Inline Strainer50 Mesh
Supply Inlet1/2" NPT
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Eye-Face Wash BowlNo Bowl
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Wall Bracket11 Gauge Galvanized Steel, Yellow Powder Coat
ComplianceANSI Z358.1
