Barrier-Free, Stainless Steel Bowl, Wall Mount Eye-Face Wash Station

In StockThis product is available for quick shipment nationwide.
Model S0440-BF
Installation Instructions
Manual S0420-BF, S0440-BF Eye-Face Wash (pdf)
Submittal
Submittal S0440-BF Eye-Face Wash (pdf)
Model S0440-BF

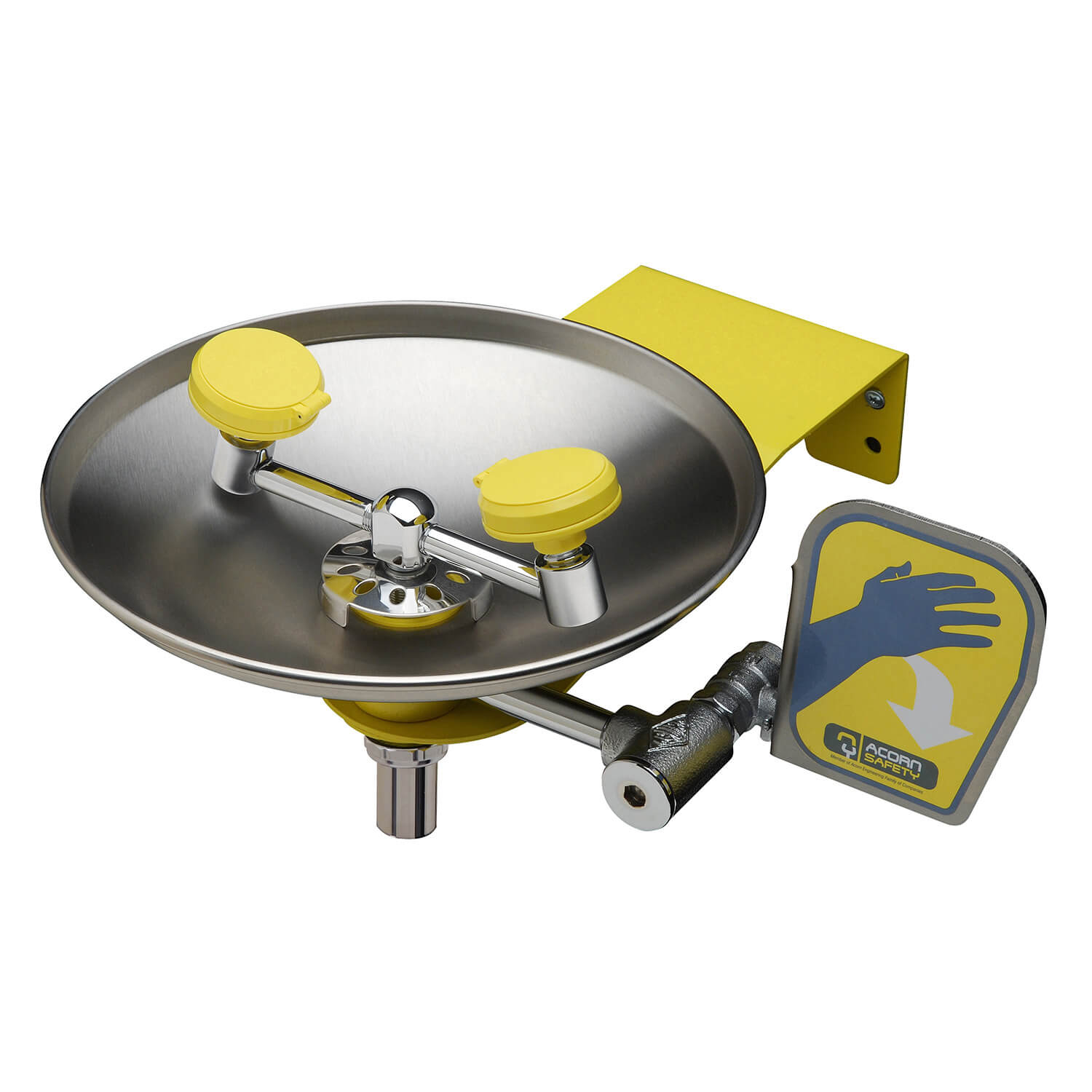

Barrier-Free, Stainless Steel Bowl, Wall Mount Eye-Face Wash Station

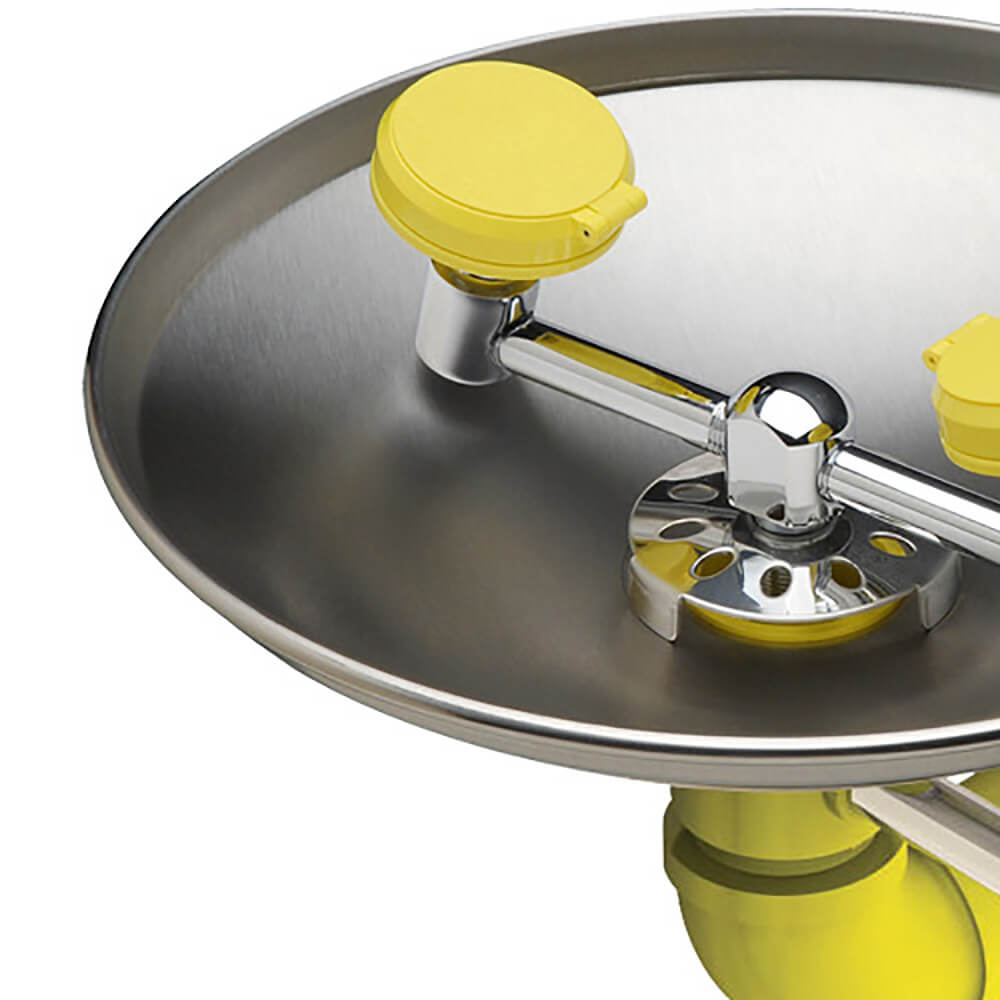

S0440-BF is a barrier-free wall-mounted face and eye wash, with a stainless steel bowl, ABS plastic eye-face wash spray heads, an inline strainer, and a stay-open 1/2" ball valve with a push handle.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A water proof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
DOC icon
Product MasterSpec
DOC icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
170 KB
PDF icon
Installation Instructions
PDF icon
Manual S0420-BF, S0440-BF Eye-Face Wash (pdf)
Barrier-Free, Wall Mount Eye-Face Wash Station [S420-BF | Plastic Bowl; S440-BF | Stainless Steel Bowl]1 MB
PDF icon
Submittals
PDF icon
Submittal S0440-BF Eye-Face Wash (pdf)
Barrier-Free, Stainless Steel Bowl, Wall Mount Eye-Face Wash Station312 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB
PDF icon
Product MasterSpec
PDF icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
177 KB
RFA icon
BIM/CAD/Revit
RFA icon
S0440-BF Eye-Face Wash Revit Drawing
336 KB
ZIP icon
BIM/CAD/Revit
ZIP icon
S0440-BF Eye-Face Wash CAD Drawing
402 KB

Specifications

Fixture TypeEye-Face Wash Station
MountingWall Mount
InstallationExposed
Eye-Face Wash ActivationPush Handle
Eye-Face Wash Valve TypeStay-Open Ball Valve
Eye-Face Wash Valve Size1/2"
Eye-Face Wash Valve MaterialChrome Plated Brass
Inline Strainer50 Mesh
Supply Inlet1/2" NPT
Waste Outlet1-1/4" OD Tailpiece
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Eye-Face Wash BowlStainless Steel
Bowl Diameter11-3/4"
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Wall Bracket11 Gauge Galvanized Steel, Yellow Powder Coat
Barrier-FreeYes
ComplianceANSI Z358.1
ADAConforms (2010 ADA Standards 306, 308)
