Barrier-Free, Plastic Bowl, Pedestal Mount Eye-Face Wash Station

In StockThis product is available for quick shipment nationwide.
Model S0320-BF
Installation Instructions
Manual S0320-BF, S0340-BF Eye-Face Wash (pdf)
Submittal
Submittal S0320-BF Eye-Face Wash (pdf)
Model S0320-BF

Barrier-Free, Plastic Bowl, Pedestal Mount Eye-Face Wash Station

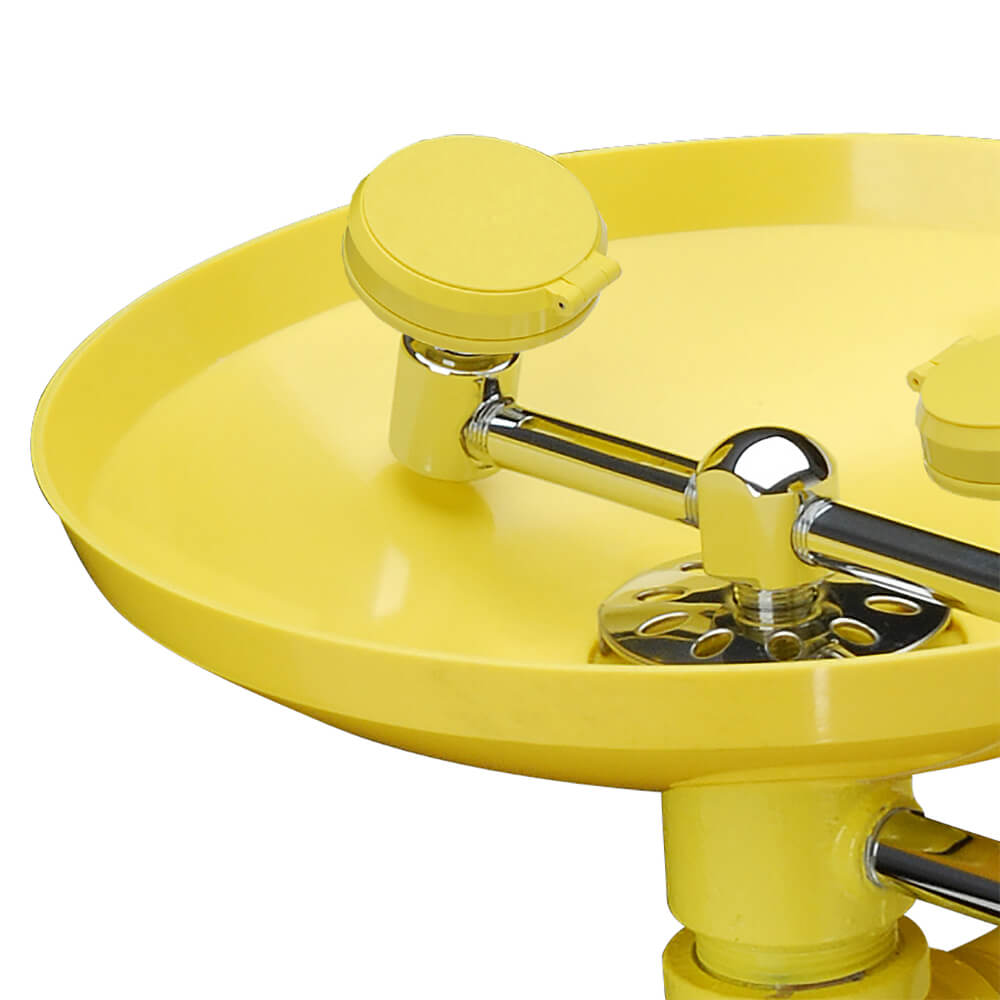

S0320-BF is a barrier-free pedestal mounted eye-face wash, with a plastic bowl, ABS plastic eye-face wash spray heads, an inline strainer, and a stay-open 1/2" ball valve with a push handle.

Universal Sign: ANSI compliant, vertical identification sign

Weekly Test Tag: A water proof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
DOC icon
Product MasterSpec
DOC icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
170 KB
PDF icon
Installation Instructions
PDF icon
Manual S0320-BF, S0340-BF Eye-Face Wash (pdf)
Barrier-Free, Pedestal Mount Eye-Face Wash Station [S0320-BF | Plastic Bowl; S340-BF | Stainless Steel Bowl]877 KB
PDF icon
Submittals
PDF icon
Submittal S0320-BF Eye-Face Wash (pdf)
Barrier-Free, Plastic Bowl, Pedestal Mount Eye-Face Wash Station284 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB
PDF icon
Product MasterSpec
PDF icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
177 KB

Specifications

Fixture TypeEye-Face Wash Station
MountingPedestal Mount
InstallationExposed
Eye-Face Wash ActivationPush Handle
Eye-Face Wash Valve TypeStay-Open Ball Valve
Eye-Face Wash Valve Size1/2"
Eye-Face Wash Valve MaterialChrome Plated Brass
Inline Strainer50 Mesh
Supply Inlet1/2" NPT
Waste Outlet1-1/4" NPT
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Eye-Face Wash BowlABS Plastic
Bowl Diameter11-3/4"
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Piping MaterialGalvanized Steel
Piping FinishYellow Powder Coat
Floor Flange9-1/8" Cast Iron
Barrier-FreeYes
ComplianceANSI Z358.1
ADAConforms (2010 ADA Standards 306, 308)
