Faucet Mounted Emergency Eyewash Station Adapter Kit

In StockThis product is available for quick shipment nationwide.
Model S0000-FME
Installation Instructions
Install Guide S0000-FME Eyewash (pdf)
Submittal
Submittal S0000-FME Eyewash Kit (pdf)
Model S0000-FME

Faucet Mounted Emergency Eyewash Station Adapter Kit

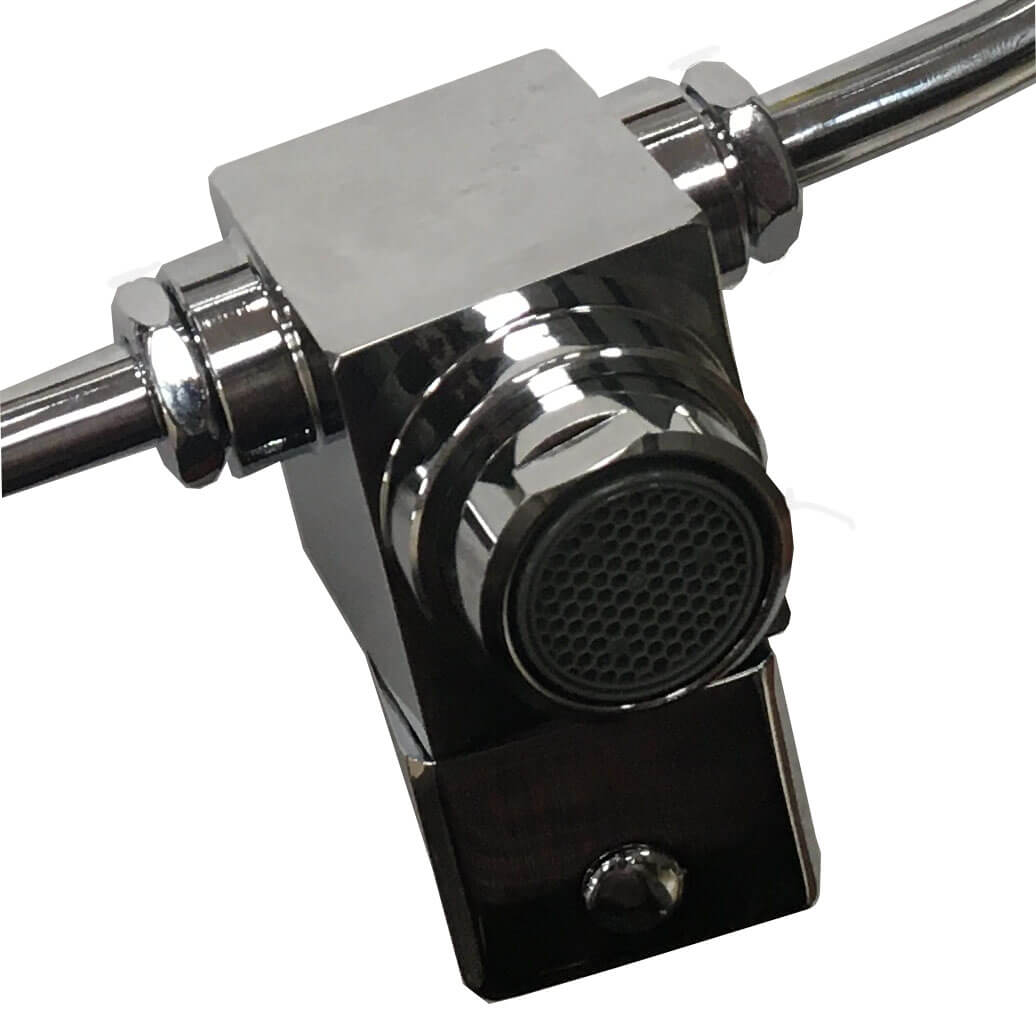

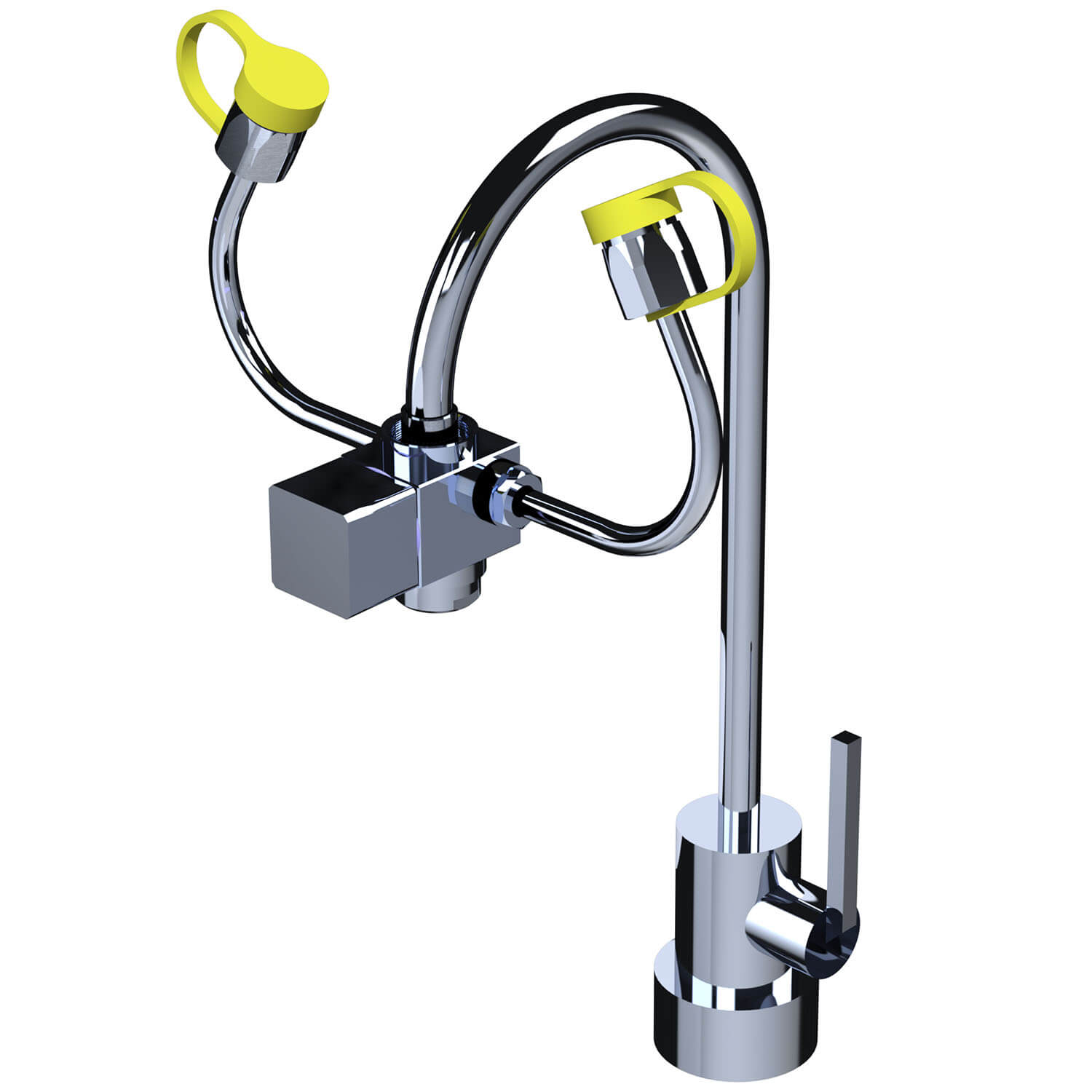

Model S0000-FME is a faucet mounted eyewash that provides an economical eyewash alternative. May be used with various styles of faucets. Activation is accomplished with a forward-mounted cube-shaped diverter handle. Operates from 30-90 psi. Twin eyewash heads with protective plastic caps are provided.

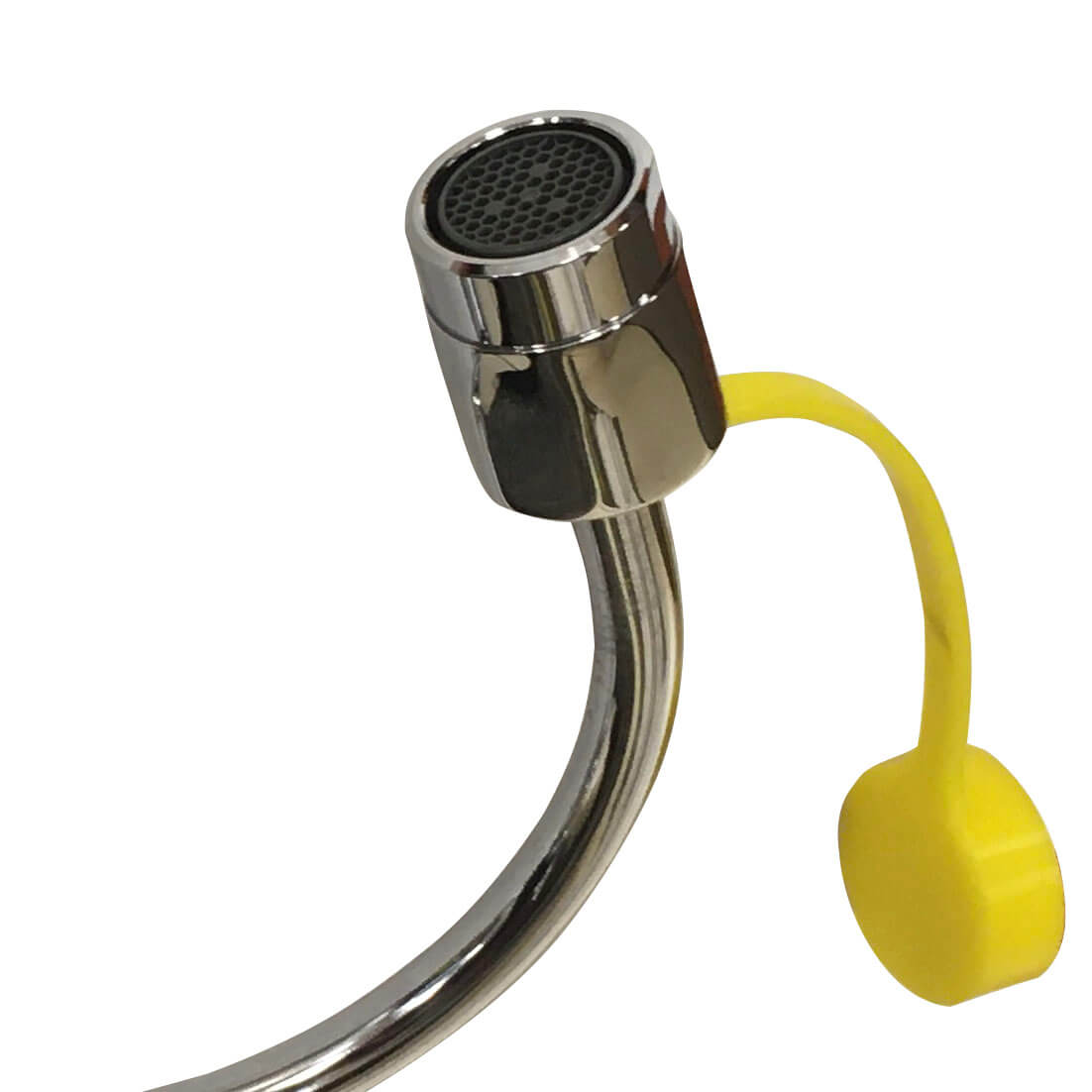

All pipe and fittings are constructed from chrome plated brass. Adjustable eyewash head included with pop off dust covers. 55/64"-27 female thread faucet connection is provided as standard.

The eyewash assembly measure 7-1/2" (190 mm) wide and 5-1/4" (133.35 mm) maximum height.

Note: This fixture does not conform with ANSI Z358.1 requirements and is only intended as a supplement to a code compliant, plumbed eye-wash device.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Install Guide S0000-FME Eyewash (pdf)
Faucet-Mounted Emergency Eyewash Station Adapter Kit233 KB
PDF icon
Submittals
PDF icon
Submittal S0000-FME Eyewash Kit (pdf)
Faucet-Mounted Emergency Eyewash Station Adapter Kit533 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB

Specifications

Fixture TypeFaucet-Mounted Eyewash
MountingFaucet Mount
Eye-Face Wash ActivationDiverter Handle
Supply Inlet55/64"-27 Female Faucet Connection
Operating Pressure30-90 PSI
Spray Head TypeEyewash
Piping MaterialChrome Plated Brass
ComplianceNot ANSI Z358.1 Compliant (Supplemental Use Only)
