Portable Gravity-Fed Emergency Eyewash Station

In StockThis product is available for quick shipment nationwide.
Model S0P50
Installation Instructions
2 available
Submittal
Submittal S0P50 Eyewash (pdf)
Model S0P50

Portable Gravity-Fed Emergency Eyewash Station

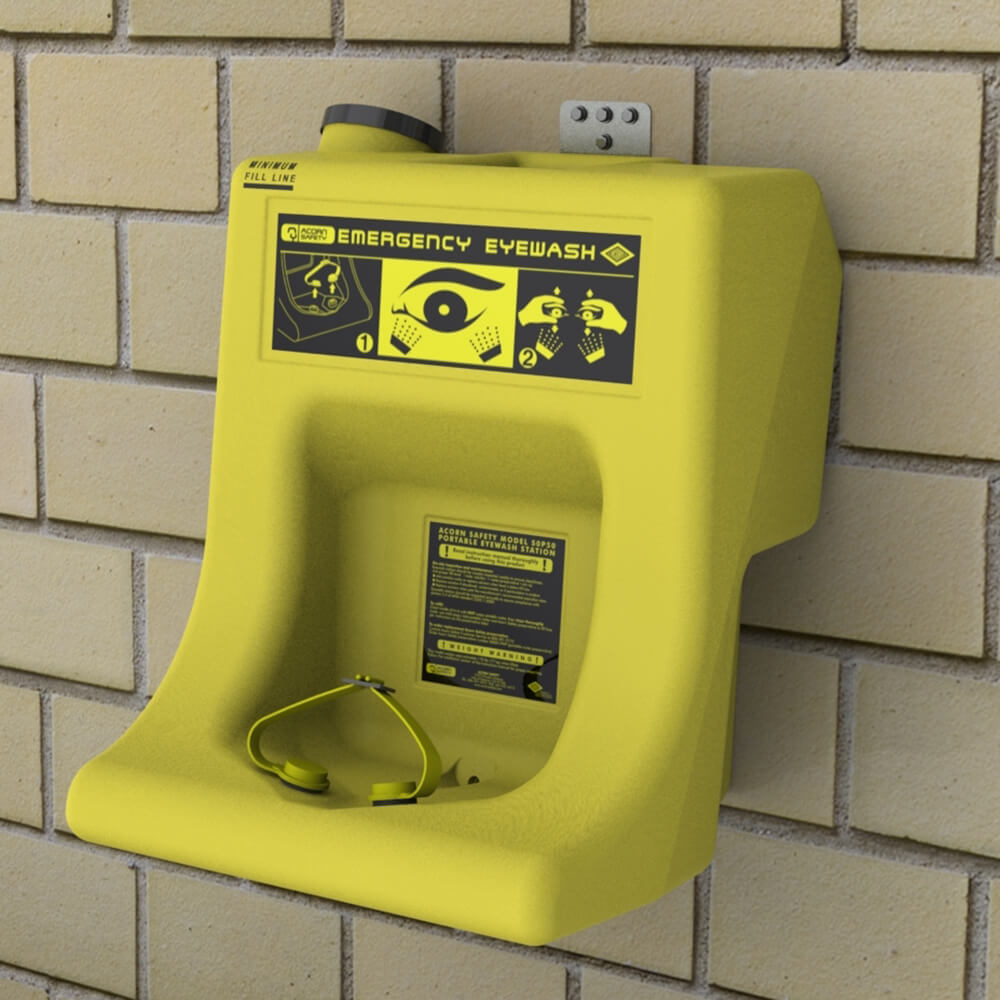

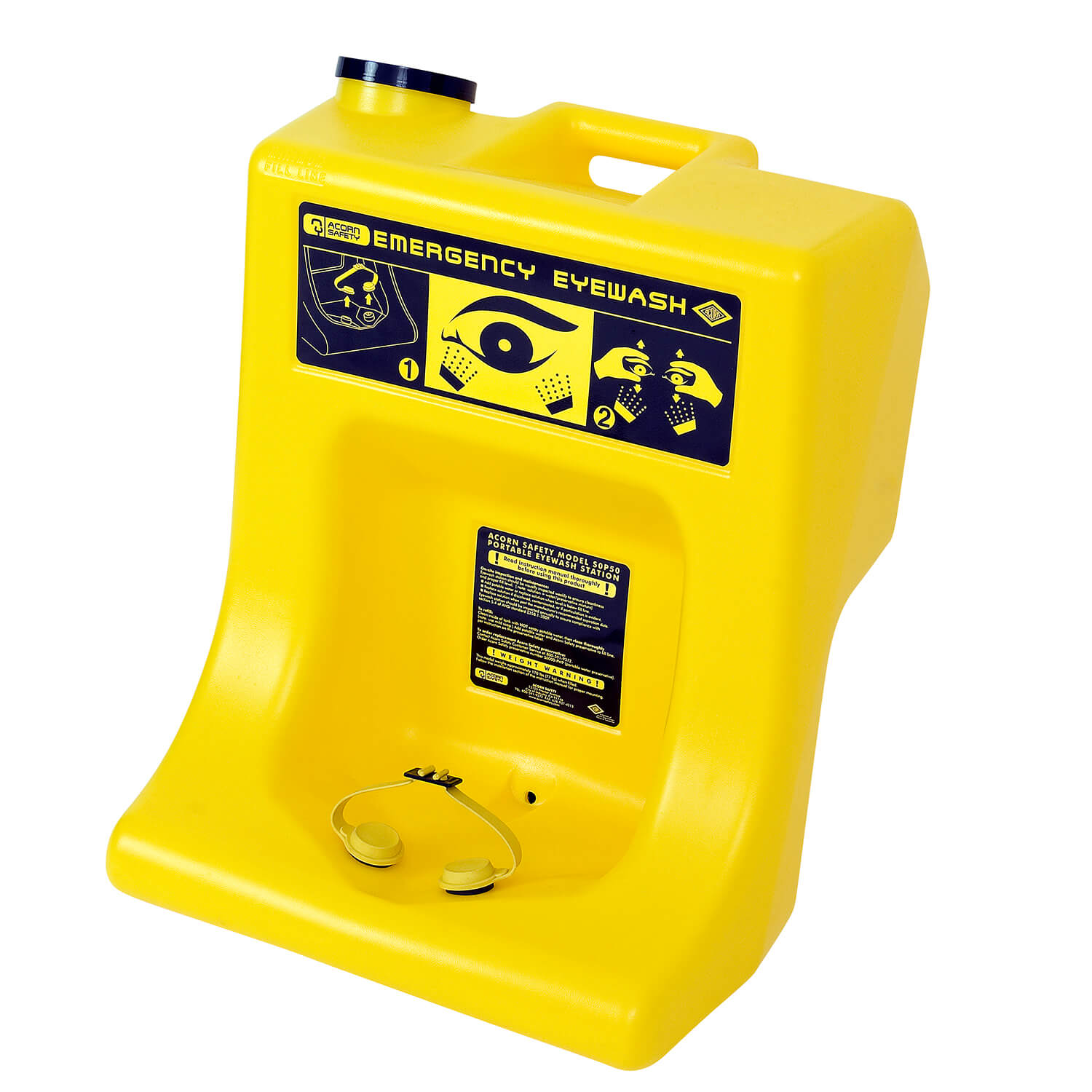

S0P50 portable eyewash station includes an 18-gallon (68.14-liter) polyethylene tank. The unit can be wall mounted or placed on a countertop or other flat surface. Eye wash heads provide a minimum of 0.4 GPM (1.51 LPM) flow rate for 15 minutes. It includes a yellow eye wash pull strap for ease of activation. The tank includes integral handles on the top and sides.

To provide easy refilling, the top of the unit features a wide opening with a threaded cap. Providing clear visibility, the product features an identification/operation instruction label and an inspection/maintenance label. The unit is supplied with a heavy-duty stainless steel bracket for wall mounting.

Labels: Highly visible, high gloss identification/operation label and inspection/maintenance label are fixed to the face of the tank.

Water Preservative: Not included.

Weekly Inspection Tag: A waterproof test card to record the date and inspector's name, for weekly inspection of the eye wash station

Downloads

Resource Type
Title
Description
File Size
Action
DOC icon
Product MasterSpec
DOC icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
170 KB
PDF icon
Installation Instructions
PDF icon
Manual S0P50 Eye Wash (pdf)
Portable Gravity-Fed Emergency Eyewash Station389 KB
PDF icon
Submittals
PDF icon
Submittal S0P50 Eyewash (pdf)
Portable Gravity-Fed Emergency Eyewash Station3 MB
PDF icon
Installation Instructions
PDF icon
Install Guide Replacement Sprayhead for S0P50 Eyewash (pdf)
Replacement Sprayhead for Portable Gravity-Fed Emergency Eyewash Station [S0P50]646 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Portable Eyewash Flyer (pdf)
Portable Gravity-Fed Eyewash Station Acorn Safety Model S0P50170 KB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB
PDF icon
Product MasterSpec
PDF icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
177 KB
RFA icon
BIM/CAD/Revit
RFA icon
S0P50 Eye Wash Revit Drawing
344 KB
ZIP icon
BIM/CAD/Revit
ZIP icon
S0P50 Eye Wash CAD Drawing
138 KB

Specifications

Fixture TypePortable Eyewash Station
MountingPortable
Water SourceGravity-Fed Tank
Eye-Face Wash ActivationPull Strap
Tank MaterialPolyethylene
Tank Capacity18 Gallons
Flow Rate0.4 GPM
Flow Duration15 Minutes
Spray Head TypeEyewash
Spray Head MaterialABS Plastic
Wall BracketStainless Steel, J-Shaped
Drain Hose3 ft, 1/2" ID
ComplianceANSI Z358.1
