Model S0340-FPB

Frost Proof Bury, Stainless Steel Bowl, Pedestal Mount Eye-Face Wash Station

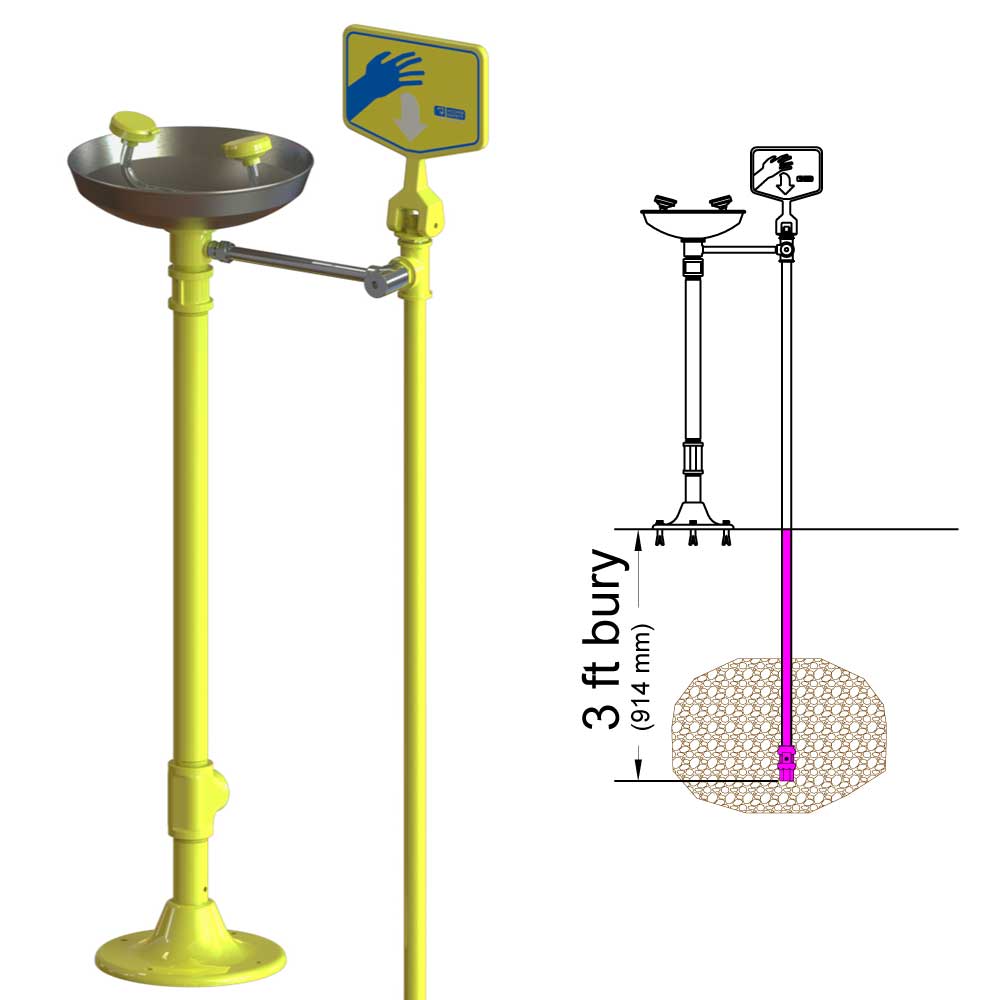

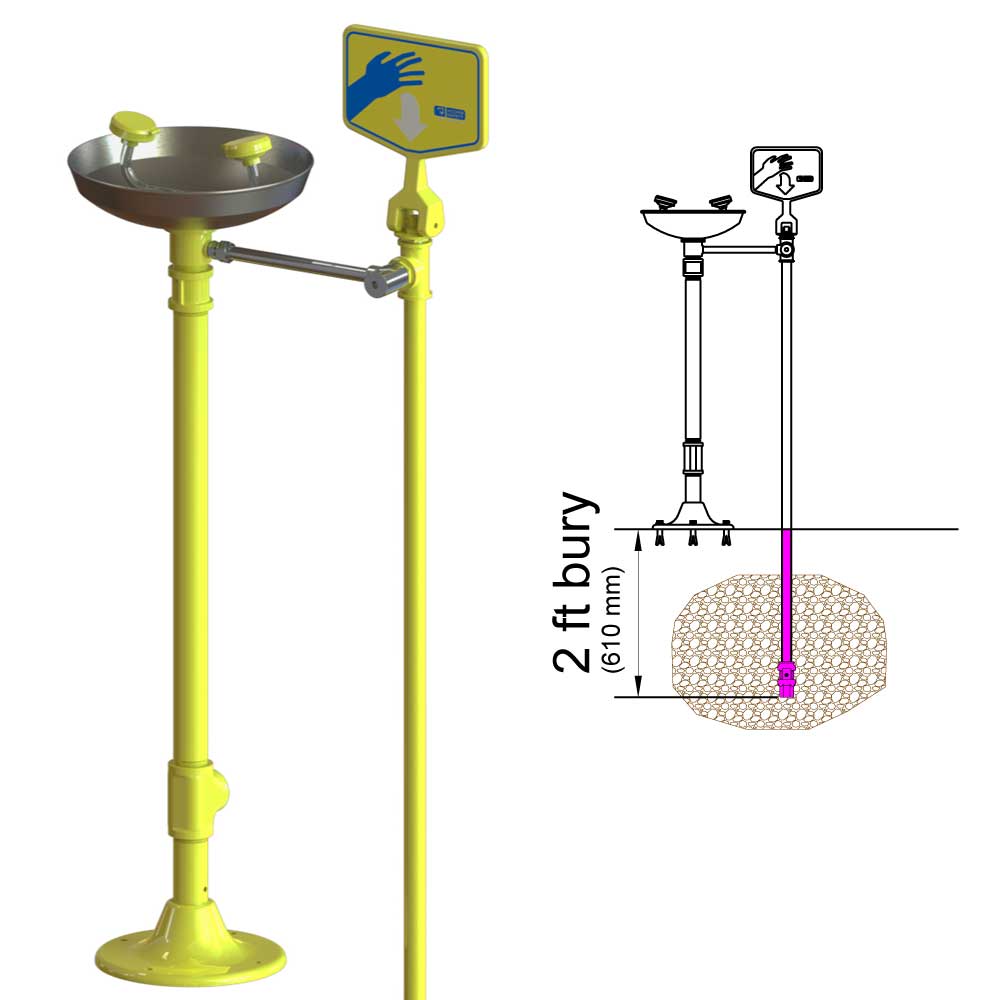

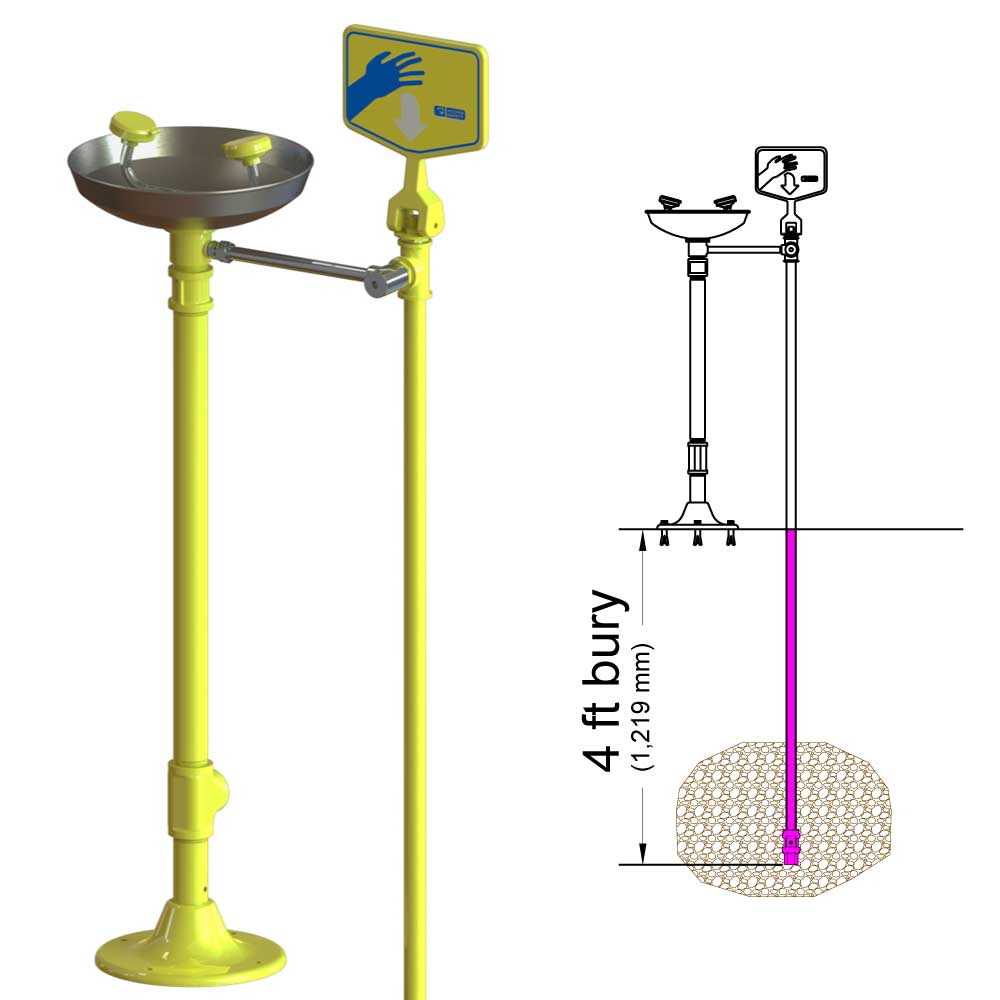

S0340-FPB is a pedestal-mounted eye-face wash station, with a stainless steel bowl, ABS plastic eye-face wash spray heads, and a frost-proof bury valve with a push handle. The valve and supply are buried below the frost line to protect the unit from freezing. The assembly is designed to drain completely, thus leaving no residual water in the unit and preventing it from freezing. Standard bury lengths are 24", 36", and 48". Specify the bury depth of the valve with the last two (2) digits of the model number (i.e. S0340-FPB24 for 24" bury).

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S0320-FPB and S0340-FPB Series Eye-Face Wash (pdf)
Frost-Proof, Pedestal Mount Eye-Face Wash Station [S0320-FPB | Plastic Bowl; S340-FPB | Stainless Steel Bowl]632 KB
PDF icon
Submittals
PDF icon
Submittal S0340-FPB Eye-Face Wash (pdf)
Frost Proof Bury, Stainless Steel Bowl, Pedestal Mount Eye-Face Wash Station257 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB

Specifications

Fixture TypeEye-Face Wash Station
MountingPedestal Mount
InstallationExposed
Eye-Face Wash ActivationPush Handle
Eye-Face Wash Valve TypeFreeze-Resistant Valve
Eye-Face Wash Valve Size3/4"
Supply Inlet3/4" NPT
Waste Outlet1-1/4" NPT
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Eye-Face Wash BowlStainless Steel
Bowl Diameter11-3/4"
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Piping MaterialGalvanized Steel
Piping FinishYellow Powder Coat
Floor Flange9-1/8" Cast Iron
Freeze-ResistantYes
Freeze ProtectionFrost-Proof Bury
Bury Depth24", 36", 48"
ComplianceANSI Z358.1
