Barrier-Free, Stainless Steel Bowl, Pedestal Mount Eye-Face Wash Station

S0340-BF is a barrier-free pedestal-mounted eye-face wash, with a stainless steel bowl, ABS plastic eye-face wash spray heads, an inline strainer, and a stay-open 1/2" ball valve with a push handle.

Note: The unit may comply with some but not all requirements for ADA.

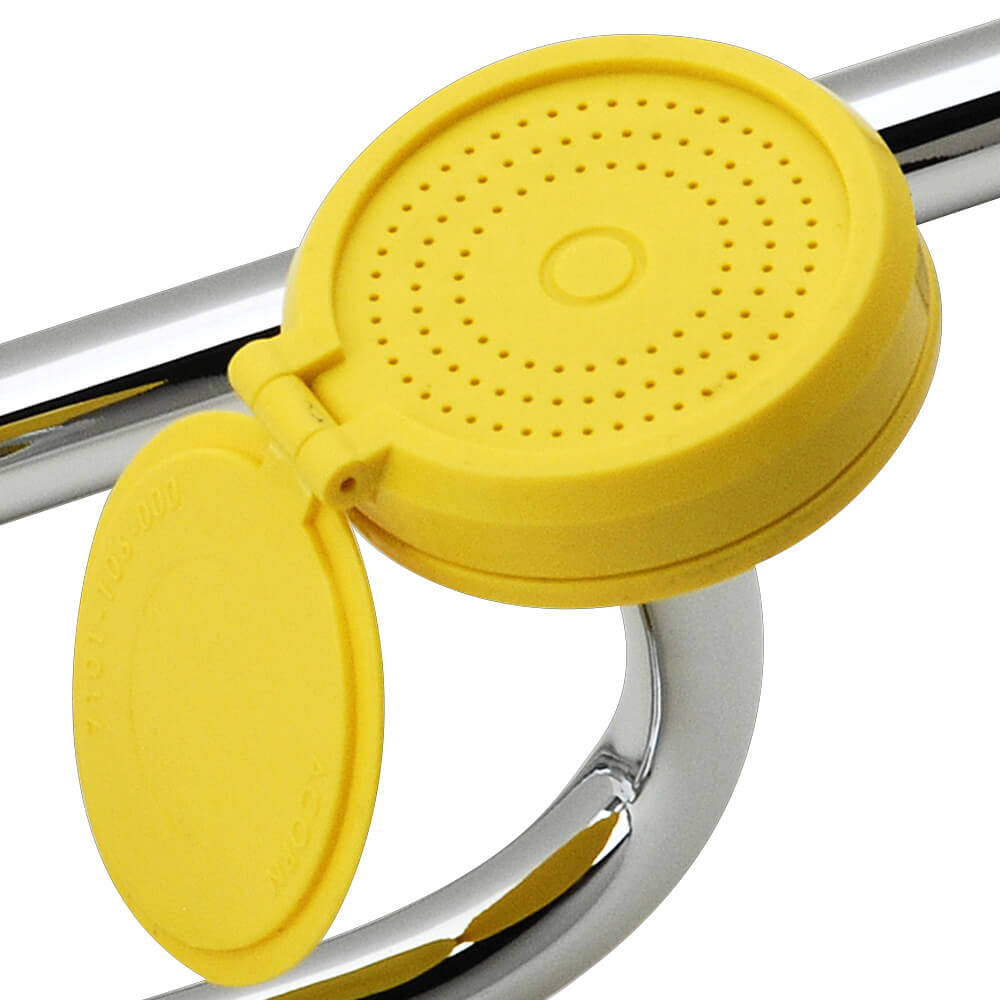

Spray Head Assembly: ABS yellow plastic eye-face wash heads with integral flip dust covers, internal flow controls, and filters to remove debris from the water. An anti-microbial agent is molded into the ABS material, providing integrated protection.

Valve: 1/2" NPT chrome plated brass stay-open ball valve with a stainless steel push handle and a 50 mesh inline strainer.

Water Supply: 1/2" NPT female threaded, chrome-plated brass inlet.

Waste: 1-1/4" NPT female outlet.

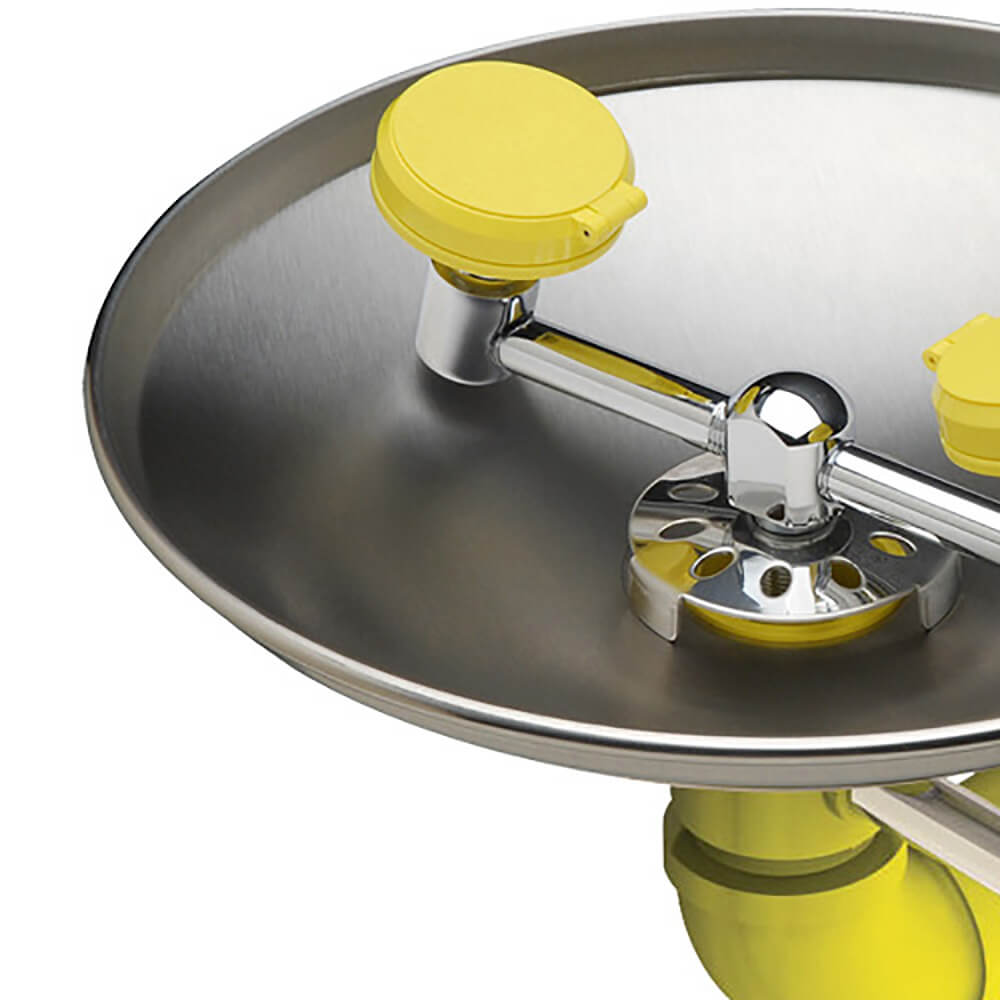

Bowl: Stainless steel, 11-3/4" diameter bowl.

Piping & Mounting: Schedule 40 galvanized steel piping and a 9-1/8" diameter cast iron floor flange with a yellow powder-coated finish

Universal Sign: ANSI-compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.
