Plastic Bowl, Pedestal Mount Eye-Face Wash Station

In StockThis product is available for quick shipment nationwide.
Model S0320
Installation Instructions
2 available
Submittal
2 available
Model S0320

Plastic Bowl, Pedestal Mount Eye-Face Wash Station

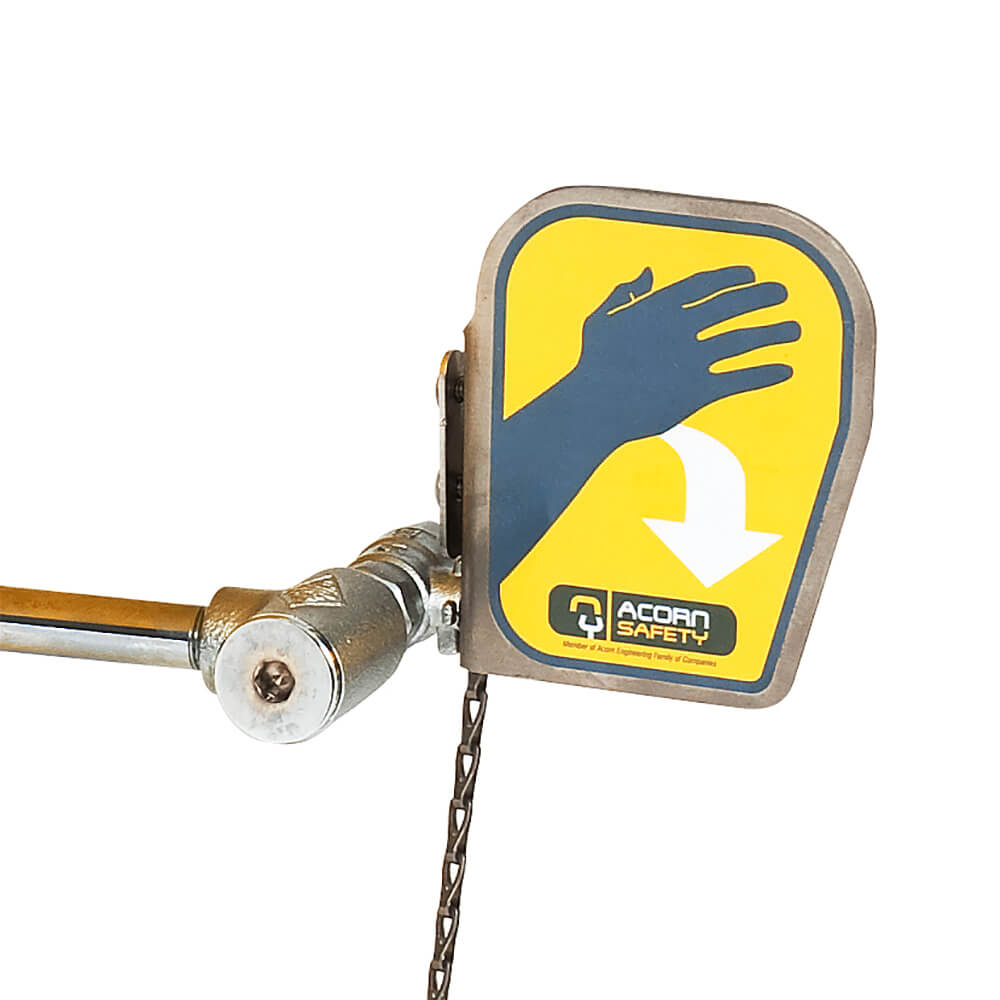

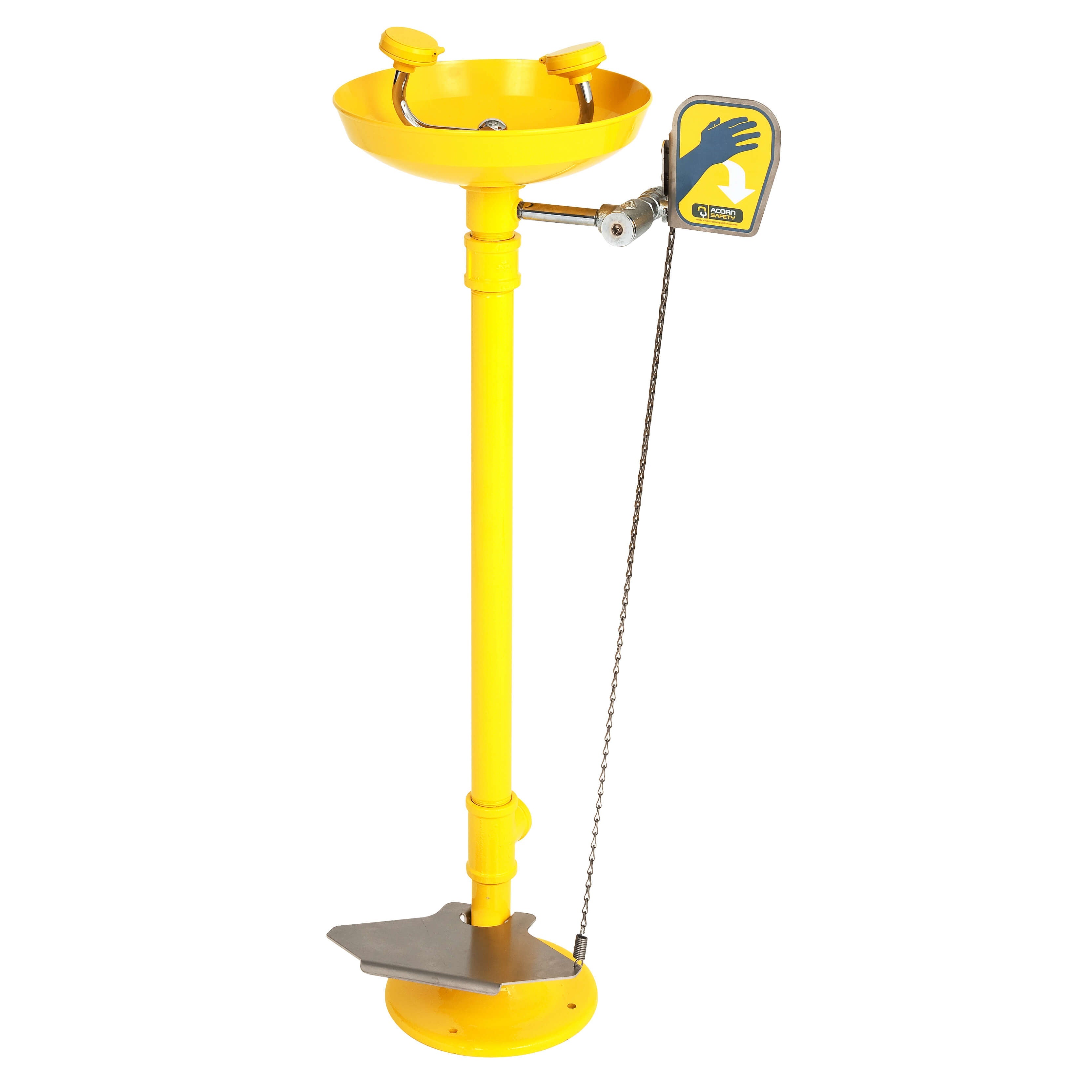

S0320 is a pedestal-mounted eye-face wash, with a plastic bowl, ABS plastic eye-face wash spray heads, an inline strainer and a stay-open 1/2" ball valve with a push handle.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

  • Ease of maintenance
  • Conveniently pre-assembled
  • Highly visible yellow powder coating
  • Barrier-free options

Downloads

Resource Type
Title
Description
File Size
Action
DOC icon
Product MasterSpec
DOC icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
170 KB
PDF icon
Installation Instructions
PDF icon
Manual S0320, S0340 Eye-Face Wash (pdf)
Pedestal Mount Eye-Face Wash Station [S0320 | Plastic Bowl; S340| Stainless Steel Bowl]924 KB
PDF icon
Submittals
PDF icon
Submittal S0320 Eye-Face Wash (pdf)
Plastic Bowl, Pedestal Mount Eye-Face Wash Station203 KB
PDF icon
Submittals
PDF icon
Submittal S0320-HFC Eye-Face Wash (pdf)
Plastic Bowl, Pedestal Mount Eye-Face Wash Station with Hand-Foot Control Assembly237 KB
PDF icon
Installation Instructions
PDF icon
Manual Accessory S0000-HFC (pdf)
Hand-Foot Control Assembly139 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB
PDF icon
Brochures/Flyers
PDF icon
Kwik Ship General Brochure (pdf)
Save time with many models that shipped fully or mostly assembled. Products are in stock and locally available for quick delivery.7 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Kwik Ship Spec Sheet (pdf)
Why Safety® Emergency Eye Face Wash and Showers? S0420 Wall Mount Eye Face Wash, S0320 Pedestal Mount Eye Face Wash, S2160-PE21-RA-PAN, S1320, S2340-AS-BF Combo Eye Face Wash Showers2 MB
PDF icon
Product MasterSpec
PDF icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
177 KB
RFA icon
BIM/CAD/Revit
RFA icon
S0320 Eye-Face Wash Station (rfa)
Plastic Bowl, Pedestal Mount Eye-Face Wash Station692 KB
ZIP icon
BIM/CAD/Revit
ZIP icon
S0320 Eye-Face Wash Station (dwg/zip)
Plastic Bowl, Pedestal Mount Eye-Face Wash Station1 MB

Specifications

Fixture TypeEye-Face Wash Station
MountingPedestal Mount
InstallationExposed
Eye-Face Wash ActivationPush Handle
Eye-Face Wash Valve TypeStay-Open Ball Valve
Eye-Face Wash Valve Size1/2"
Eye-Face Wash Valve MaterialChrome Plated Brass
Inline Strainer50 Mesh
Supply Inlet1/2" NPT
Waste Outlet1-1/4" NPT
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI

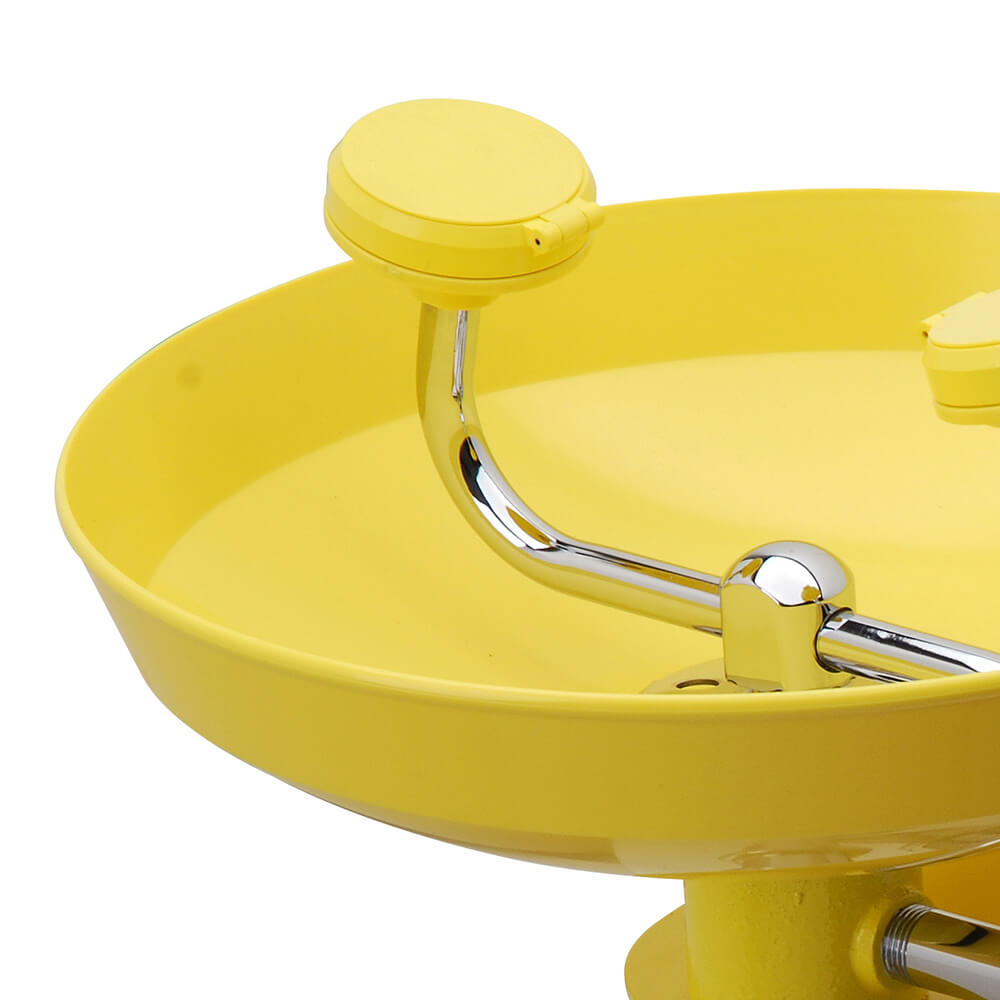

Eye-Face Wash BowlABS Plastic
Bowl Diameter11-3/4"
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Piping MaterialGalvanized Steel
Piping FinishYellow Powder Coat

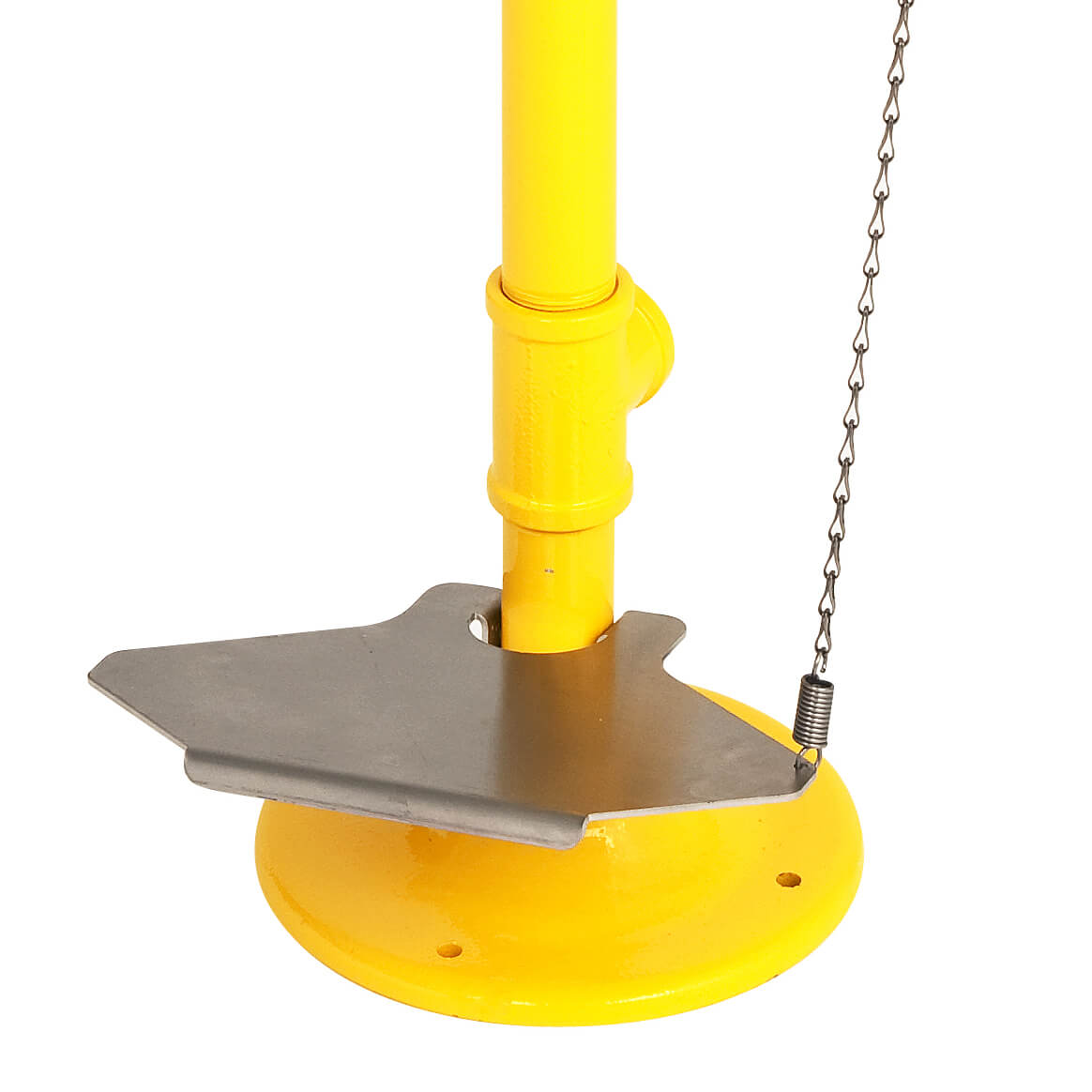

Floor Flange9-1/8" Cast Iron
ComplianceANSI Z358.1
