Model S0340

Stainless Steel Bowl, Pedestal Mount Eye-Face Wash Station

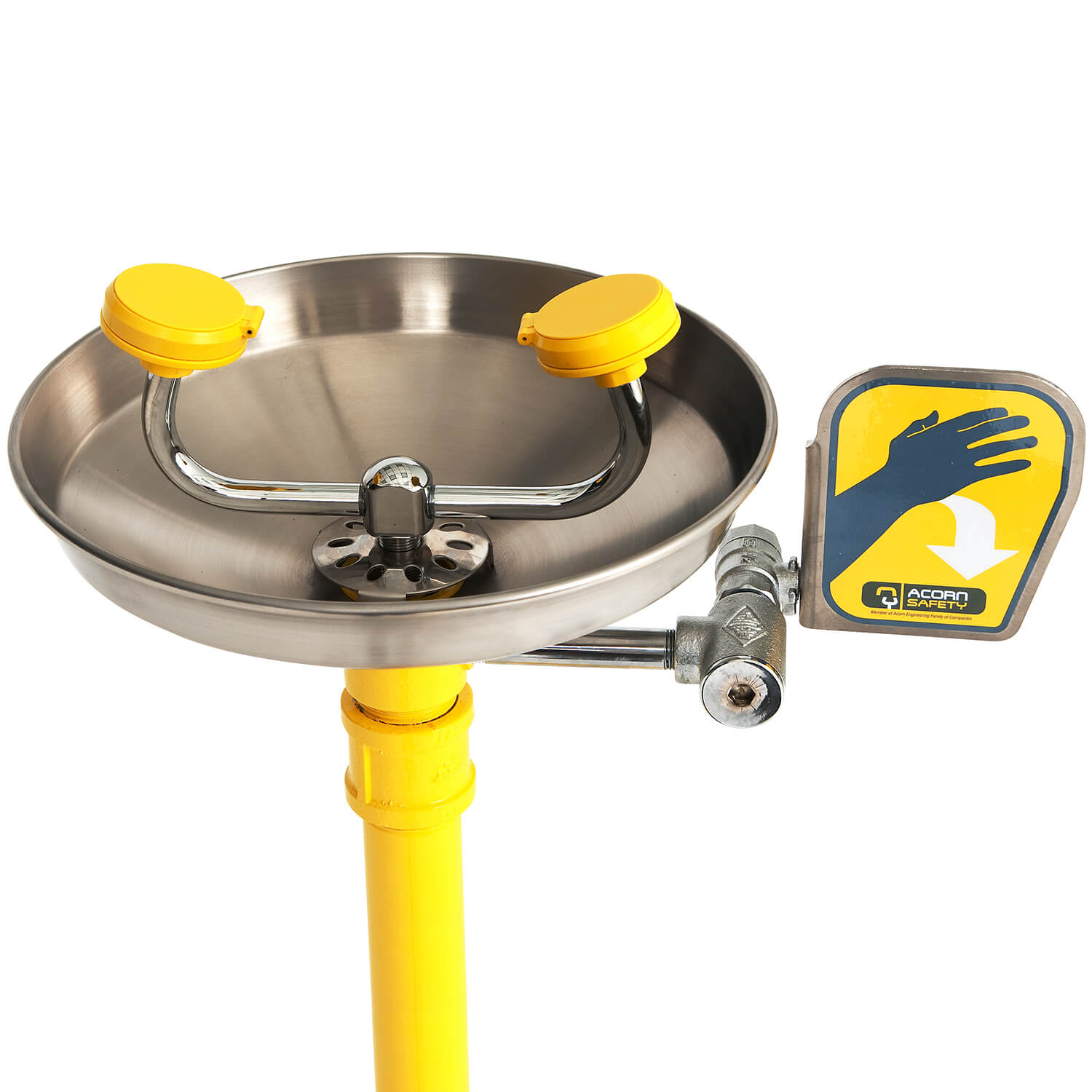

S0340 is a pedestal-mounted face and eye wash with a stainless steel bowl, ABS plastic face/eye wash spray heads, an inline strainer, and a stay-open 1/2" ball valve with a push handle.

Universal Sign: ANSI-compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

  • Ease of maintenance
  • Conveniently pre-assembled
  • Highly visible yellow powder coating
  • Barrier-free options

Downloads

Resource Type
Title
Description
File Size
Action
DOC icon
Product MasterSpec
DOC icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
170 KB
PDF icon
Installation Instructions
PDF icon
Manual S0320, S0340 Eye-Face Wash (pdf)
Pedestal Mount Eye-Face Wash Station [S0320 | Plastic Bowl; S340| Stainless Steel Bowl]924 KB
PDF icon
Submittals
PDF icon
Submittal S0340 Eye-Face Wash (pdf)
Stainless Steel Bowl, Pedestal Mount Eye-Face Wash Station204 KB
PDF icon
Submittals
PDF icon
Submittal S0340-CS1 Eye-Face Wash (pdf)

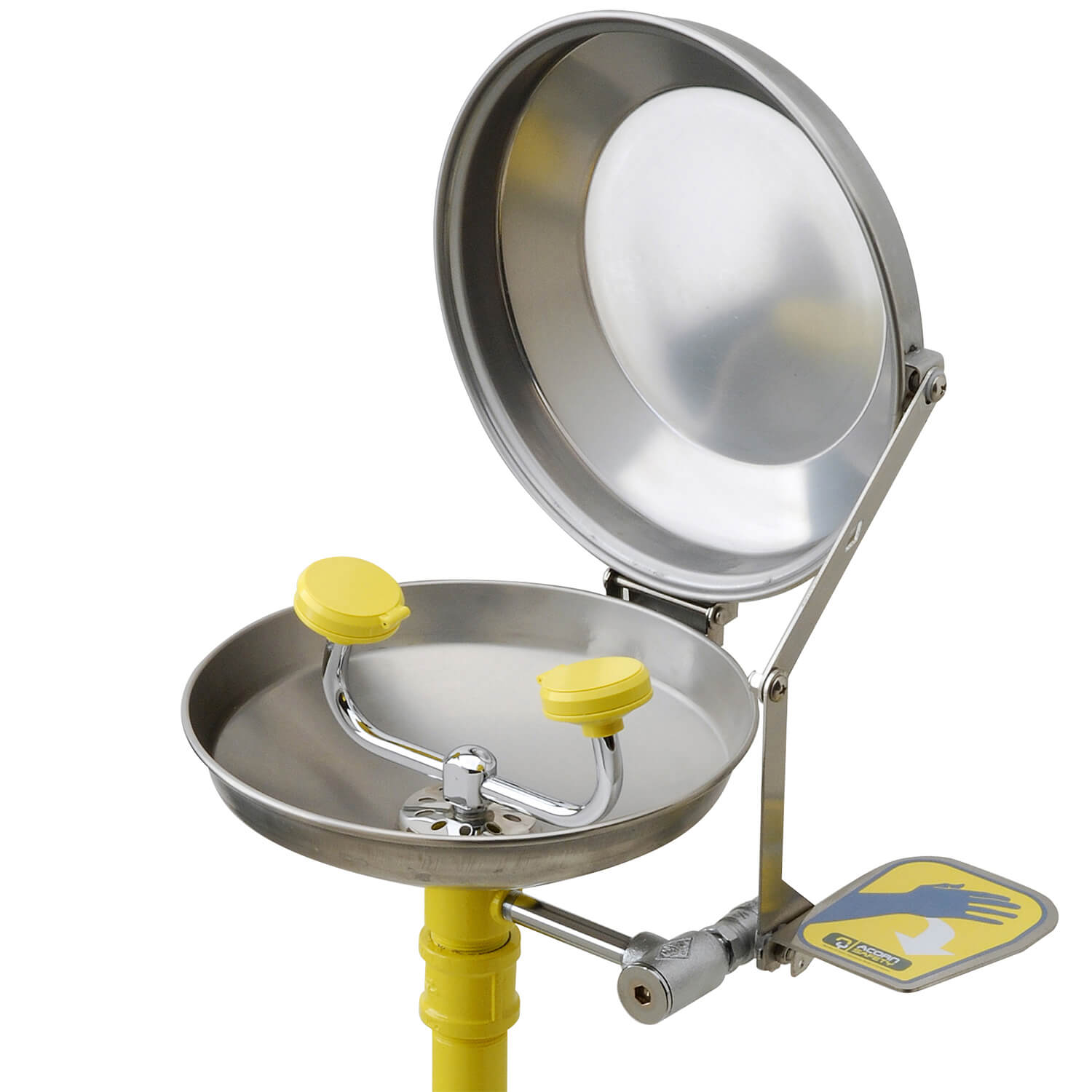

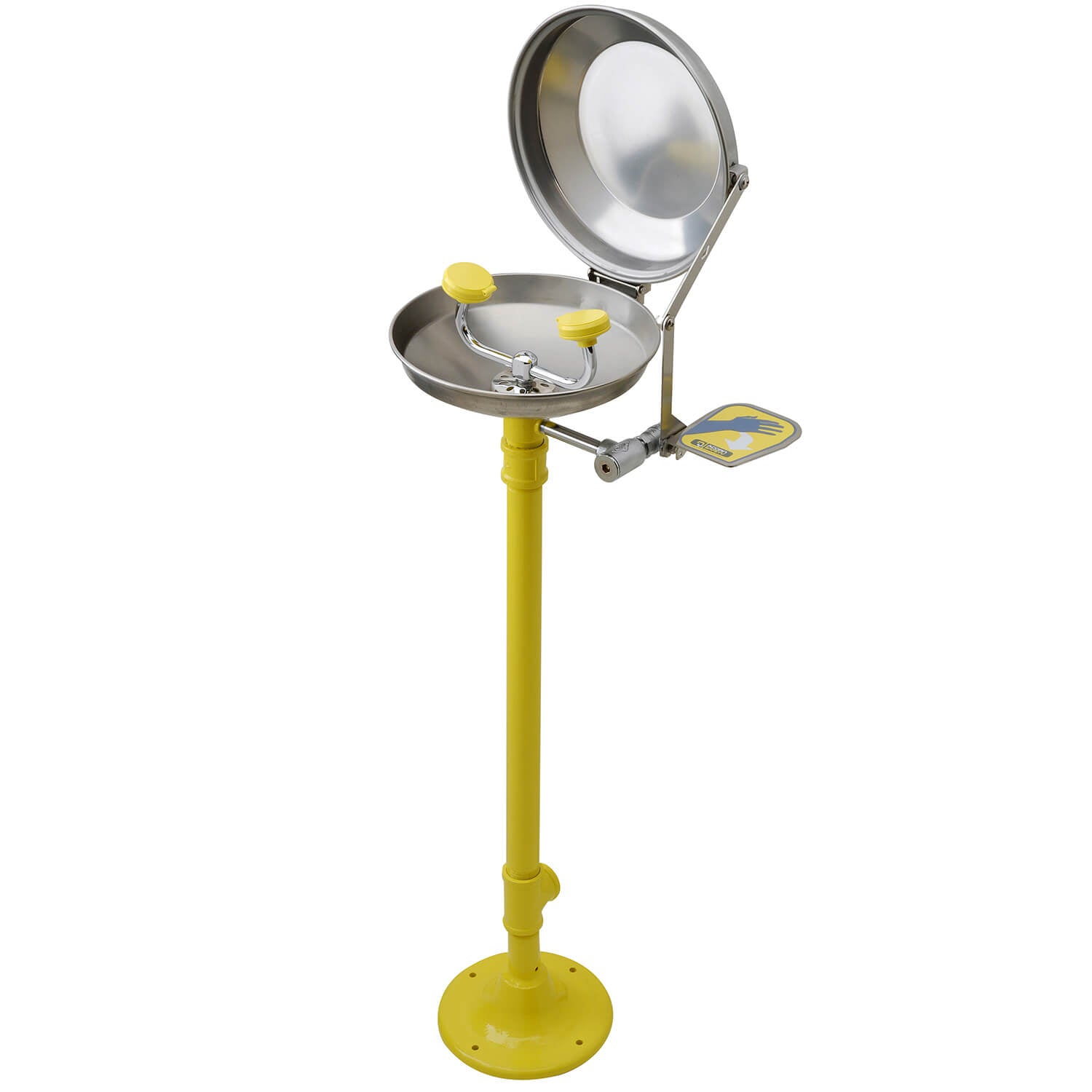

Stainless Steel Bowl, Pedestal Mount Eye-Face Wash Station with Clam-Shell Stainless Steel Cover Assembly196 KB
PDF icon
Submittals
PDF icon
Submittal S0320-HFC Eye-Face Wash (pdf)
Plastic Bowl, Pedestal Mount Eye-Face Wash Station with Hand-Foot Control Assembly237 KB
PDF icon
Submittals
PDF icon
Submittal S0340-HFC Eye-Face Wash (pdf)

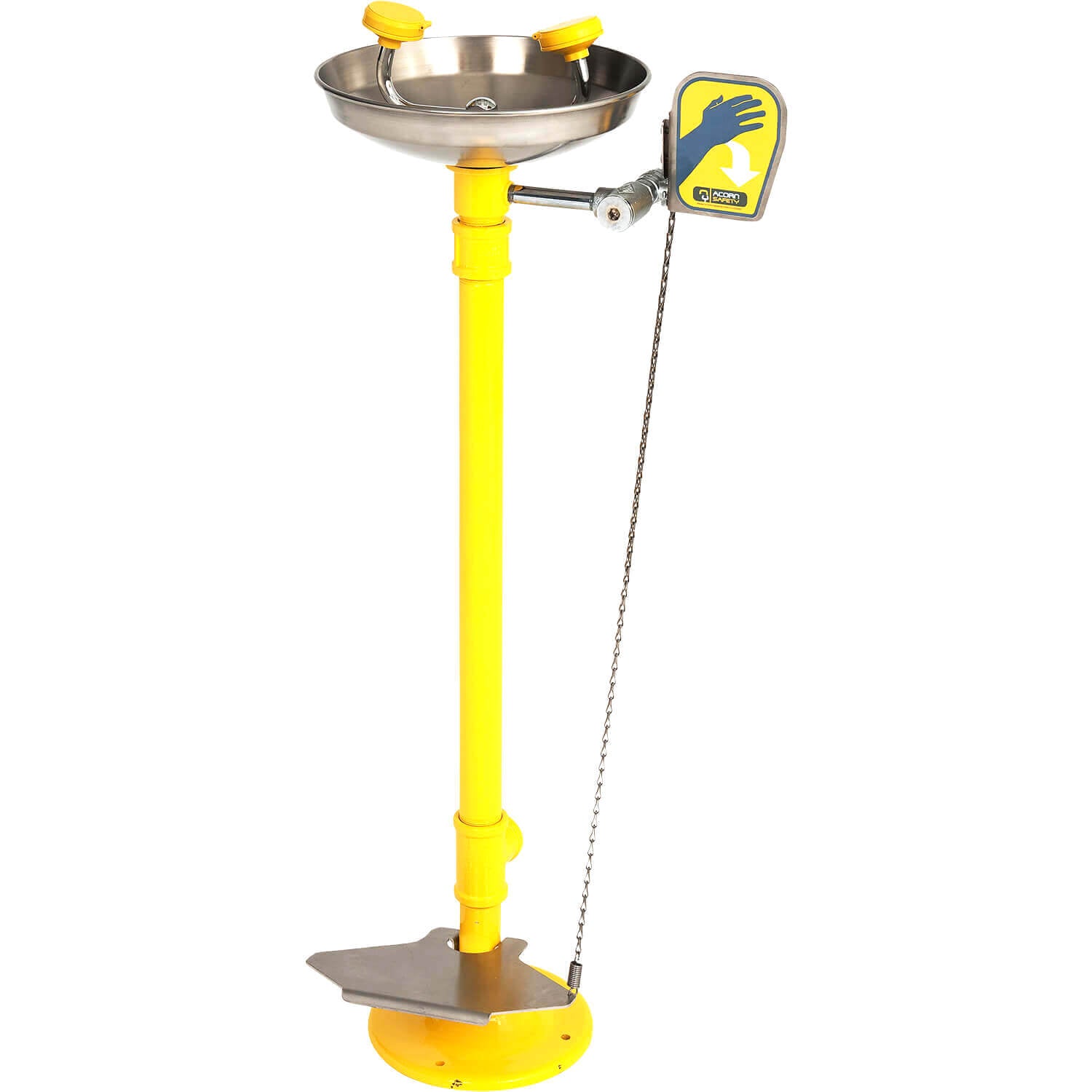

Stainless Steel Bowl, Wall Mount Eye-Face Wash Station with Hand-Foot Control Assembly241 KB
PDF icon
Installation Instructions
PDF icon
Manual Accessory S0000-HFC (pdf)
Hand-Foot Control Assembly139 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB
PDF icon
Product MasterSpec
PDF icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
177 KB
RFA icon
BIM/CAD/Revit
RFA icon
Revit S0340-HFC Face/Eye Wash
632 KB
ZIP icon
BIM/CAD/Revit
ZIP icon
CAD S0340-HFC Face/Eye Wash
643 KB

Specifications

Fixture TypeEye-Face Wash Station
MountingPedestal Mount
InstallationExposed
Eye-Face Wash ActivationPush Handle
Eye-Face Wash Valve TypeStay-Open Ball Valve
Eye-Face Wash Valve Size1/2"
Eye-Face Wash Valve MaterialChrome Plated Brass
Inline Strainer50 Mesh
Supply Inlet1/2" NPT
Waste Outlet1-1/4" NPT
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Eye-Face Wash BowlStainless Steel
Bowl Diameter11-3/4"
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Piping MaterialGalvanized Steel
Piping FinishYellow Powder Coat
Floor Flange9-1/8" Cast Iron
ComplianceANSI Z358.1
