Freeze-Resistant Wall-Mounted Eye-Face Wash Station with Stainless Steel Bowl

In StockThis product is available for quick shipment nationwide.
Model S0440-FRV
Installation Instructions
Manual S0420-FRV, S0440-FRV Eye-Face Wash (pdf)
Submittal
Submittal S0440-FRV Eye-Face Wash (pdf)
Model S0440-FRV

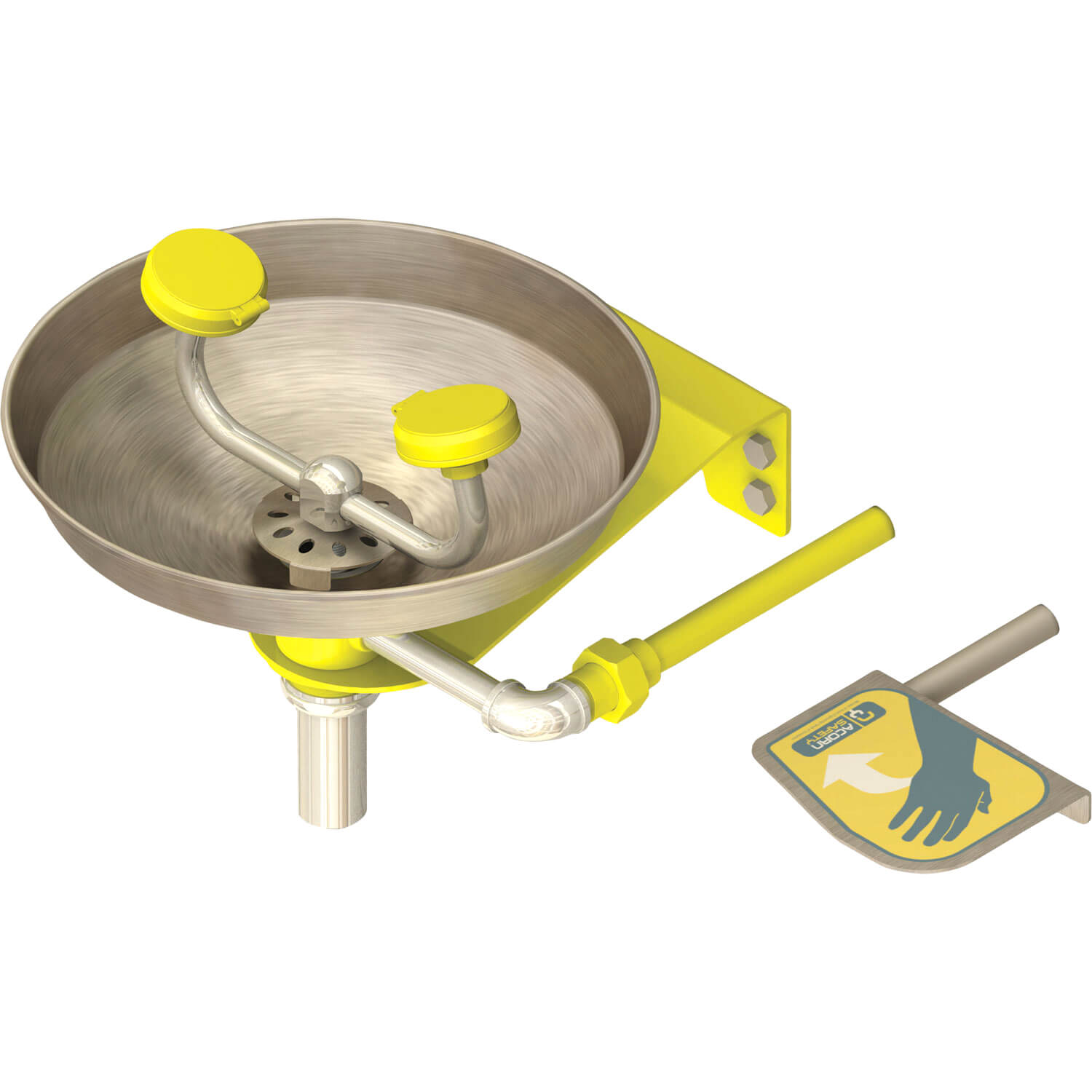

Freeze-Resistant Wall-Mounted Eye-Face Wash Station with Stainless Steel Bowl

Model S0440-FRV is a freeze-resistant, wall mounted face and eye wash with a stainless steel bowl, ABS plastic face/eye wash spray heads, an inline strainer, and push handle. The self-draining valve and supply are located behind the wall in a heated area to prevent freezing.

Universal Sign: ANSI compliant, vertical identification sign

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S0420-FRV, S0440-FRV Eye-Face Wash (pdf)
Freeze-Resistant Wall Mounted Eye-Face Wash Station [S420-FRV | Plastic Bowl; S440-FRV | Stainless Steel Bowl]541 KB
PDF icon
Submittals
PDF icon
Submittal S0440-FRV Eye-Face Wash (pdf)
Freeze-Resistant Wall-Mounted Eye-Face Wash Station with Stainless Steel Bowl286 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB

Specifications

Fixture TypeEye-Face Wash Station
MountingWall Mount
InstallationExposed
Eye-Face Wash ActivationPush Handle
Eye-Face Wash Valve TypeThree-Way Self-Draining Stay-Open Ball Valve
Eye-Face Wash Valve Size1/2"
Eye-Face Wash Valve MaterialChrome Plated Brass
Inline Strainer50 Mesh
Supply Inlet1/2" NPT
Waste Outlet1-1/4" OD Tailpiece
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Eye-Face Wash BowlStainless Steel
Bowl Diameter11-3/4"
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Wall Bracket11 Gauge Galvanized Steel, Yellow Powder Coat
Freeze-ResistantYes
Freeze ProtectionSelf-Draining Valve (Behind Wall)
ComplianceANSI Z358.1
