Plastic Bowl, Wall Mount Eye-Face Wash Station

In StockThis product is available for quick shipment nationwide.
Model S0420
Installation Instructions
Manual S0420, S0440 Eye-Face Wash (pdf)
Submittal
Submittal S0420 Eye-Face Wash (pdf)
Model S0420

Plastic Bowl, Wall Mount Eye-Face Wash Station

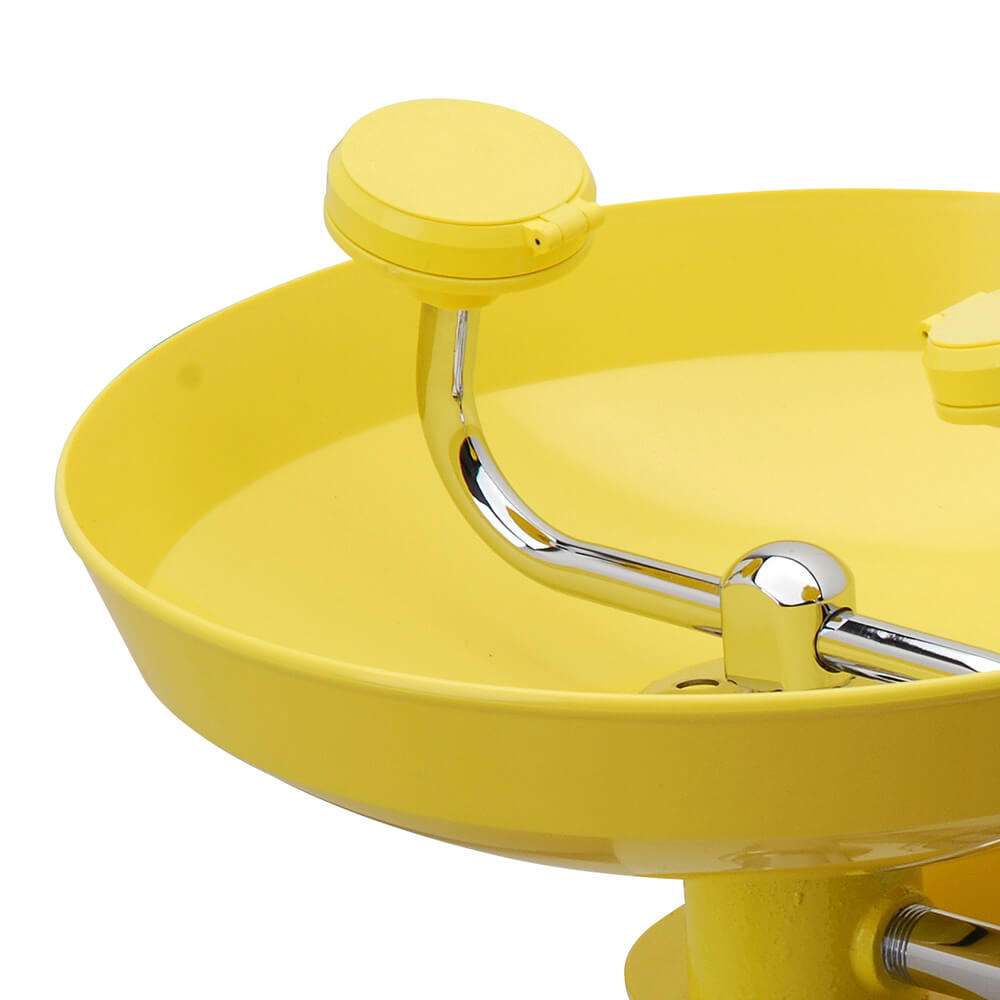

S0420 is a wall-mounted eye-face wash with a plastic bowl, ABS plastic eye-face wash spray heads, an inline strainer, and a stay-open 1/2" ball valve with a push handle.

Universal Sign: ANSI-compliant, vertical identification sign

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
DOC icon
Product MasterSpec
DOC icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
170 KB
PDF icon
Installation Instructions
PDF icon
Manual S0420, S0440 Eye-Face Wash (pdf)
Wall Mount Eye-Face Wash Station [S420| Plastic Bowl; S440 | Stainless Steel Bowl]1 MB
PDF icon
Submittals
PDF icon
Submittal S0420 Eye-Face Wash (pdf)
Plastic Bowl, Wall Mount Eye-Face Wash Station277 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Brochures/Flyers
PDF icon
Kwik Ship General Brochure (pdf)
Save time with many models that shipped fully or mostly assembled. Products are in stock and locally available for quick delivery.7 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Kwik Ship Spec Sheet (pdf)
Why Safety® Emergency Eye Face Wash and Showers? S0420 Wall Mount Eye Face Wash, S0320 Pedestal Mount Eye Face Wash, S2160-PE21-RA-PAN, S1320, S2340-AS-BF Combo Eye Face Wash Showers2 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB
PDF icon
Product MasterSpec
PDF icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
177 KB
ZIP icon
BIM/CAD/Revit
ZIP icon
S0420 (rfa)
1 MB
ZIP icon
BIM/CAD/Revit
ZIP icon
S0420 etal Eye-Face Wash (dwg/zip)
S0420_etal_Eye-Face_Wash_CAD.zip847 KB

Specifications

Fixture TypeEye-Face Wash Station
MountingWall Mount
InstallationExposed
Eye-Face Wash ActivationPush Handle
Eye-Face Wash Valve TypeStay-Open Ball Valve
Eye-Face Wash Valve Size1/2"
Eye-Face Wash Valve MaterialChrome Plated Brass
Inline Strainer50 Mesh
Supply Inlet1/2" NPT
Waste Outlet1-1/4" OD Tailpiece
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Eye-Face Wash BowlABS Plastic
Bowl Diameter11-3/4"
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Wall Bracket11 Gauge Galvanized Steel, Yellow Powder Coat
ComplianceANSI Z358.1

Options

Accessories

Model
Description
Downloads
Accessory: Flow Switch, 1/2-Inch NPTI
S0000-FLW2
Accessory: Flow Switch, 1/2-Inch NPTI
Accessory: Magnetic Activated Proximity (MAP) Switch, Single Application
S0000-MS1
Accessory: Magnetic Activated Proximity (MAP) Switch, Single Application
Accessory: P-Trap 1-1/4-Inch for Wall Mounted Eye Wash Stations with Bowls
S0000-PT1
Accessory: P-Trap 1-1/4-Inch for Wall Mounted Eye Wash Stations with Bowls

Miscellaneous

Model
Description
Downloads
1/2" x 1/2" Emergency Thermostatic Mixing Valve
ET71-1-BVS-OTG
1/2" x 1/2" Emergency Thermostatic Mixing Valve
Option: Freeze Protection Valve on Emergency Station
S0000-FPV
Option: Freeze Protection Valve on Emergency Station
Option: Stainless Steel Caps for Eye-Face Wash Spray Heads
S0000-SDC
Option: Stainless Steel Caps for Eye-Face Wash Spray Heads
Option: Scald Protection Valve on Emergency Station
S0000-SPV
Option: Scald Protection Valve on Emergency Station
Drench Hose with Self-Closing Squeeze Lever
S0001
Drench Hose with Self-Closing Squeeze Lever
