All-Stainless Steel, Wall Mount Eye-Face Wash Station

In StockThis product is available for quick shipment nationwide.
Model S0440-AS
Installation Instructions
Manual S0440-AS Eye-Face Wash (pdf)
Submittal
Submittal S0440-AS Eye-Face Wash (pdf)
Model S0440-AS

All-Stainless Steel, Wall Mount Eye-Face Wash Station

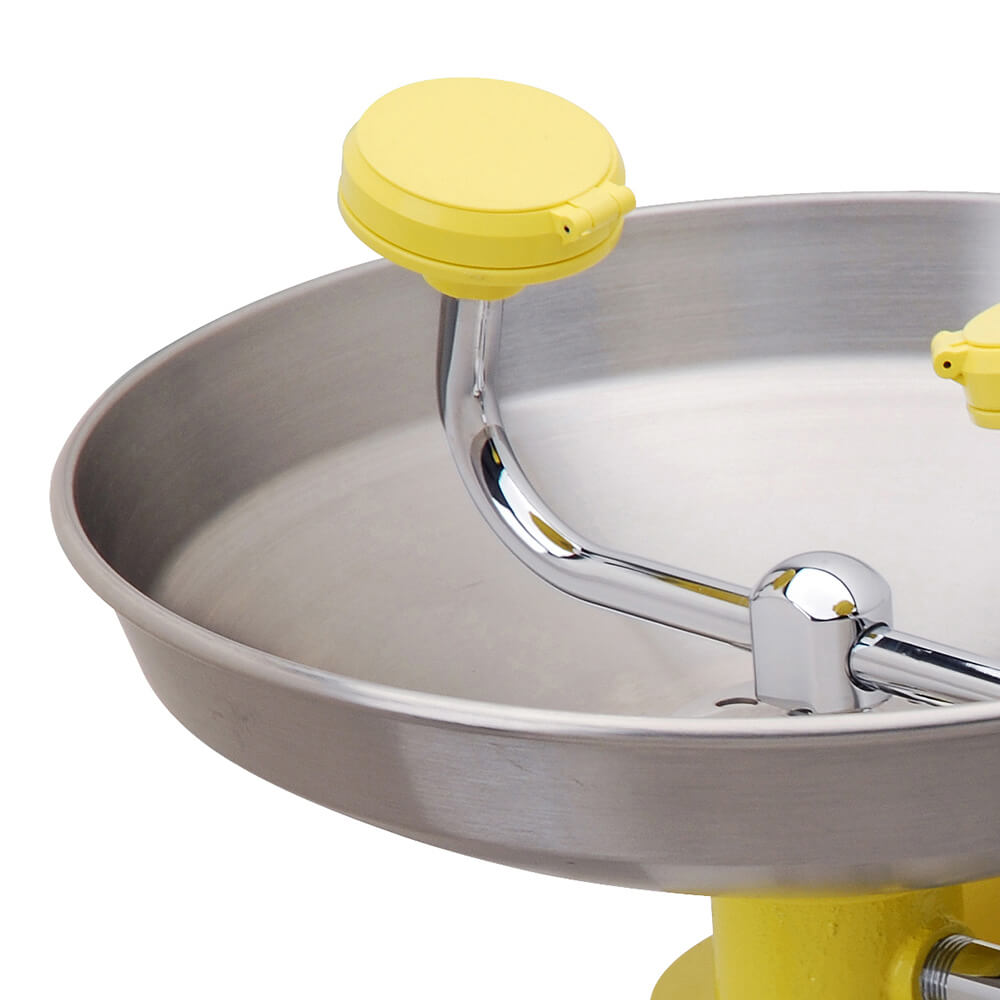

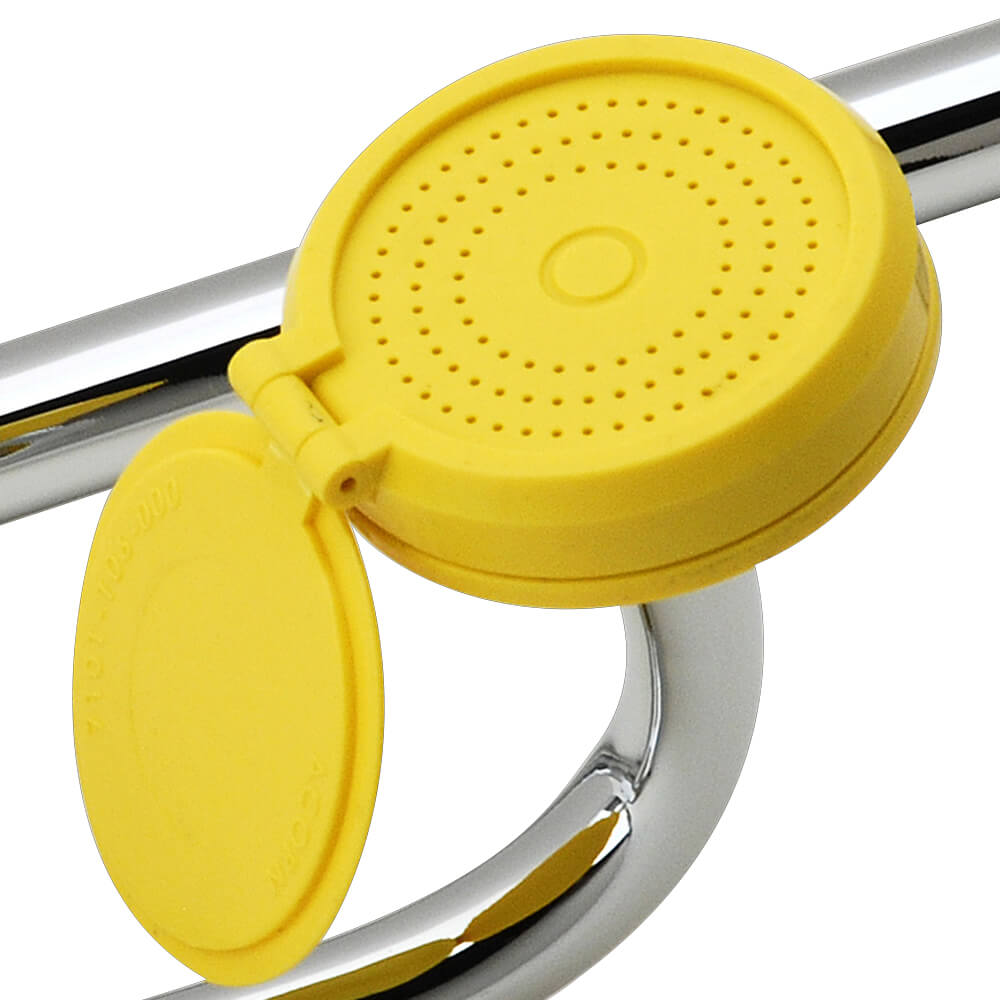

S0440-AS is a wall-mounted face and eye wash with a stainless steel bowl, ABS plastic face/eye wash spray heads, an inline strainer, and a stainless steel stay-open 1/2" ball valve with a push handle.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S0440-AS Eye-Face Wash (pdf)
All-Stainless Steel, Wall Mount Eye-Face Wash Station764 KB
PDF icon
Submittals
PDF icon
Submittal S0440-AS Eye-Face Wash (pdf)
All-Stainless Steel, Wall Mount Eye-Face Wash Station215 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB
RFA icon
BIM/CAD/Revit
RFA icon
S0440-AS Face & Eye Wash Revit Drawing
352 KB
ZIP icon
BIM/CAD/Revit
ZIP icon
S0440-AS Face & Eye Wash CAD Drawing
327 KB

Specifications

Fixture TypeEye-Face Wash Station
MountingWall Mount
InstallationExposed
Eye-Face Wash ActivationPush Handle
Eye-Face Wash Valve TypeStay-Open Ball Valve
Eye-Face Wash Valve Size1/2"
Eye-Face Wash Valve MaterialStainless Steel
Inline Strainer50 Mesh
Supply Inlet1/2" NPT
Waste Outlet1-1/4" OD Tailpiece
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Eye-Face Wash BowlStainless Steel
Bowl Diameter11-3/4"
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Wall Bracket11 Gauge Stainless Steel
ComplianceANSI Z358.1
