Deck-Mount, 90° Swivel Eye-Face Wash Station

In StockThis product is available for quick shipment nationwide.
Model S0A60
Installation Instructions
Manual S0A60 Eye-Face Wash (pdf)
Submittal
Submittal S0A60 Eye-Face Wash (pdf)
Model S0A60

Deck-Mount, 90° Swivel Eye-Face Wash Station

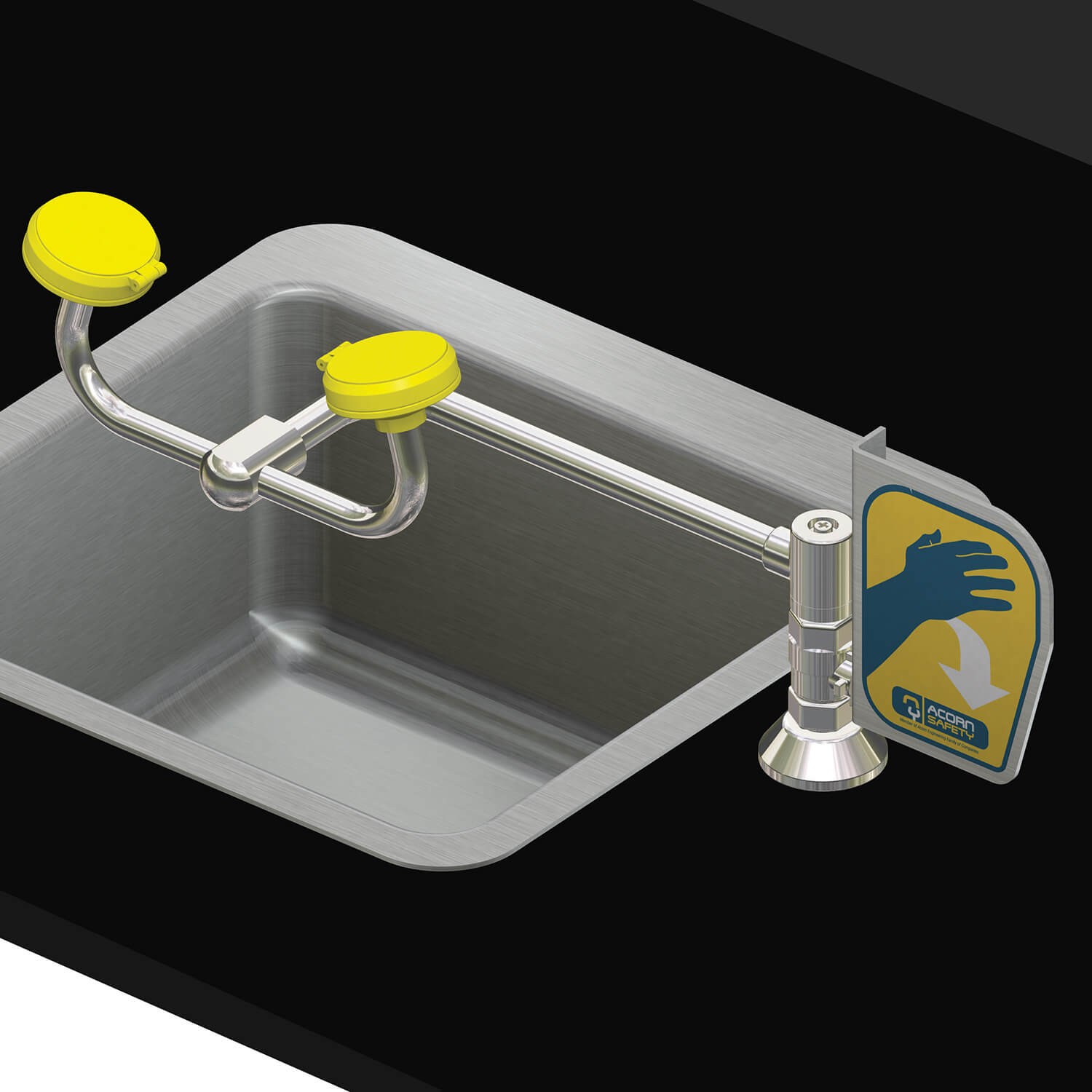

Model S0A60 is a deck-mounted, 90° swivel eye-face wash installed next to the sink (sink not provided). The eye-face wash features ABS plastic spray heads, an inline strainer, and a stay-open 1/2" ball valve with a push handle.

SPECIFY:

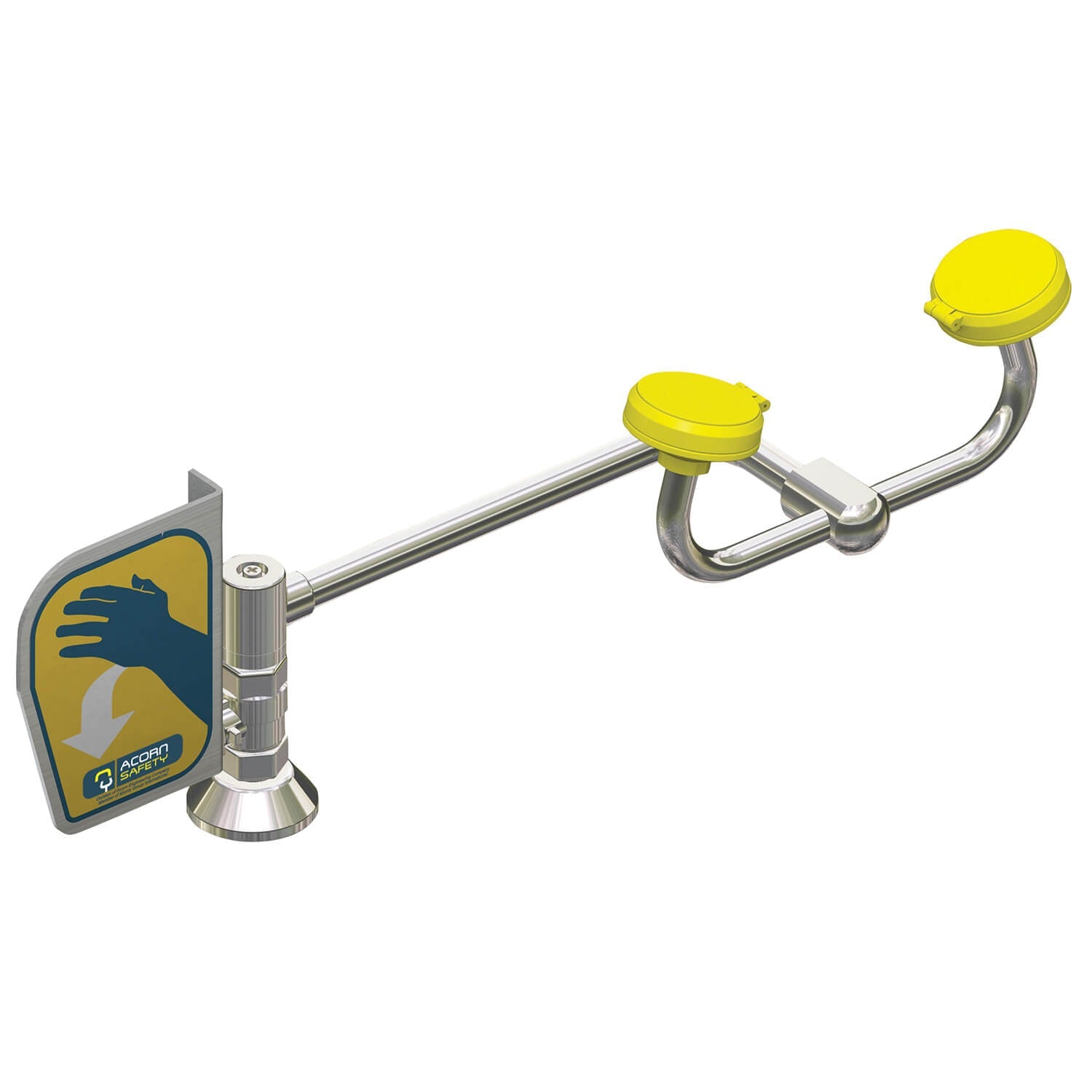

S0A60-LH | Left Hand Configuration

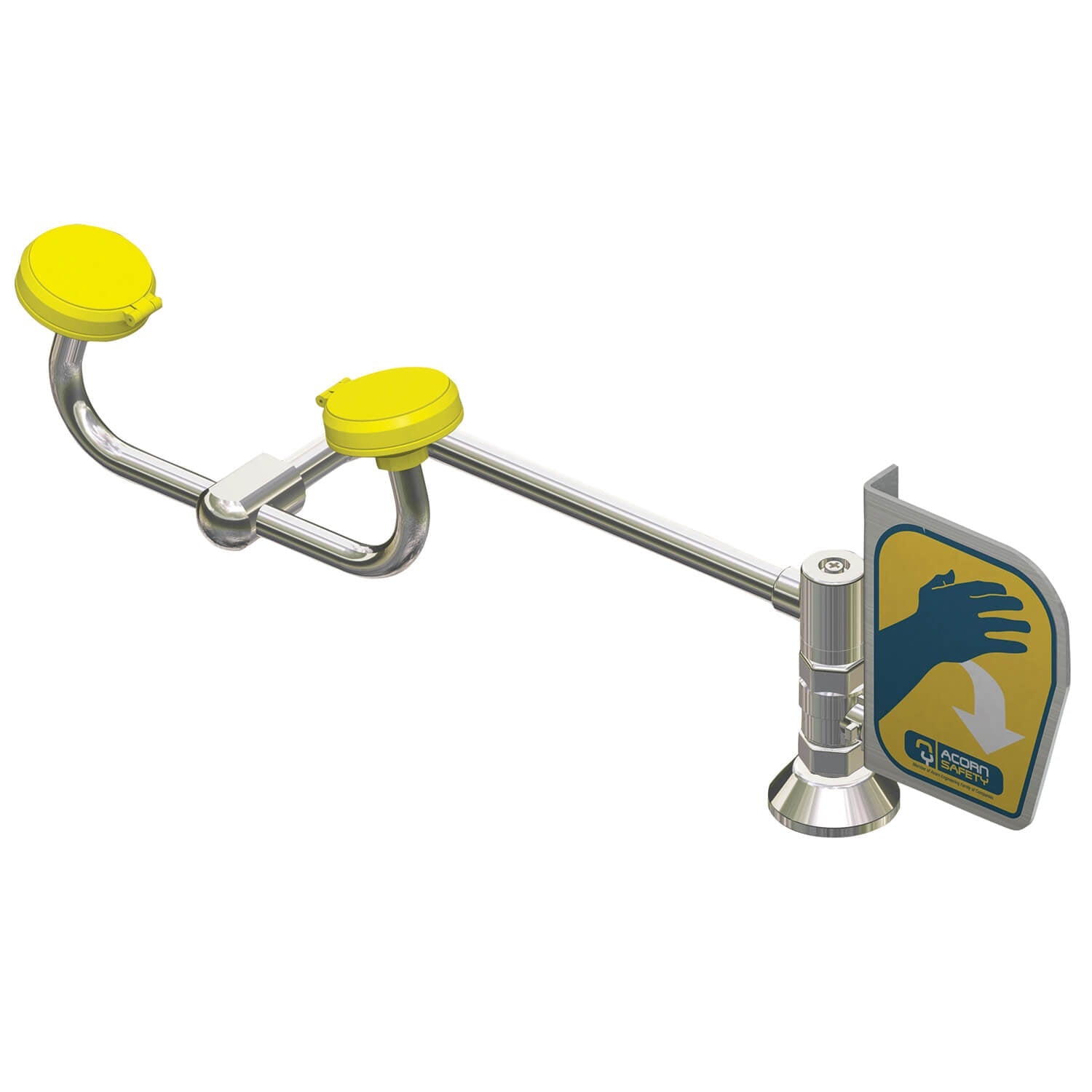

S0A60-RH | Right Hand Configuration

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S0A60 Eye-Face Wash (pdf)
Deck-Mounted, 90-Degree Swivel Eye-Face Wash Station844 KB
PDF icon
Submittals
PDF icon
Submittal S0A60 Eye-Face Wash (pdf)
Deck-Mount, 90� Swivel Eye-Face Wash Station206 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB

Specifications

Fixture TypeEye-Face Wash Station
MountingDeck Mount
InstallationBeside Sink
Eye-Face Wash ActivationPush Handle
Eye-Face Wash Valve TypeStay-Open Ball Valve
Eye-Face Wash Valve Size1/2"
Eye-Face Wash Valve MaterialChrome Plated Brass
Inline Strainer50 Mesh
Supply Inlet1/2" NPT
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Eye-Face Wash BowlNo Bowl
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Swivel Angle90°
Hand ConfigurationLeft or Right
ComplianceANSI Z358.1

Models

S0A60-RH S0A60-RH | Right Hand Configuration

S0A60-LH S0A60-LH | Left Hand Configuration
