Barrier-Free Wall Mount Eye-Face Wash Station with Shrouded Stainless Steel Bowl

In StockThis product is available for quick shipment nationwide.
Model S0480-BF
Installation Instructions
Manual S0480, S0480-BF Eye-Face Wash (pdf)
Submittal
Submittal S0480-BF Eye-Face Wash (pdf)
Model S0480-BF

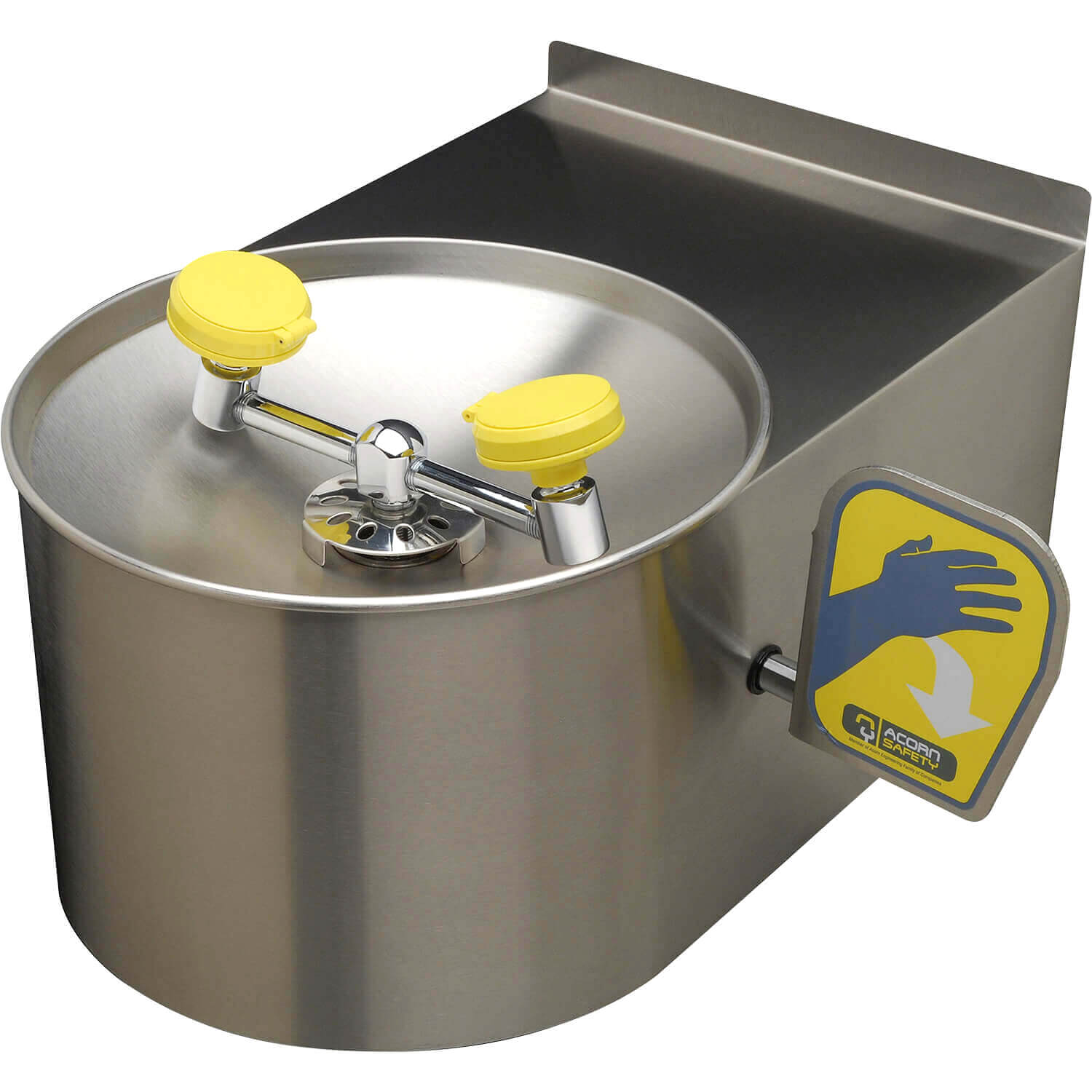

Barrier-Free Wall Mount Eye-Face Wash Station with Shrouded Stainless Steel Bowl

Model S0480-BF is a barrier-free wall-mounted face and eye wash, with a stainless steel bowl and shrouded wrap-around skirt, ABS plastic eye-face wash spray heads, an inline strainer, and a stay-open 1/2" ball valve with a push handle.

Universal Sign: ANSI-compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S0480, S0480-BF Eye-Face Wash (pdf)
Wall Mounted Eye-Face Wash Station with Shrouded Stainless Steel Bowl [S0480 - Standard; S0480-BF | Barrier-Free]609 KB
PDF icon
Submittals
PDF icon
Submittal S0480-BF Eye-Face Wash (pdf)
Barrier-Free Wall Mount Eye-Face Wash Station with Shrouded Stainless Steel Bowl213 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB
RFA icon
BIM/CAD/Revit
RFA icon
S0480-BF Eye-Face Wash Revit Drawing (rfa)
716 KB
ZIP icon
BIM/CAD/Revit
ZIP icon
S0480-BF Eye-Face Wash CAD Drawing (dwg/zip)
652 KB

Specifications

Fixture TypeEye-Face Wash Station
MountingWall Mount
InstallationExposed
Eye-Face Wash ActivationPush Handle
Eye-Face Wash Valve TypeStay-Open Ball Valve
Eye-Face Wash Valve Size1/2"
Eye-Face Wash Valve MaterialChrome Plated Brass
Inline Strainer50 Mesh
Supply Inlet1/2" NPT
Waste Outlet1-1/4" OD Tailpiece
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Eye-Face Wash BowlStainless Steel
Bowl Diameter11-3/4"
Shrouded BowlYes
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Antimicrobial Spray HeadsYes
Barrier-FreeYes
ComplianceANSI Z358.1
ADAConforms (2010 ADA Standards 306, 308)
