Model S0706

Deck Mounted Eyewash Drench Hose with Stay-Open Squeeze Lever

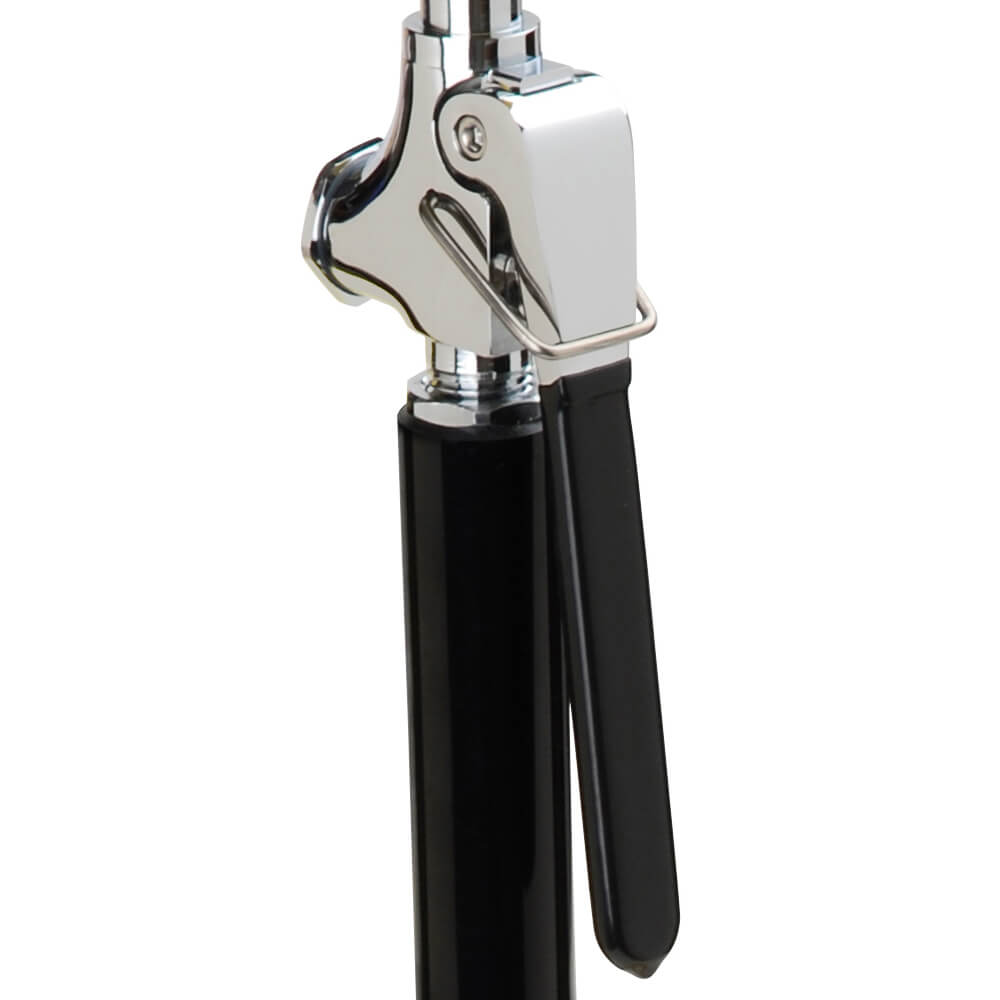

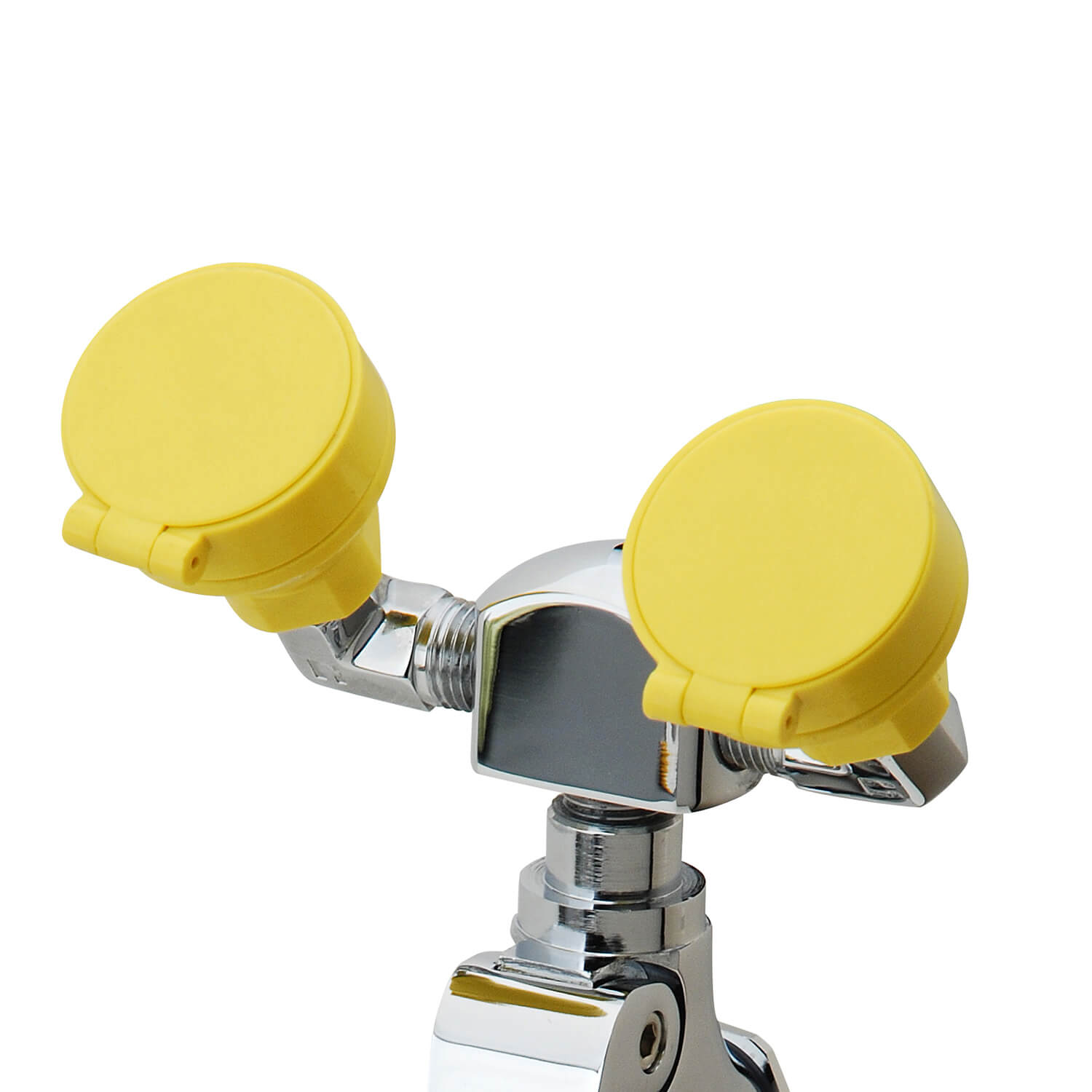

Model S0706 is a deck-mounted eyewash and body drench hose with ABS plastic eyewash spray heads, a stay-open squeeze lever valve, and an eight-foot reinforced PVC hose.

NOTE: Unit complies with the ANSI Z358.1 Standard for both an eyewash and drench hose.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A water proof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S0706 Drench Hose (pdf)
Deck Mounted Eyewash Drench Hose with Stay-Open Squeeze Lever735 KB
PDF icon
Submittals
PDF icon
Submittal S0706 Drench Hose (pdf)
Deck Mounted Eyewash Drench Hose with Stay-Open Squeeze Lever210 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB
RFA icon
BIM/CAD/Revit
RFA icon
S0706 Drench Hose Revit Drawing
336 KB
ZIP icon
BIM/CAD/Revit
ZIP icon
S0706 Drench Hose CAD Drawing
308 KB

Specifications

Fixture TypeEyewash and Drench Hose
MountingDeck Mount
ActivationSqueeze Lever
Valve TypeStay-Open Valve
Valve MaterialChrome Plated Brass
Locking ClipYes
Supply Inlet3/8" NPT
Hose Length8 ft
Hose TypeReinforced PVC
Hose Max Working Pressure300 PSI
Spray Head TypeEyewash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Mounting HardwareDeck Flange with Locator Guide
ComplianceANSI Z358.1 (Eyewash and Drench Hose)
