Model S0704

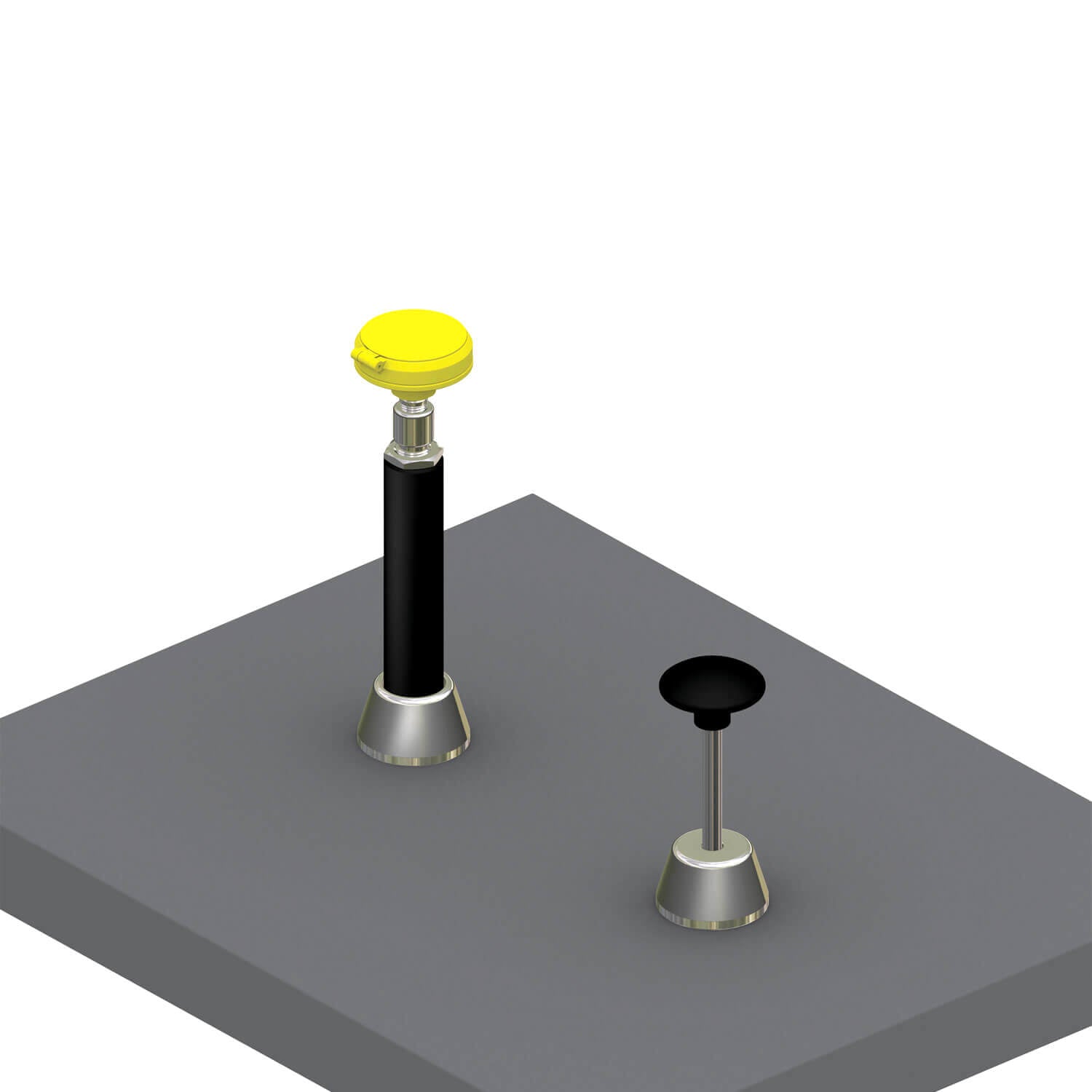

Deck Mounted Drench Hose with Push Panel
Downloads
Specifications
| Fixture Type | Drench Hose |
| Mounting | Deck Mount |
| Activation | Push Handle |
| Valve Type | Stay-Open Ball Valve |
| Valve Size | 1/2" |
| Valve Material | Chrome Plated Brass |
| Supply Inlet | 1/2" NPT |
| Hose Length | 8 ft |
| Hose Type | Reinforced PVC |
| Hose Max Working Pressure | 300 PSI |
| Spray Head Type | Eye-Face Wash |
| Spray Head Material | ABS Plastic |
| Spray Head Flow Control | 1.85 GPM |
| Antimicrobial Spray Heads | Yes |
| Mounting Hardware | Deck Flange with Locator Guide |
| Compliance | ANSI Z358.1 (Supplemental Drench Hose) |
