Model S0702

Deck Mounted Drench Hose with Stay-Open Squeeze Lever

Model S0702 is a deck-mounted eye-face and body drench hose with an ABS plastic eye-face wash spray head, stay-open squeeze lever valve, and an eight-foot(2.44 meter) reinforced PVC hose.

NOTE: ANSI Z358.1 states that drench hoses are used as supplements, but do not replace other types of emergency equipment.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S0701, S0702 Drench Hose (pdf)
Deck Mounted Drench Hose [S0701 | with Self-Closing Squeeze Lever; S0702 | with Stay-Open Squeeze Lever750 KB
PDF icon
Submittals
PDF icon
Submittal S0702 Drench Hose (pdf)
Deck Mounted Drench Hose with Stay-Open Squeeze Lever206 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB

Specifications

Fixture TypeDrench Hose
MountingDeck Mount

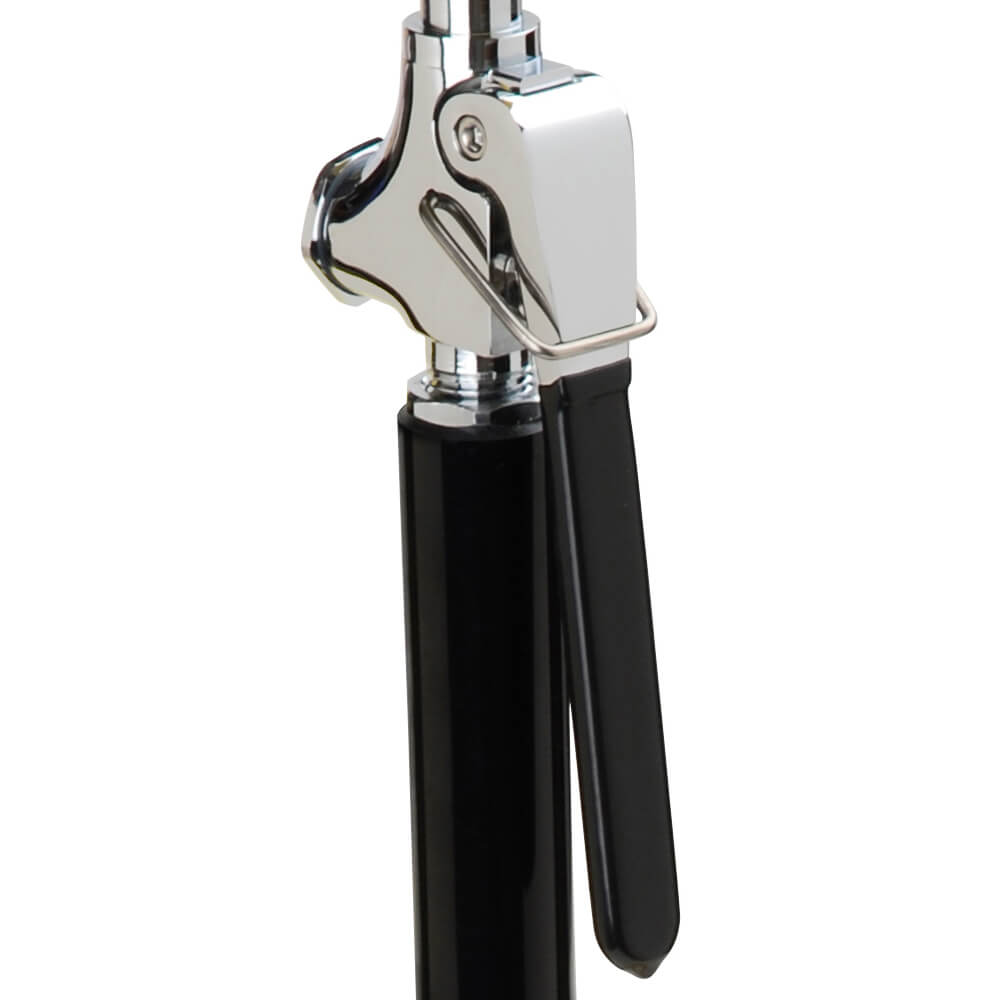

ActivationSqueeze Lever
Valve TypeStay-Open Valve
Valve MaterialChrome Plated Brass
Locking ClipYes
Supply Inlet3/8" NPT
Hose Length8 ft
Hose TypeReinforced PVC
Hose Max Working Pressure300 PSI

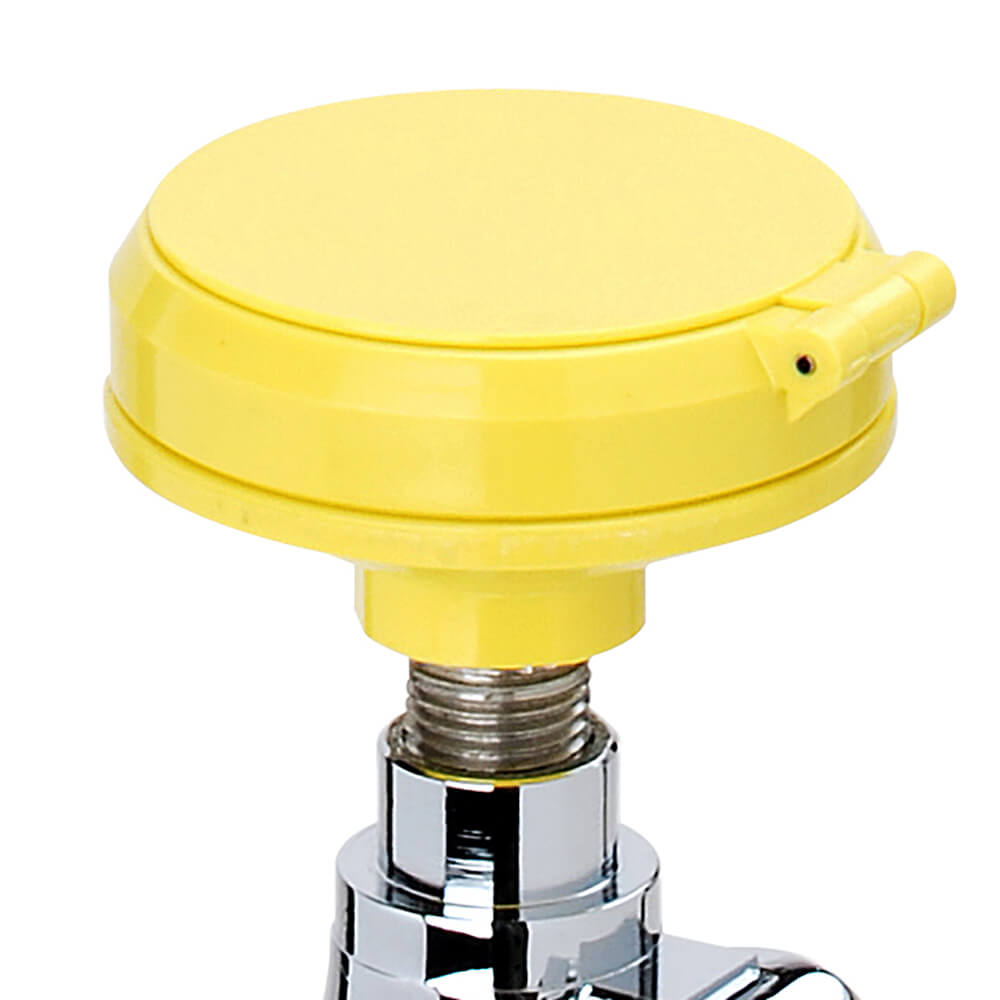

Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control1.85 GPM
Antimicrobial Spray HeadsYes
Mounting HardwareDeck Flange with Locator Guide
ComplianceANSI Z358.1 (Supplemental Drench Hose)
