Wall Mounted Drench Hose with Self-Closing Squeeze Lever

In StockThis product is available for quick shipment nationwide.
Model S0401
Installation Instructions
Manual S0001, S0002, S0401, S0402 Drench Hose (pdf)
Submittal
2 available
Model S0401

Wall Mounted Drench Hose with Self-Closing Squeeze Lever

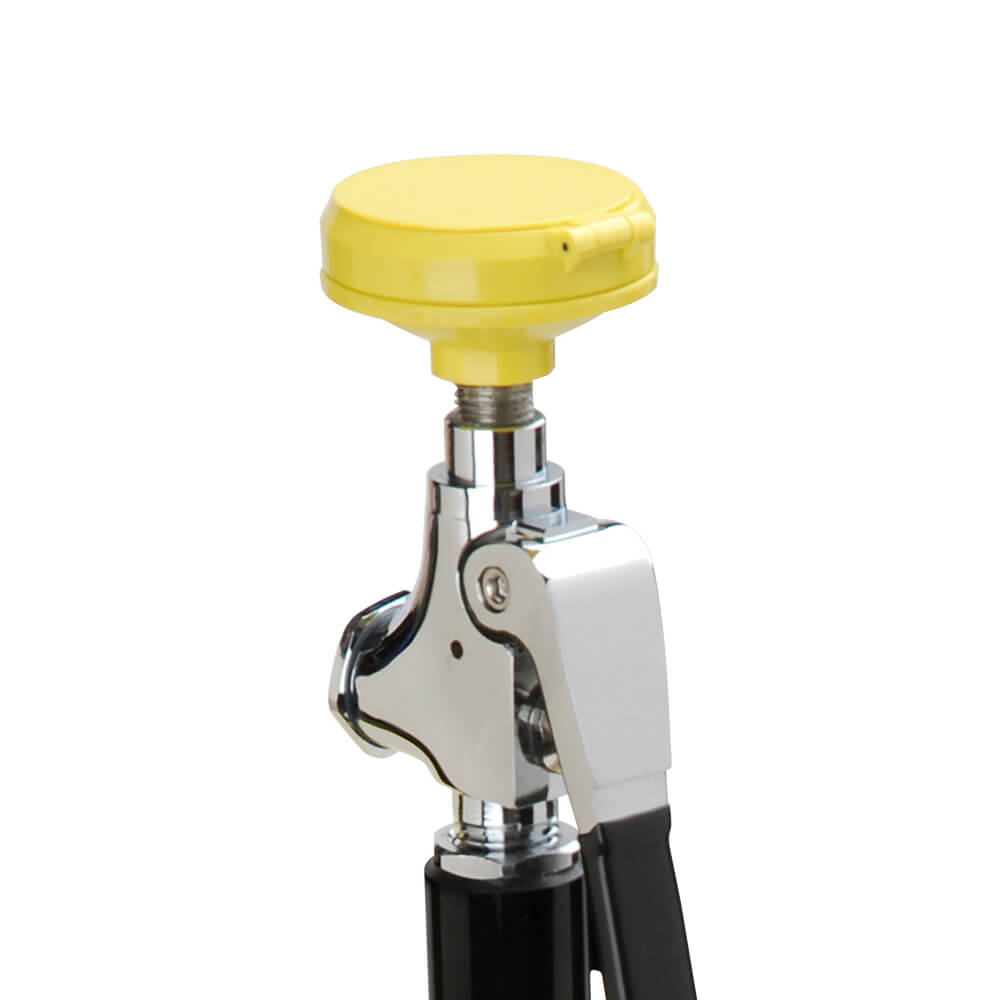

S0401 is a wall-mounted eye-face and body drench hose with an ABS plastic eye-face wash spray head, self-closing squeeze lever valve, and an eight-foot (2.44 meter)reinforced PVC hose.

NOTE: ANSI Z358.1 states that drench hoses are used as supplements, but do not replace other types of emergency equipment.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
DOC icon
Product MasterSpec
DOC icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
170 KB
PDF icon
Installation Instructions
PDF icon
Manual S0001, S0002, S0401, S0402 Drench Hose (pdf)
Drench Hose S0001 | Self-Closing Squeeze Lever; S0002 | Stay-Open Squeeze Lever; S0401 | Self-Closing Squeeze Lever with Compact Wall Mount; S0402 | Stay-Open Squeeze Lever with Compact Wall Mount]728 KB
PDF icon
Submittals
PDF icon
Submittal S0401 Drench Hose (pdf)
Wall Mounted Drench Hose with Self-Closing Squeeze Lever203 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB
PDF icon
Product MasterSpec
PDF icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
177 KB
PDF icon
Submittals
PDF icon
Submittal S0401-CH12 Drench Hose (pdf)

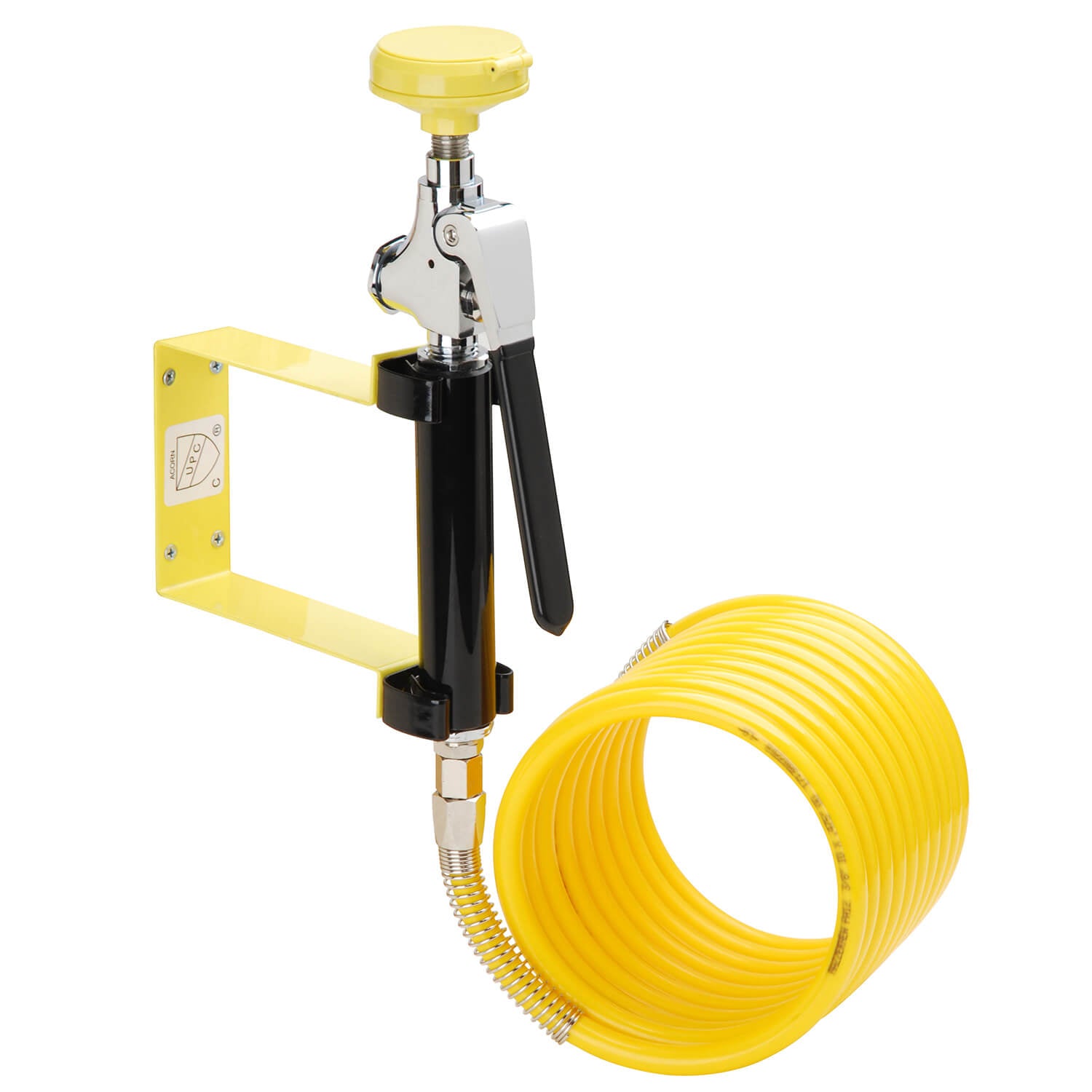

Wall Mounted Drench Hose with Self-Closing Squeeze Lever, 12-Foot Coiled Hose. Extended Mounting Bracket194 KB

Specifications

Fixture TypeDrench Hose
MountingWall Mount
ActivationSqueeze Lever
Valve TypeSelf-Closing Valve
Valve MaterialChrome Plated Brass
Supply Inlet3/8" NPT
Hose Length8 ft
Hose TypeReinforced PVC
Hose Max Working Pressure300 PSI
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control1.85 GPM
Antimicrobial Spray HeadsYes
Mounting HardwareGalvanized Steel Wall Bracket, Yellow Powder Coat
ComplianceANSI Z358.1 (Supplemental Drench Hose)
