Stainless Steel Pedestal Safety Shower with Eye Wash, No Bowl

In StockThis product is available for quick shipment nationwide.
Model S2360
Submittal
Submittal S2360 Drench Shower Combo (pdf)
Model S2360

Stainless Steel Pedestal Safety Shower with Eye Wash, No Bowl

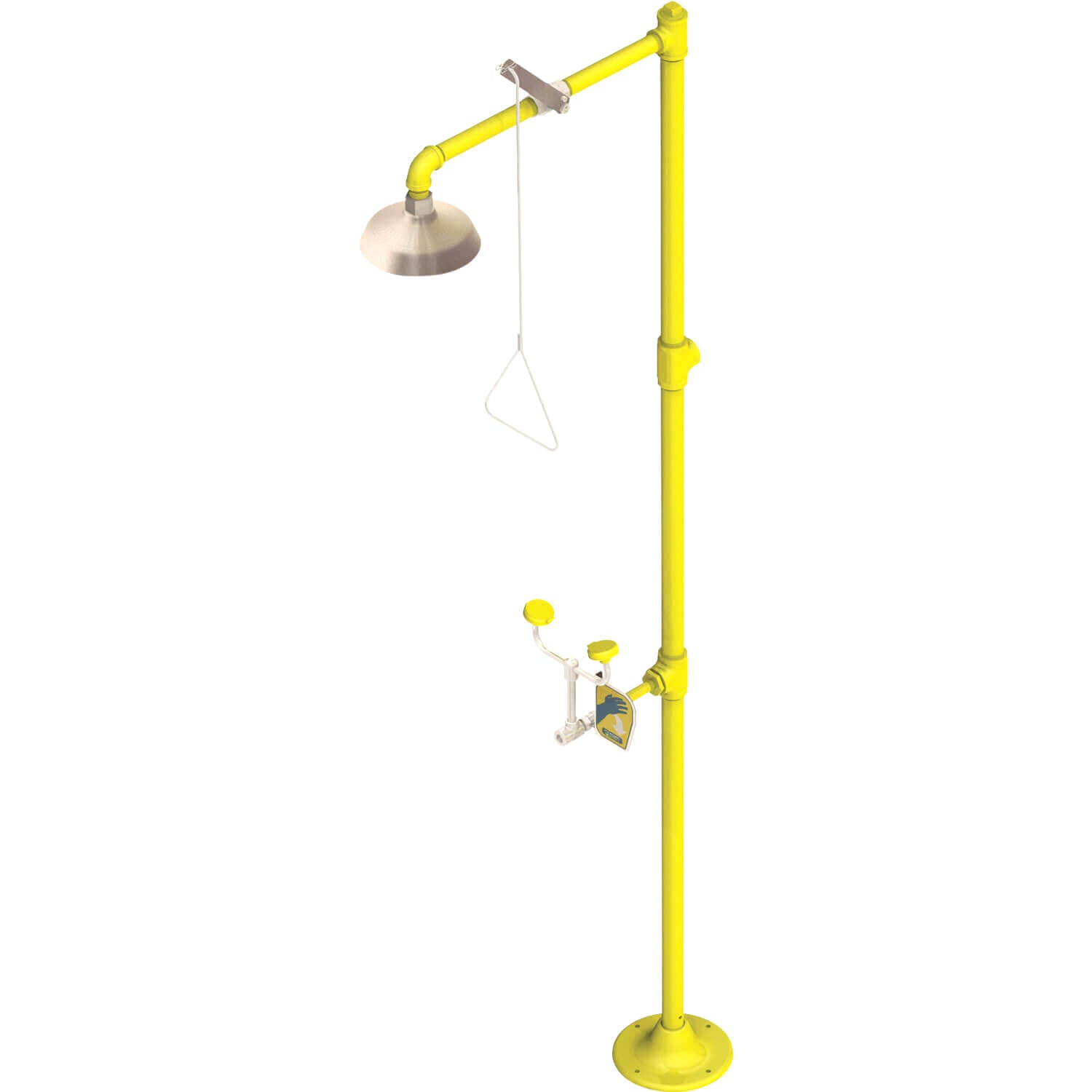

Model S2360 is a pedestal mounted combination station with an eye-face wash, less bowl, ABS plastic eye-face wash spray heads, an inline strainer and a stay-open 1/2" ball valve with a push handle and a shower with a stainless steel showerhead and a 1" stay-open ball valve with a pull rod.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
DOC icon
Product MasterSpec
DOC icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
170 KB
PDF icon
Submittals
PDF icon
Submittal S2360 Drench Shower Combo (pdf)
Stainless Steel Pedestal Safety Shower with Eye-Face Wash, No Bowl308 KB
PDF icon
Technical Data Sheets
PDF icon
Application Data Sheet - High Activation Heaters for Drench Showers (pdf)
High Activation High Capacity Heater for use on Acorn Safety Drench Shower featuring Chronomite Boxer® Heater [ERB-H_3P Series] 933 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB
PDF icon
Product MasterSpec
PDF icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
177 KB

Specifications

Fixture TypeCombination Shower and Eye-Face Wash Station
MountingPedestal Mount
InstallationExposed
Shower ActivationPull Rod
Pull Rod Length29"
Shower Valve TypeStay-Open Ball Valve
Shower Valve Size1"
Shower Valve MaterialChrome Plated Brass
Eye-Face Wash ActivationPush Handle
Eye-Face Wash Valve TypeStay-Open Ball Valve
Eye-Face Wash Valve Size1/2"
Eye-Face Wash Valve MaterialChrome Plated Brass
Inline Strainer50 Mesh
Supply Inlet1-1/4" NPT
Waste Outlet1-1/4" NPT
Shower Flow Rate20 GPM
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Showerhead MaterialStainless Steel
Showerhead Diameter8"
Eye-Face Wash BowlNo Bowl
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Piping MaterialGalvanized Steel
Piping FinishYellow Powder Coat
Floor Flange9-1/8" Cast Iron
ComplianceANSI Z358.1
