Partially Enclosed Decontamination Shower with 16 Chrome Nozzle Heads & Eyewash Drench Hose

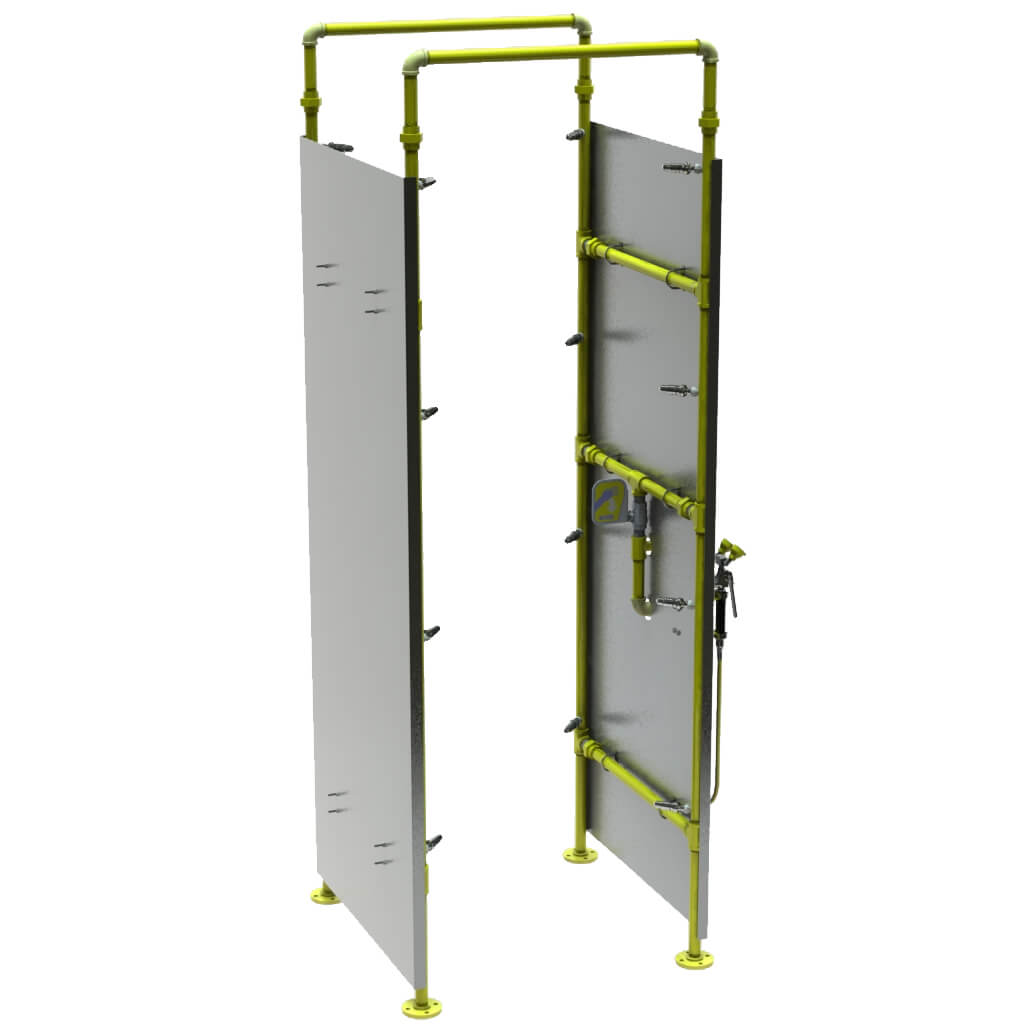

S4306 is a free-standing partially enclosed safety decontamination shower with chrome-plated brass showerheads, a 1" NPT stay-open ball valve with a stainless steel push handle, 16 gauge enclosure panels, and Acorn Safety #S0406 Drench Hose. Compliant to ANSI/ISEA 113-2008.
Showerheads: Chrome plated brass showerheads each with a 2.0 GPM flow regulator.
Valve: 1" NPT rough chrome plated brass stay-open ball valve. The unit is provided with a stainless steel push handle.
Water Supply: 1" NPT female threaded back inlet
Piping & Mounting: Schedule 40 galvanized steel piping and 4-1/2" diameter galvanized floor flanges with a yellow powder-coated finish.
Universal Sign: ANSI compliant, vertical identification signs.
Weekly Test Tag: A water proof test card to record the date and inspector's name for weekly functional testing of the unit.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | 1 MB | |||
| | 397 KB | |||
| | Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/2018 | 5 MB | ||
| | Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 | 1 MB |
Specifications
| Activation | Squeeze Lever |
| Mounting | Handheld |
| Shower Type | Decontamination, Nozzle Shower Sprayheads |
| Valve Type | Stay-Open |
| Hose Spray | Dual Eyewash Spray |
