Heat Traced Pedestal Safety Shower with Eye Wash Station, Less Bowl

In StockThis product is available for quick shipment nationwide.
Model S1360-HT
Installation Instructions
Manual S1360-HT Shower, Eye-Face Wash (pdf)
Submittal
Submittal S1360-HT Eye-Face Wash-Shower (pdf)
Model S1360-HT

Heat Traced Pedestal Safety Shower with Eye Wash Station, Less Bowl

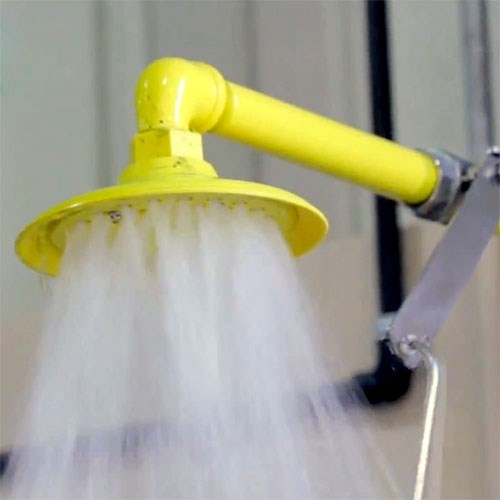

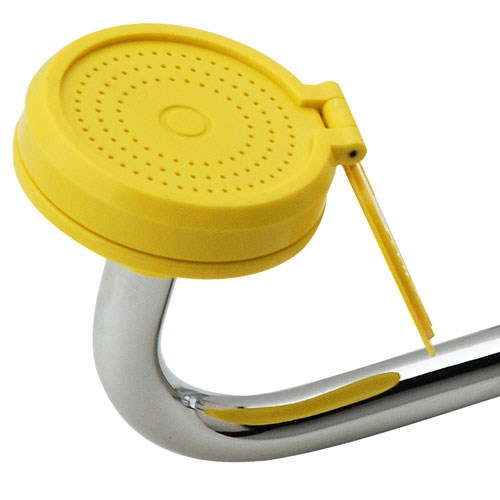

S1360-HT features a heat traced, pedestal-mounted combination station. Unit includes ABS plastic eye-face wash spray heads, inline strainer with stay-open ½" ball valve and push handle; a plastic showerhead, 1" stay-open ball valve with pull rod, a flexible drench hose, and stay-open ½" ball valve with push handle. Unit is insulated and encased in a molded ABS jacket with heat traced cable wrapped around the internal supply pipe with a thermostat to control the heating.

Protection Valve: In the event of electrical failure, the freeze protection valve opens automatically when the internal water temperature drops below 35°.

Electrical System/Heat Cable: A GFCI protected circuit providing single phase 120 VAC, 60 Hz electrical service is required. The fixture is rated 5A @ 0° Fahrenheit ambient temperature. Systems junction box and components are rated for Class 1, Division 2, Groups B, C, and D. Self regulating heat tracing cable is controlled by a thermostat that shuts off the heat when the ambient temperature reaches 55° F. Cable is both FM and CSA approved.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A water proof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S1360-HT Shower, Eye-Face Wash (pdf)
Heat Traced Pedestal Safety Shower with Eye Wash Station, Less Bowl760 KB
PDF icon
Submittals
PDF icon
Submittal S1360-HT Eye-Face Wash-Shower (pdf)
Heat Traced Pedestal Safety Shower with Eye-Face Wash Station, Less Bowl246 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB
RFA icon
BIM/CAD/Revit
RFA icon
S1360-HT Drench Shower Eye-Face Wash Revit Drawing
372 KB
ZIP icon
BIM/CAD/Revit
ZIP icon
S1360-HT Eye-Face Wash-Shower CAD Drawing
425 KB

Specifications

Fixture TypeCombination Shower and Eye-Face Wash Station
MountingPedestal Mount
InstallationExposed
Shower ActivationPull Rod
Pull Rod Length29"
Shower Valve TypeStay-Open Ball Valve
Shower Valve Size1"
Shower Valve MaterialChrome Plated Brass
Eye-Face Wash ActivationPush Handle
Eye-Face Wash Valve TypeStay-Open Ball Valve
Eye-Face Wash Valve Size1/2"
Eye-Face Wash Valve MaterialChrome Plated Brass
Supply Inlet1-1/4" NPT
Shower Flow Rate20 GPM
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Showerhead MaterialABS Plastic
Showerhead Diameter7-3/8"
Antimicrobial ShowerheadYes
Eye-Face Wash BowlNo Bowl
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Drench HoseYes
Drench Hose Length60"
Piping MaterialGalvanized Steel
Floor Flange9-1/8" Cast Iron
InsulationABS Plastic Jacket, 1" Foam Insulation
Freeze-ResistantYes
Freeze ProtectionHeat Traced
Electrical120 VAC, 60 Hz, GFCI-Protected Circuit
Hazardous Location RatingClass 1, Division 2, Groups B, C, D
Minimum Ambient Temperature-50°F
ComplianceANSI Z358.1
