Model S1320-PVC

All-PVC Plastic Head Pedestal Safety Shower with Eye Wash

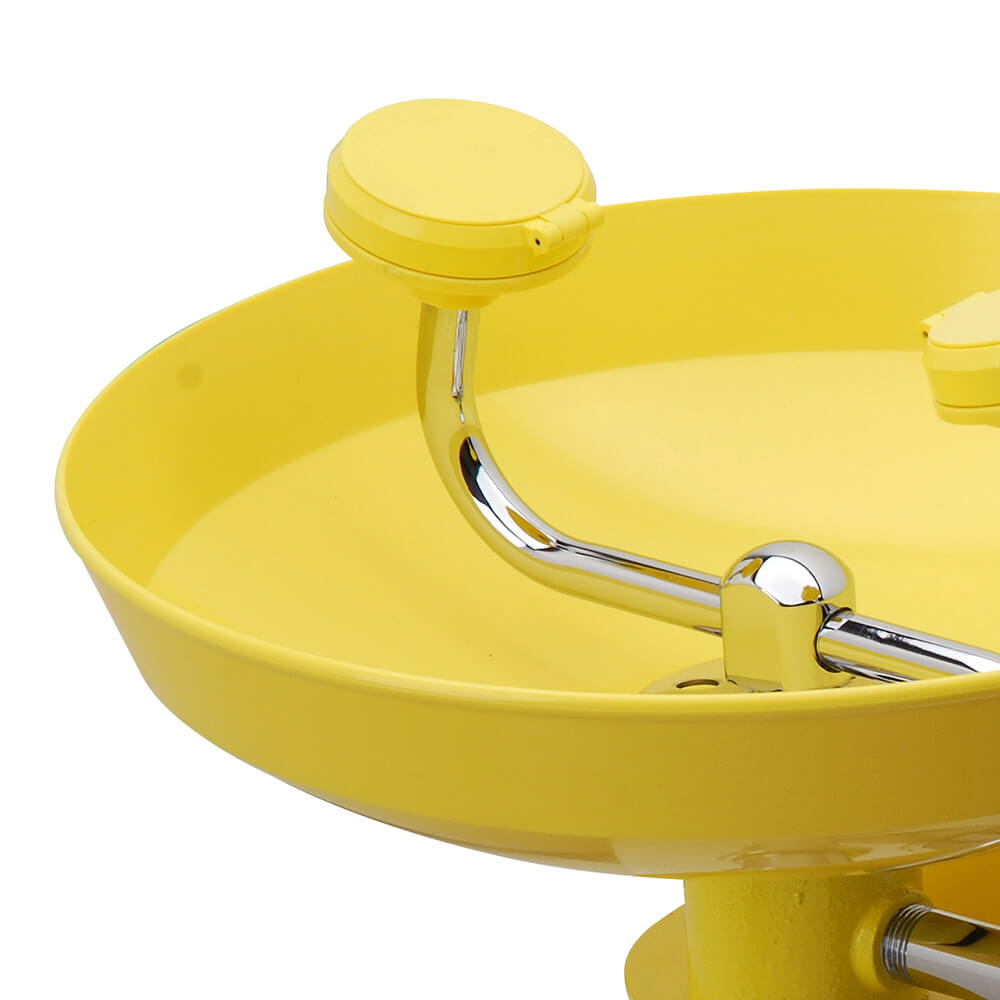

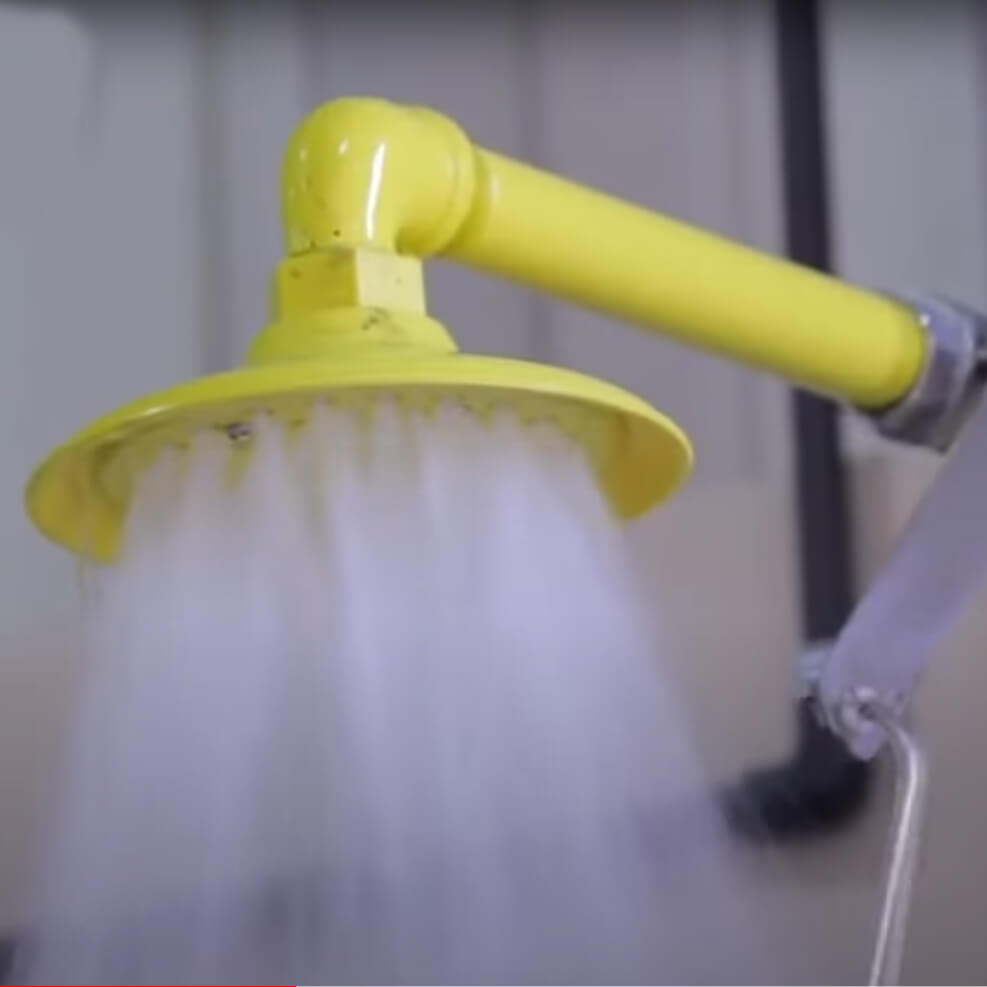

Model S1320-PVC is a pedestal mounted combination station with an eye-face wash, with an ABS plastic bowl, ABS plastic eye-face wash spray heads, a stay-open 3/4" PVC ball valve with a push handle, and a safety shower with a plastic showerhead and a 1" stay-open PVC ball valve with a pull rod. All pipe and pipe fittings are dark gray schedule 80 PVC.

Universal Sign: ANSI compliant, Safety Eye/Wash identification sign.

Weekly Test Tag: A water proof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S1320-PVC Shower, Eye-Face Wash (pdf)
All-PVC Pedestal Emergency Combination Station with Shower and Eye-Face Wash988 KB
PDF icon
Submittals
PDF icon
Submittal S1320-PVC Eye-Face Wash-Shower (pdf)
All-PVC Plastic Head Pedestal Safety Shower with Eye Wash152 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB

Specifications

Fixture TypeCombination Shower and Eye-Face Wash Station
MountingPedestal Mount
InstallationExposed
Shower ActivationPull Rod
Pull Rod Length29"
Shower Valve TypeStay-Open Valve
Shower Valve Size1"
Shower Valve MaterialSchedule 80 PVC
Eye-Face Wash ActivationPush Handle
Eye-Face Wash Valve TypeStay-Open Valve
Eye-Face Wash Valve Size3/4"
Eye-Face Wash Valve MaterialSchedule 80 PVC
Supply Inlet2" Schedule 80 PVC Socket
Waste Outlet1-1/2" Schedule 80 PVC Socket
Shower Flow Rate20 GPM
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Showerhead MaterialABS Plastic
Showerhead Diameter7-3/8"
Antimicrobial ShowerheadYes
Eye-Face Wash BowlABS Plastic
Bowl Diameter11-3/4"
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Piping MaterialSchedule 80 PVC
Piping FinishDark Gray
Floor Flange7" Schedule 80 PVC
ComplianceANSI Z358.1
