Plastic Head Pedestal Safety Shower with Plastic Bowl Eye-Face Wash Station

In StockThis product is available for quick shipment nationwide.
Model S1320
Installation Instructions
2 available
Submittal
3 available
Model S1320

Plastic Head Pedestal Safety Shower with Plastic Bowl Eye-Face Wash Station

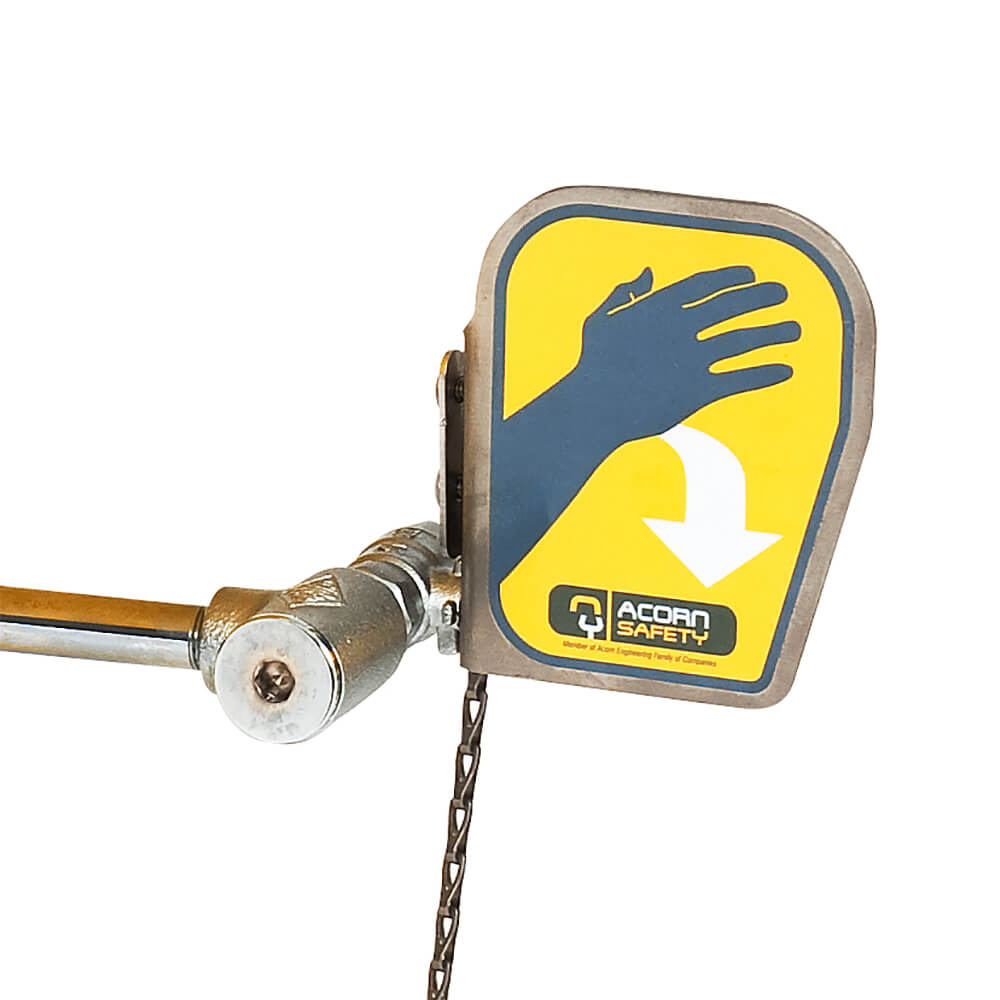

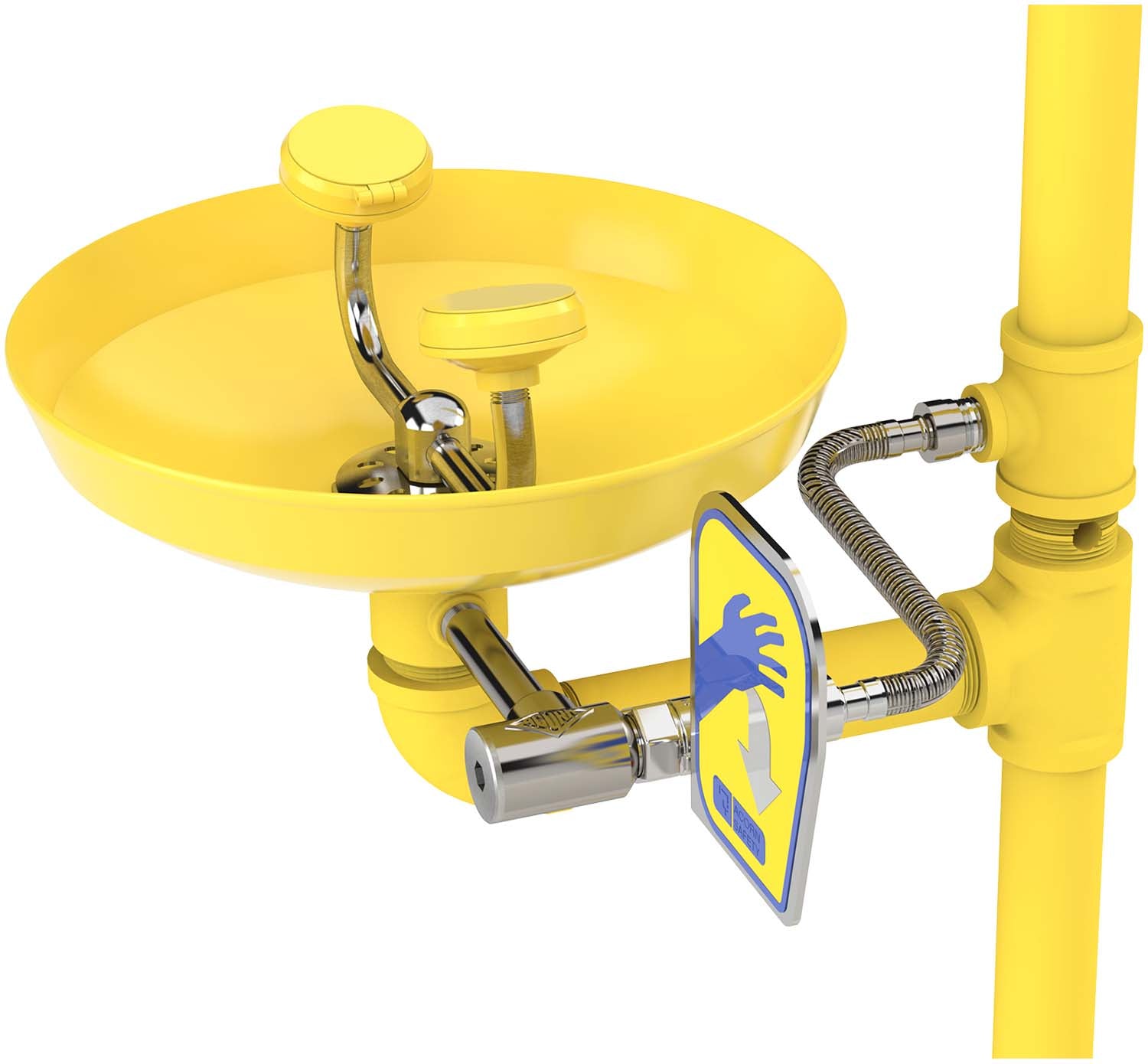

S1320 is a pedestal-mounted combination station with an eye-face wash, with a plastic bowl, ABS plastic eye-face wash spray heads, an inline strainer, and a stay-open 1/2" ball valve with a push handle and a shower with a plastic showerhead and a 1" (25.4 mm) stay-open ball valve with a pull rod.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A water proof test card to record the date and inspector's name for weekly functional testing of the unit.

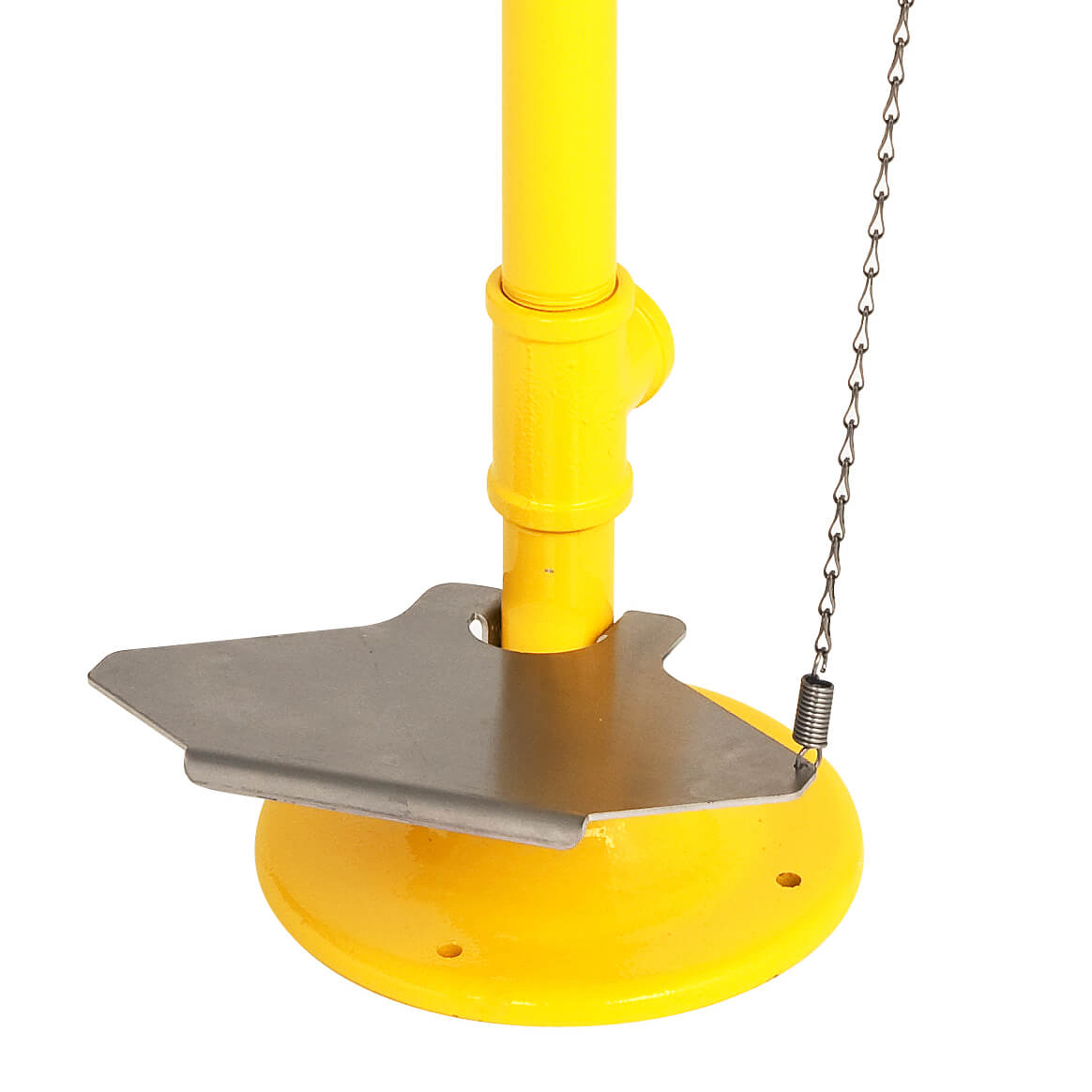

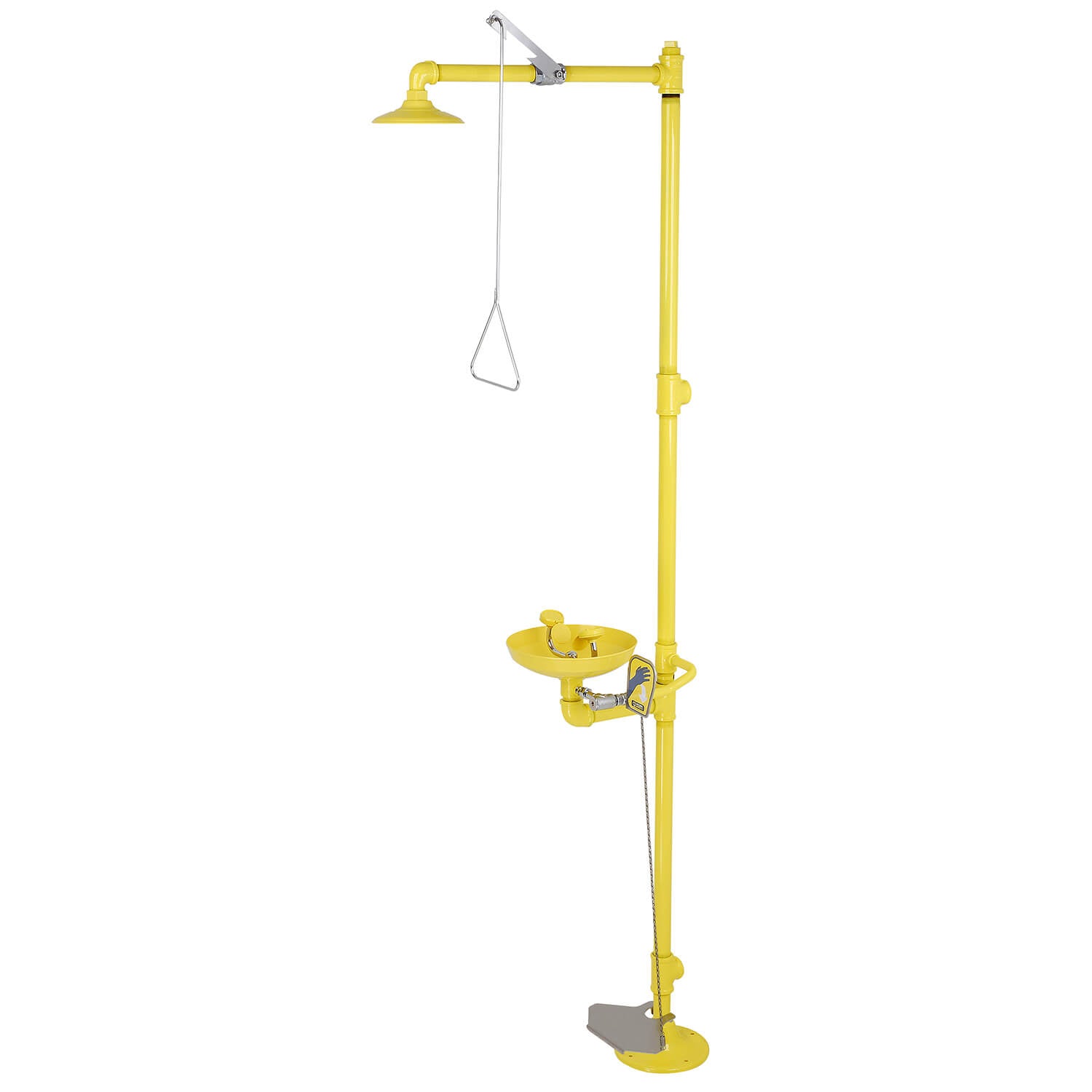

S1320-HFC: Model S1320 combination station is supplied with a hand-foot control providing the option of activating the eye-face wash with a foot pedal in addition to the push handle. The stainless steel foot pedal is provided with a bracket for mounting to the vertical pipe and a stainless steel chain is attached to the push handle.

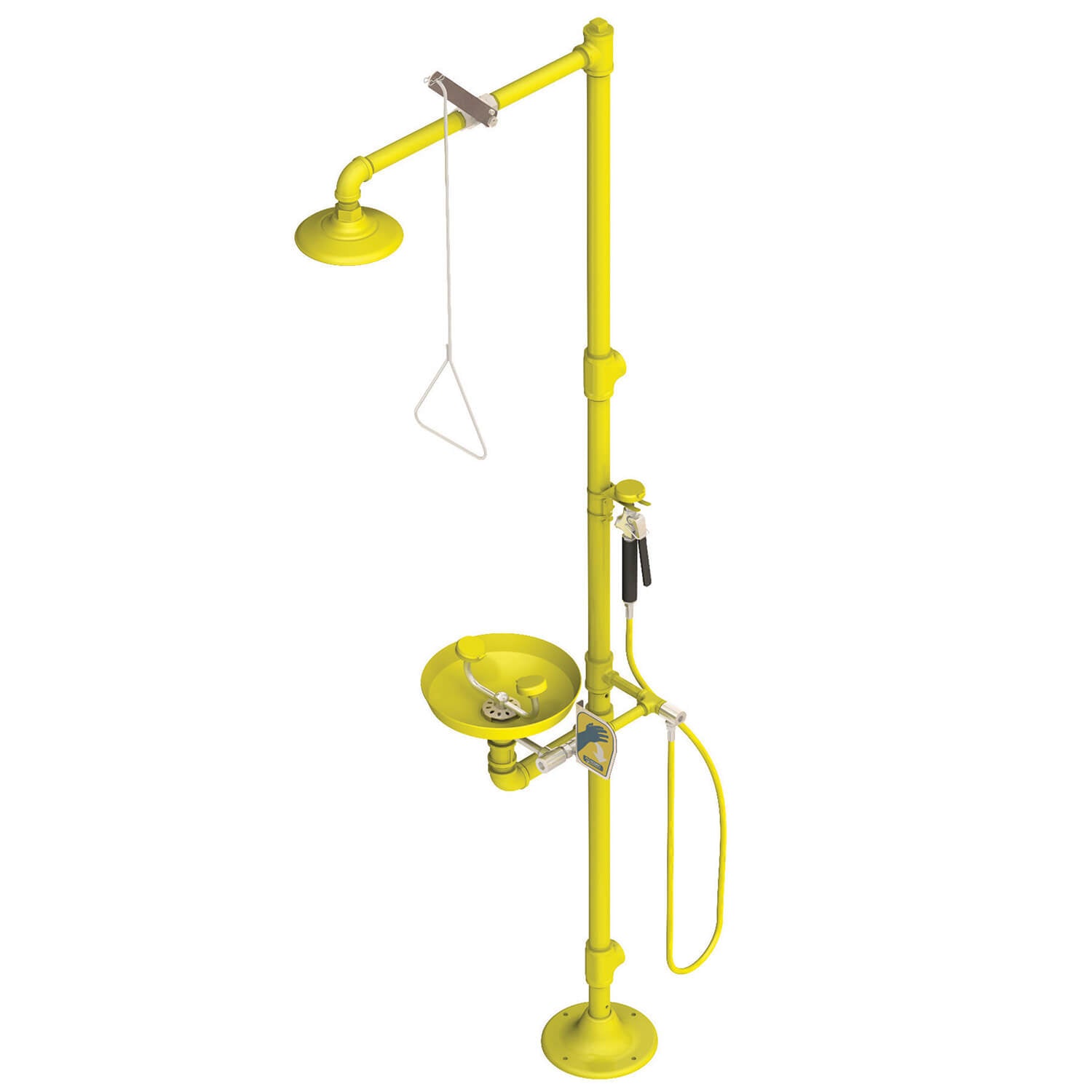

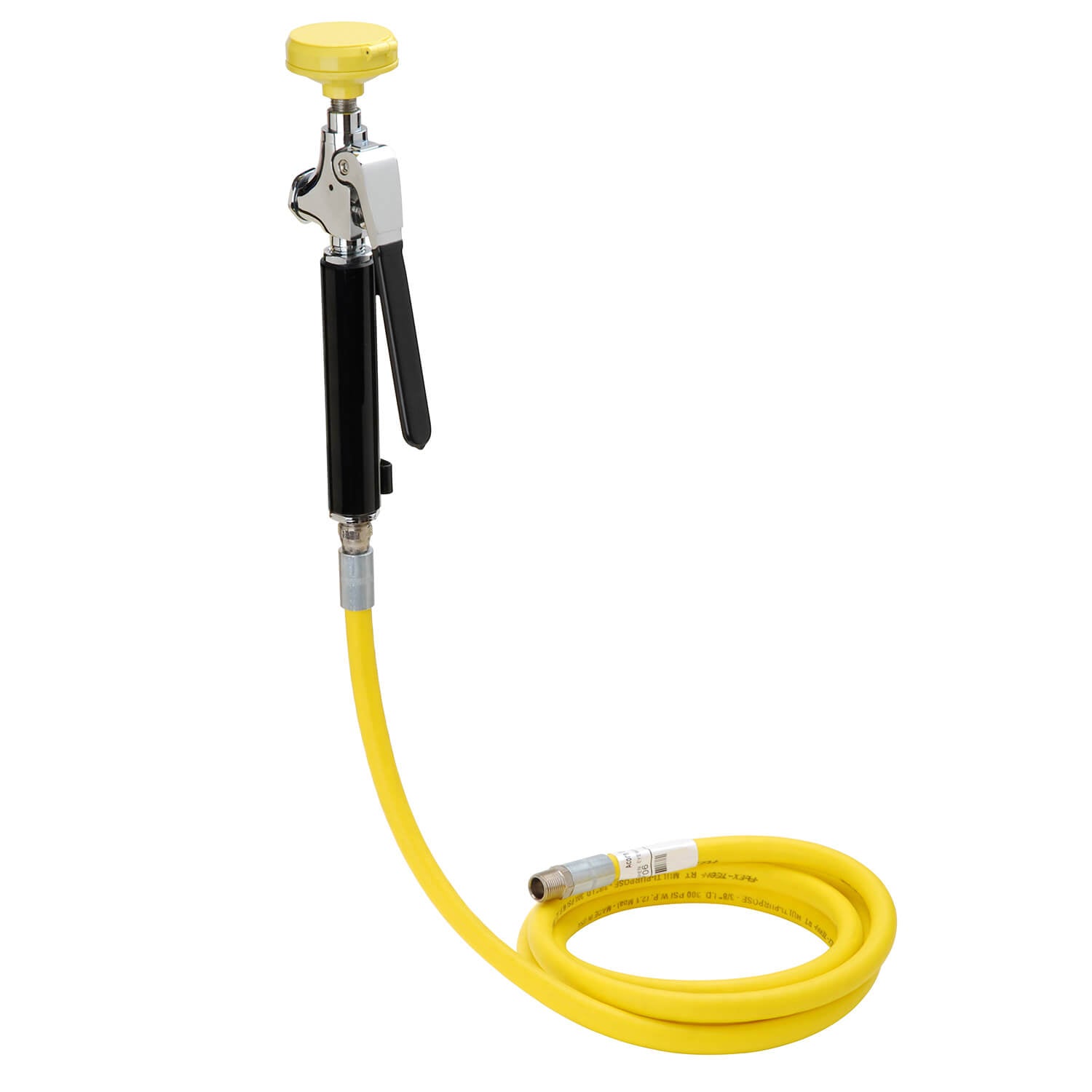

S1321: Model S1320 combination station is provided with an eye-face and a body drench hose. The Drench Hose features a single ABS plastic eye-face wash spray head, a self-closing squeeze lever valve, and an eight-foot (2.44 meter) reinforced PVC hose.

Downloads

Resource Type
Title
Description
File Size
Action
DOC icon
Product MasterSpec
DOC icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
170 KB
PDF icon
Installation Instructions
PDF icon
Manual S1320, S1340, S2320, S2340 Shower, Eye-Face Wash (pdf)
Pedestal Emergency Combination Station with Shower-Eye-Face Wash [S1320 | Plastic Showerhead - Plastic Eye-Face Wash Bowl; S1340 | Plastic Showerhead - Stainless Steel Eye-Face Wash Bowl; S2320 | Stainless Steel Showerhead - Plastic Eye-Face Wash Bowl; S2340 | Stainless Steel Showerhead - Stainless Steel Eye-Face Wash Bowl]769 KB
PDF icon
Submittals
PDF icon
Submittal S1320 Eye-Face Wash-Shower (pdf)
Plastic Head Pedestal Safety Shower with Plastic Bowl Eye-Face Wash Station182 KB
PDF icon
Submittals
PDF icon
Submittal S1320-HFC Eye-Face Wash-Shower (pdf)
Plastic Head Pedestal Safety Shower with Plastic Bowl Eye-Face Wash Station, Hand-Foot Control Assembly204 KB
PDF icon
Submittals
PDF icon
Submittal S1321 Eye-Face Wash-Shower (pdf)
Plastic Head Pedestal Safety Shower with Plastic Bowl Eye-Face Wash Station, Drench Hose, Self-Closing Squeeze Lever305 KB
PDF icon
Installation Instructions
PDF icon
Manual Accessory S0000-HFC (pdf)
Hand-Foot Control Assembly139 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB
PDF icon
Brochures/Flyers
PDF icon
Kwik Ship General Brochure (pdf)
Save time with many models that shipped fully or mostly assembled. Products are in stock and locally available for quick delivery.7 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Kwik Ship Spec Sheet (pdf)
Why Safety® Emergency Eye Face Wash and Showers? S0420 Wall Mount Eye Face Wash, S0320 Pedestal Mount Eye Face Wash, S2160-PE21-RA-PAN, S1320, S2340-AS-BF Combo Eye Face Wash Showers2 MB
PDF icon
Product MasterSpec
PDF icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
177 KB
ZIP icon
BIM/CAD/Revit
ZIP icon
S1320, S1340, S2320, S2340 Eye-Face Wash-Shower CAD Drawing
2 MB
ZIP icon
BIM/CAD/Revit
ZIP icon
S1320, S1340, S2320, S2340 Eye-Face Wash-Shower Revit Drawing
2 MB

Specifications

Fixture TypeCombination Shower and Eye-Face Wash Station
MountingPedestal Mount
InstallationExposed
Shower ActivationPull Rod
Pull Rod Length29"
Shower Valve TypeStay-Open Ball Valve
Shower Valve Size1"
Shower Valve MaterialChrome Plated Brass
Eye-Face Wash ActivationPush Handle
Eye-Face Wash Valve TypeStay-Open Ball Valve
Eye-Face Wash Valve Size1/2"
Eye-Face Wash Valve MaterialChrome Plated Brass
Inline Strainer50 Mesh
Supply Inlet1-1/4" NPT
Waste Outlet1-1/4" NPT
Shower Flow Rate20 GPM
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI

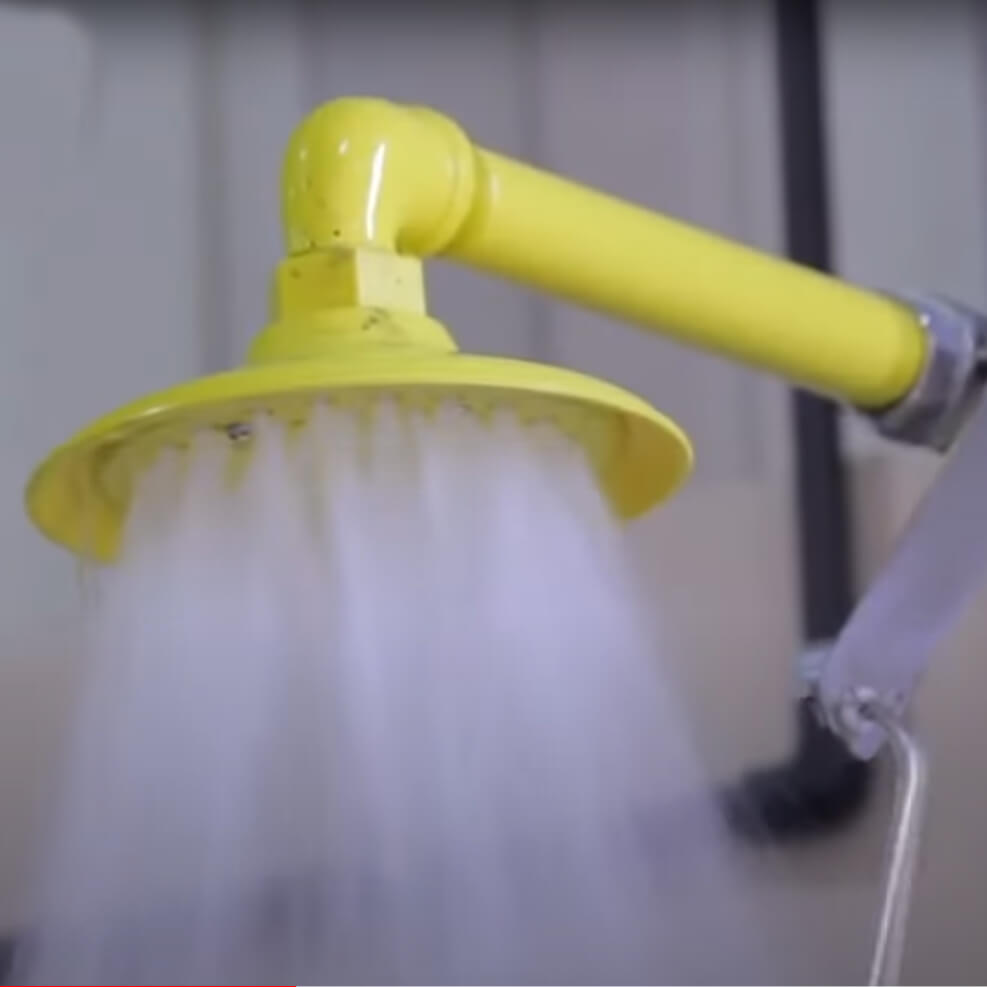

Showerhead MaterialABS Plastic
Showerhead Diameter7-3/8"
Antimicrobial ShowerheadYes

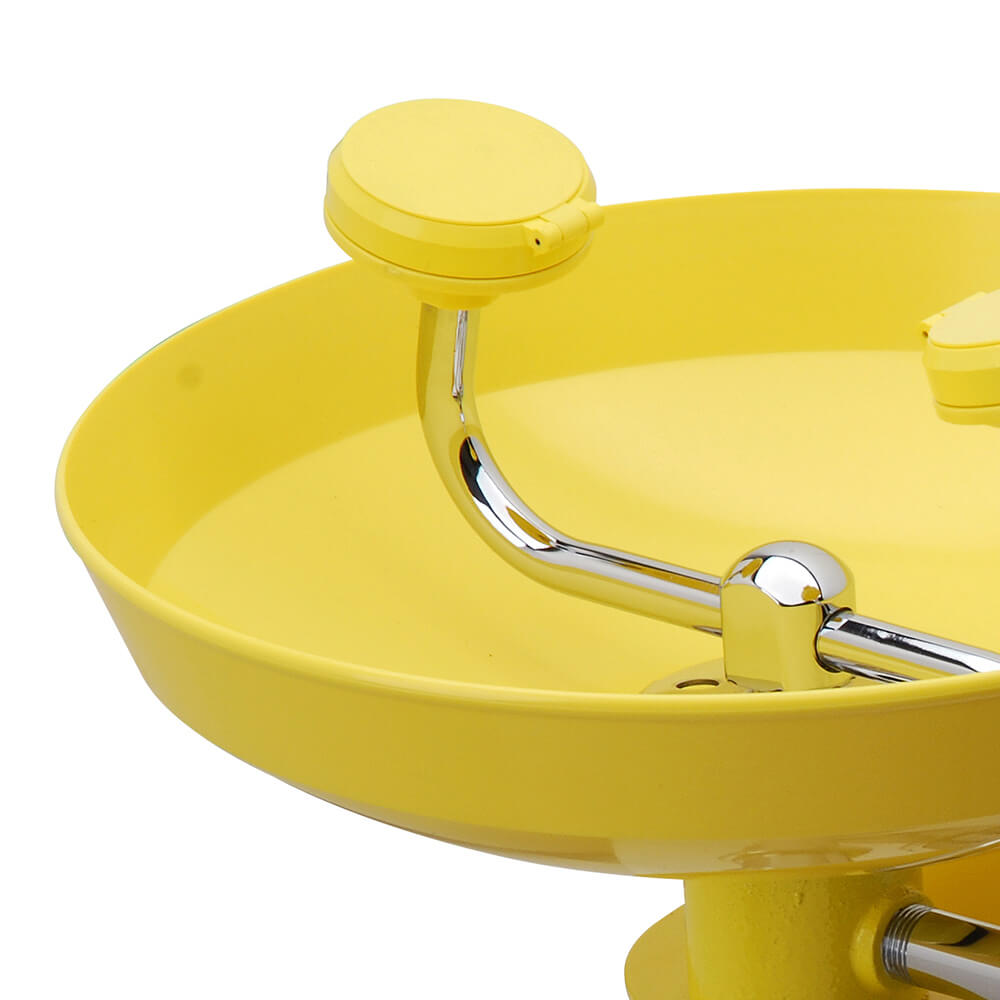

Eye-Face Wash BowlABS Plastic
Bowl Diameter11-3/4"
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Piping MaterialGalvanized Steel
Piping FinishYellow Powder Coat
Floor Flange9-1/8" Cast Iron
ComplianceANSI Z358.1
