Flush Mounted Stainless Steel Safety Ceiling Shower with Recessed Eye-Face Wash

In StockThis product is available for quick shipment nationwide.
Model S3160-PAN-RA
Installation Instructions
Manual S2160-PE-RA, S2260-RA, S3160-RA Shower, Eye-Face Wash (pdf)
Submittal
Submittal S3160-RA Safety Shower with Eye-Face Wash (pdf)
Model S3160-PAN-RA

Flush Mounted Stainless Steel Safety Ceiling Shower with Recessed Eye-Face Wash

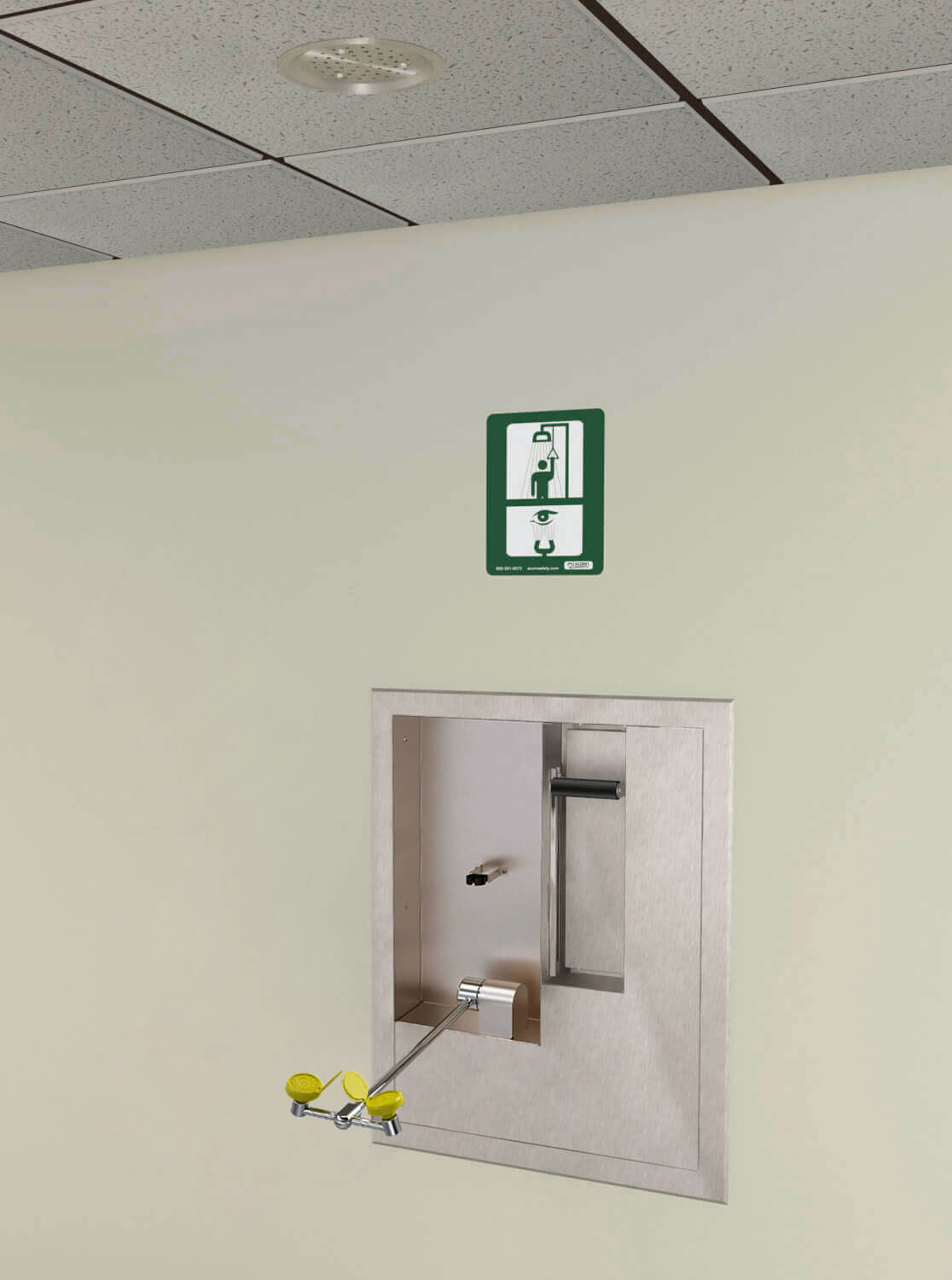

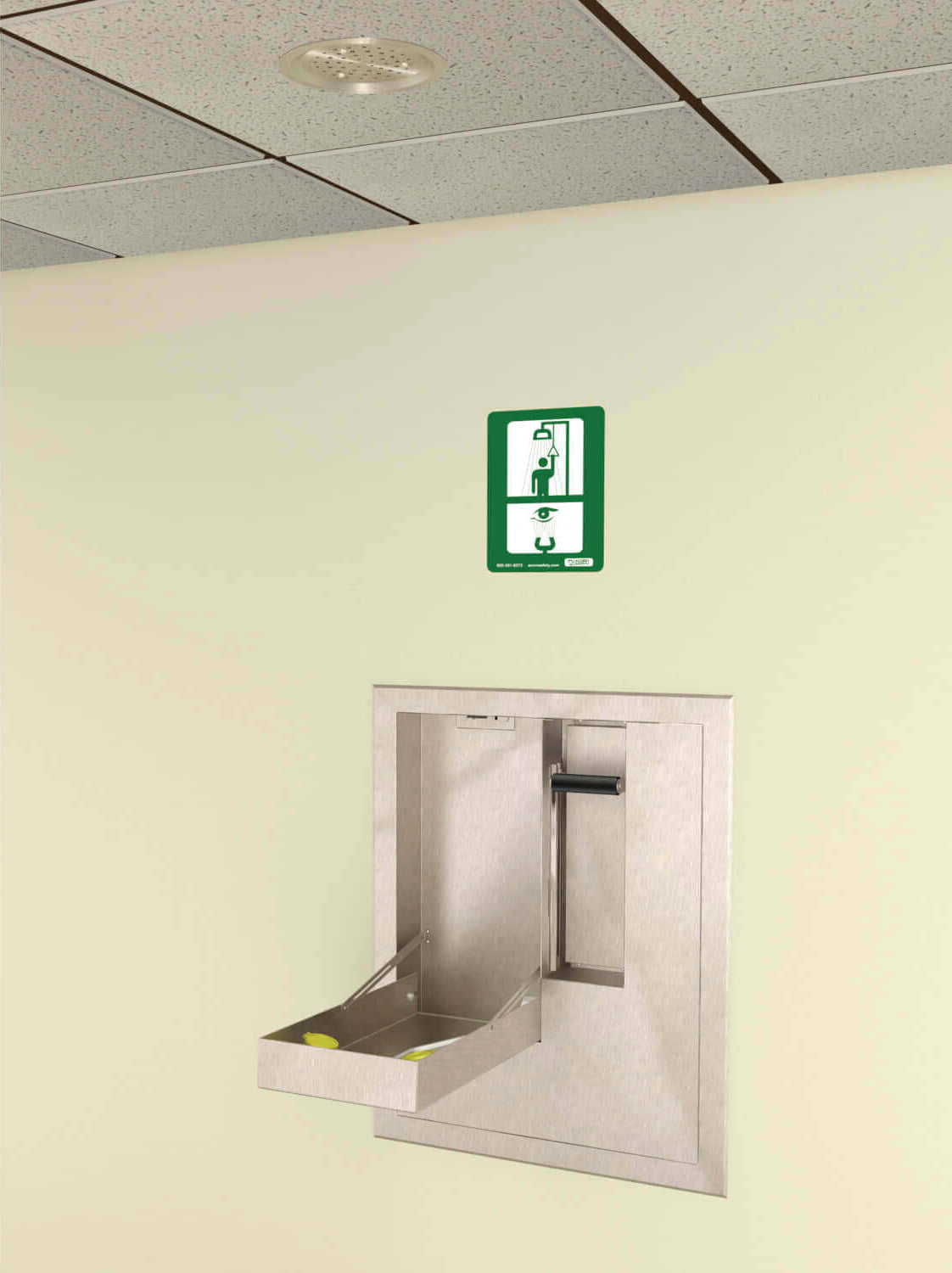

Model S3160-RA is a barrier-free, recessed activated, eye-face wash with ABS plastic eye-face wash spray heads and a vertically mounted emergency shower with a recessed stainless steel showerhead. eye-face wash swings down over the floor from the recessed cabinet and the water flow is activated automatically. The eye-face wash flow is terminated once the unit has been swung back up into its original position for storage.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S2160-PE-RA, S2260-RA, S3160-RA Shower, Eye-Face Wash (pdf)
Stainless Steel Safety Shower with Eye-Face Wash in Recessed Cabinet [S2160-PE21-RA | Barrier-Free, Vertical Shower with 21-Inch Pipe Extension; S2260 | Horizontal Shower; S3200-RA | Flush Ceiling Shower] includes Option -PAN | Waste Water Drain Pan (for Eye-Face Wash)]364 KB
PDF icon
Submittals
PDF icon
Submittal S3160-RA Safety Shower with Eye-Face Wash (pdf)
Flush Mounted Stainless Steel Safety Ceiling Shower with Recessed Eye-Face Wash277 KB

Specifications

Fixture TypeCombination Shower and Eye-Face Wash Station
MountingVertical Mount
InstallationFlush Ceiling
Shower ActivationRecessed Actuator
Shower Valve TypeStay-Open Ball Valve
Shower Valve Size1"
Shower Valve MaterialChrome Plated Brass
Valve EnclosureRecessed Stainless Steel, Vandal-Resistant Access Panel
Eye-Face Wash ActivationSwing-Down
Eye-Face Wash Valve TypeSwing-Down Valve
Eye-Face Wash Valve Material316 Stainless Steel
Inline Strainer50 Mesh
Supply Inlet1" NPT
Eye-Face Wash Supply Inlet1/2" NPT

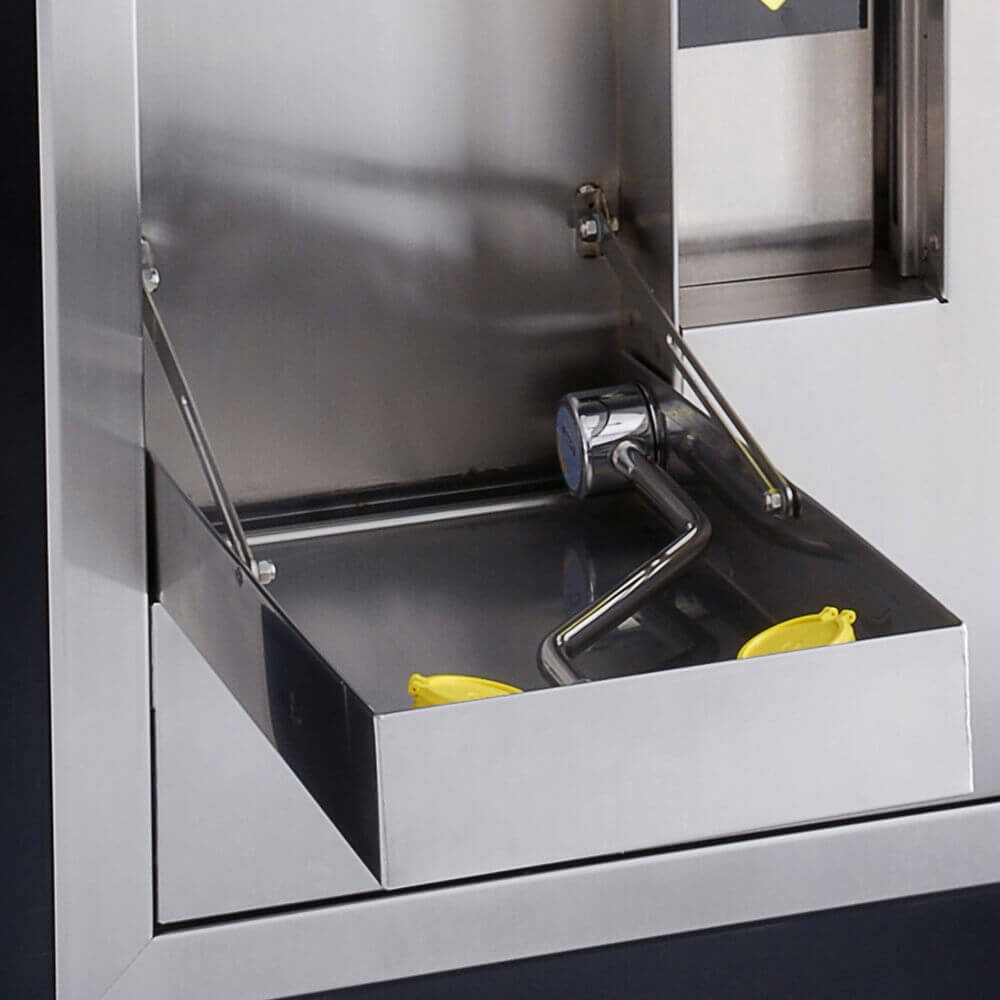

Drain PanIncluded
Waste Outlet2"
Shower Flow Rate20 GPM
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Showerhead MaterialStainless Steel
Showerhead Diameter8-7/8"
Eye-Face Wash BowlNo Bowl
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Barrier-FreeYes
ComplianceANSI Z358.1
