Stainless Steel Safety Shower with Surface-Mounted Eye Wash

In StockThis product is available for quick shipment nationwide.
Model S2460-PAN-RA
Installation Instructions
Manual S2460-PAN-RA Shower, Eye-Face Wash (pdf)
Submittal
Submittal S2460-RA Drench Shower Combo (pdf)
Model S2460-PAN-RA

Stainless Steel Safety Shower with Surface-Mounted Eye Wash

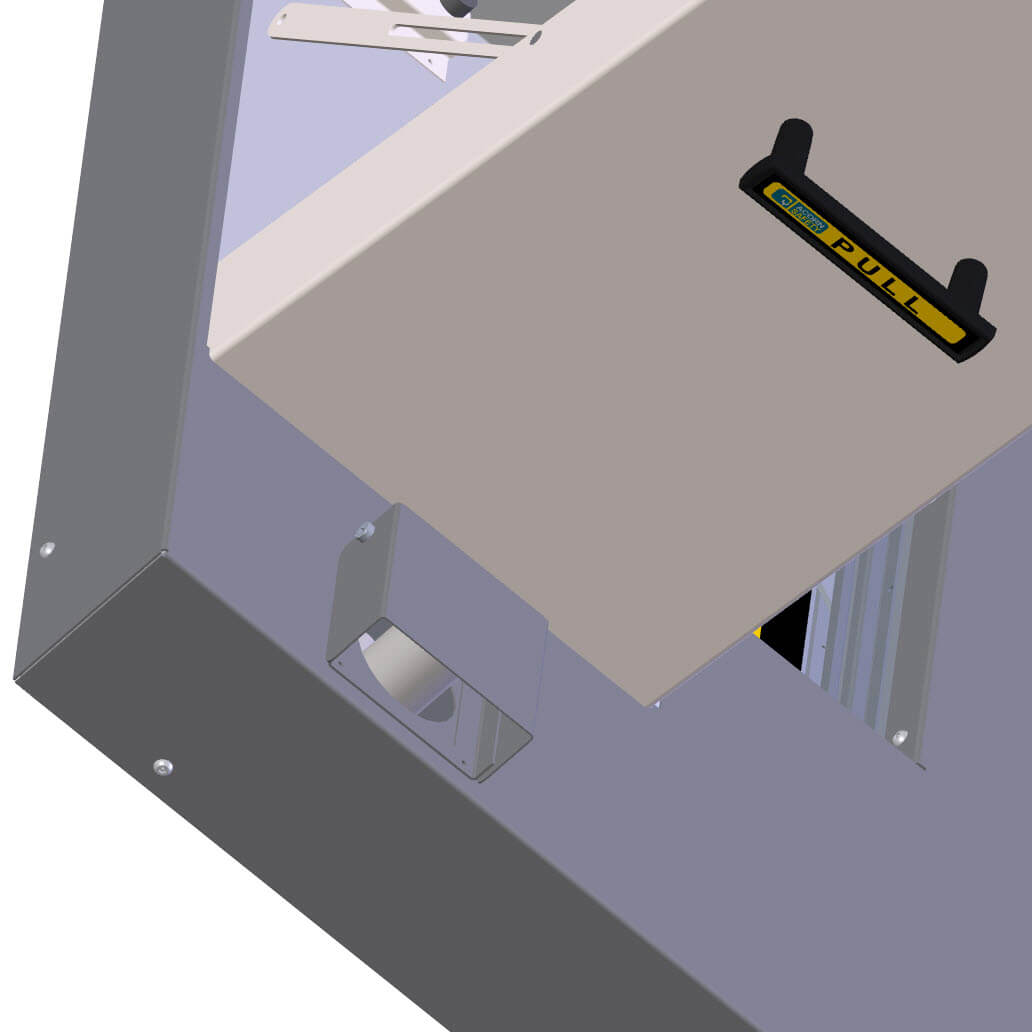

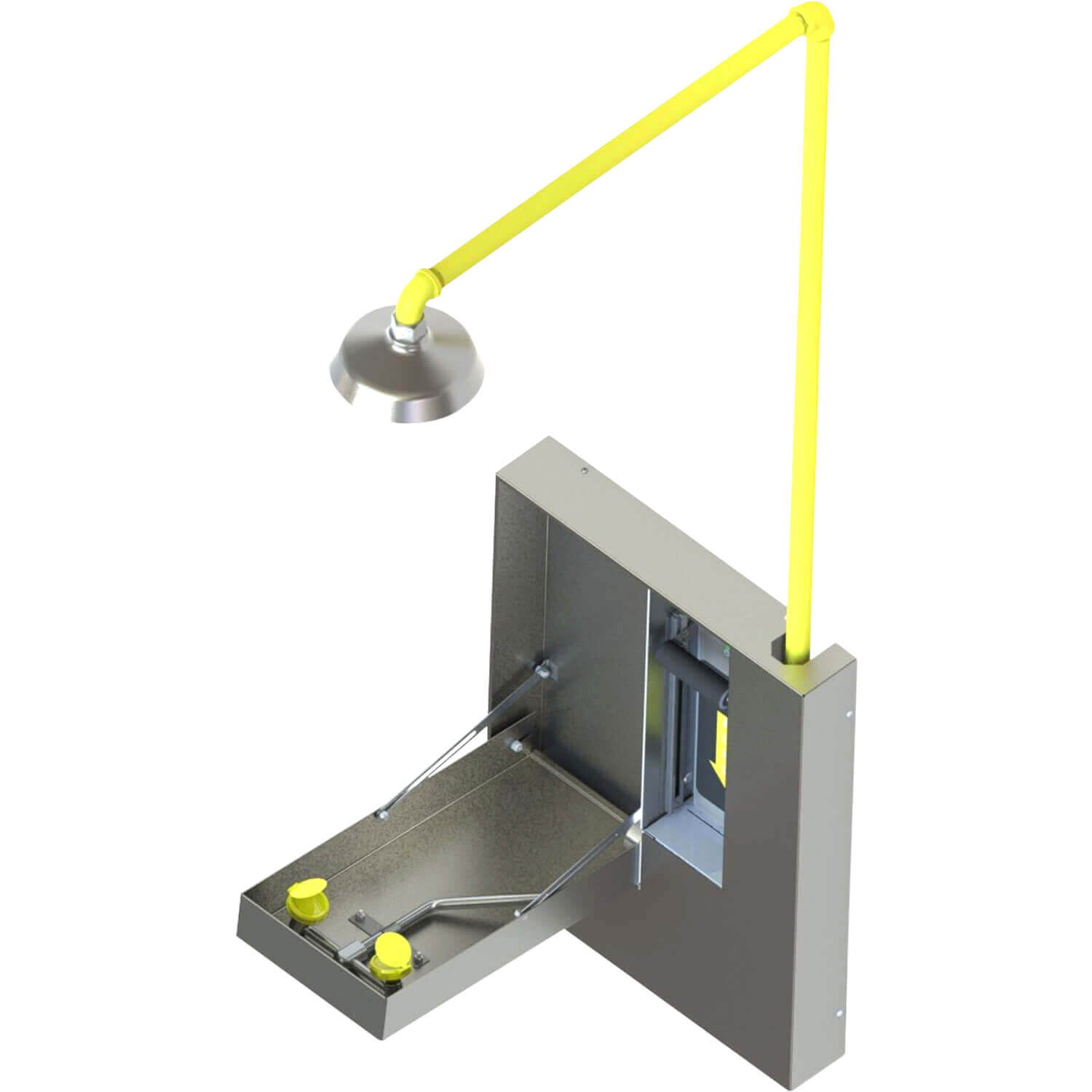

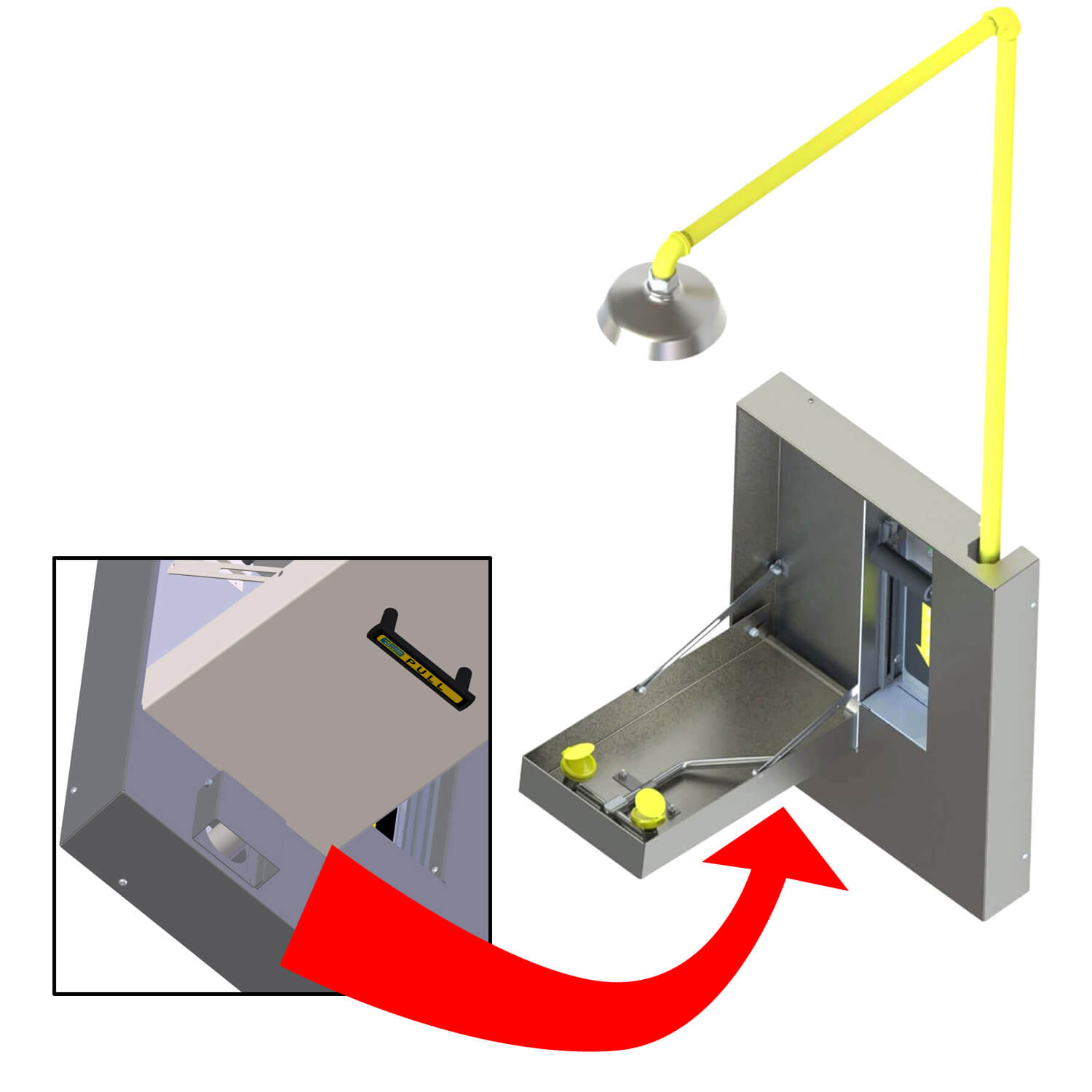

Model S2460-PAN-RA is a barrier-free, wall-mounted, eye-face wash with ABS plastic eye-face wash spray heads and a horizontally mounted emergency shower with a stainless steel showerhead. eye-face wash swings down over the floor from the wall-mounted cabinet and the water flow is activated automatically. The eye-face wash flow is terminated once the unit has been swung back up into its original position for storage.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S2460-PAN-RA Shower, Eye-Face Wash (pdf)
Stainless Steel Safety Shower with Surface-Mounted Cabinet Eye-Face Wash includes Option -FOP | Front Outlet Port802 KB
PDF icon
Submittals
PDF icon
Submittal S2460-RA Drench Shower Combo (pdf)
Stainless Steel Safety Shower with Surface-Mounted Eye-Face Wash198 KB
PDF icon
Technical Data Sheets
PDF icon
Application Data Sheet - High Activation Heaters for Drench Showers (pdf)
High Activation High Capacity Heater for use on Acorn Safety Drench Shower featuring Chronomite Boxer® Heater [ERB-H_3P Series] 933 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB

Specifications

Fixture TypeCombination Shower and Eye-Face Wash Station
MountingHorizontal Mount
InstallationExposed
Shower ActivationRecessed Actuator
Shower Valve TypeStay-Open Ball Valve
Shower Valve Size1"
Shower Valve MaterialChrome Plated Brass
Valve EnclosureSurface-Mounted Stainless Steel, Vandal-Resistant Access Panel
Eye-Face Wash ActivationSwing-Down
Eye-Face Wash Valve TypeSwing-Down Valve
Eye-Face Wash Valve Material316 Stainless Steel
Inline Strainer50 Mesh
Supply Inlet1" NPT
Eye-Face Wash Supply Inlet1/2" NPT
Drain PanIncluded
Waste Outlet2"
Shower Flow Rate20 GPM
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Showerhead MaterialStainless Steel
Showerhead Diameter8"
Eye-Face Wash BowlNo Bowl
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Piping MaterialGalvanized Steel
Piping FinishYellow Powder Coat
Barrier-FreeYes
ComplianceANSI Z358.1
