Frost-Proof Stainless Steel Pedestal Safety Shower with Eye Wash

In StockThis product is available for quick shipment nationwide.
Model S2340-FPB
Installation Instructions
Manual S1340-FPB and S2340-FPB Shower, Eye-Face Wash (pdf)
Submittal
Submittal S2340-FPB Drench Shower Combo (pdf)
Model S2340-FPB

Frost-Proof Stainless Steel Pedestal Safety Shower with Eye Wash

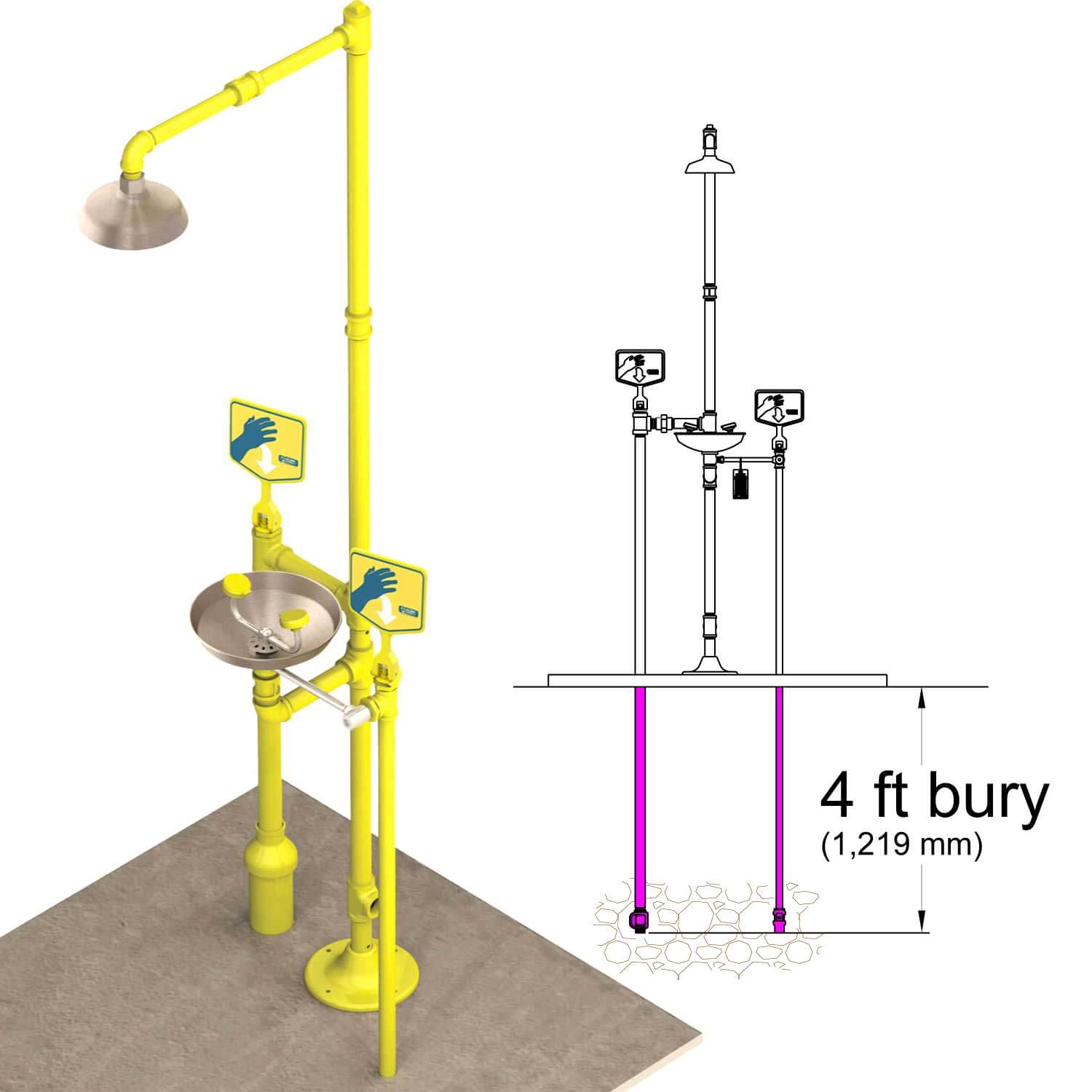

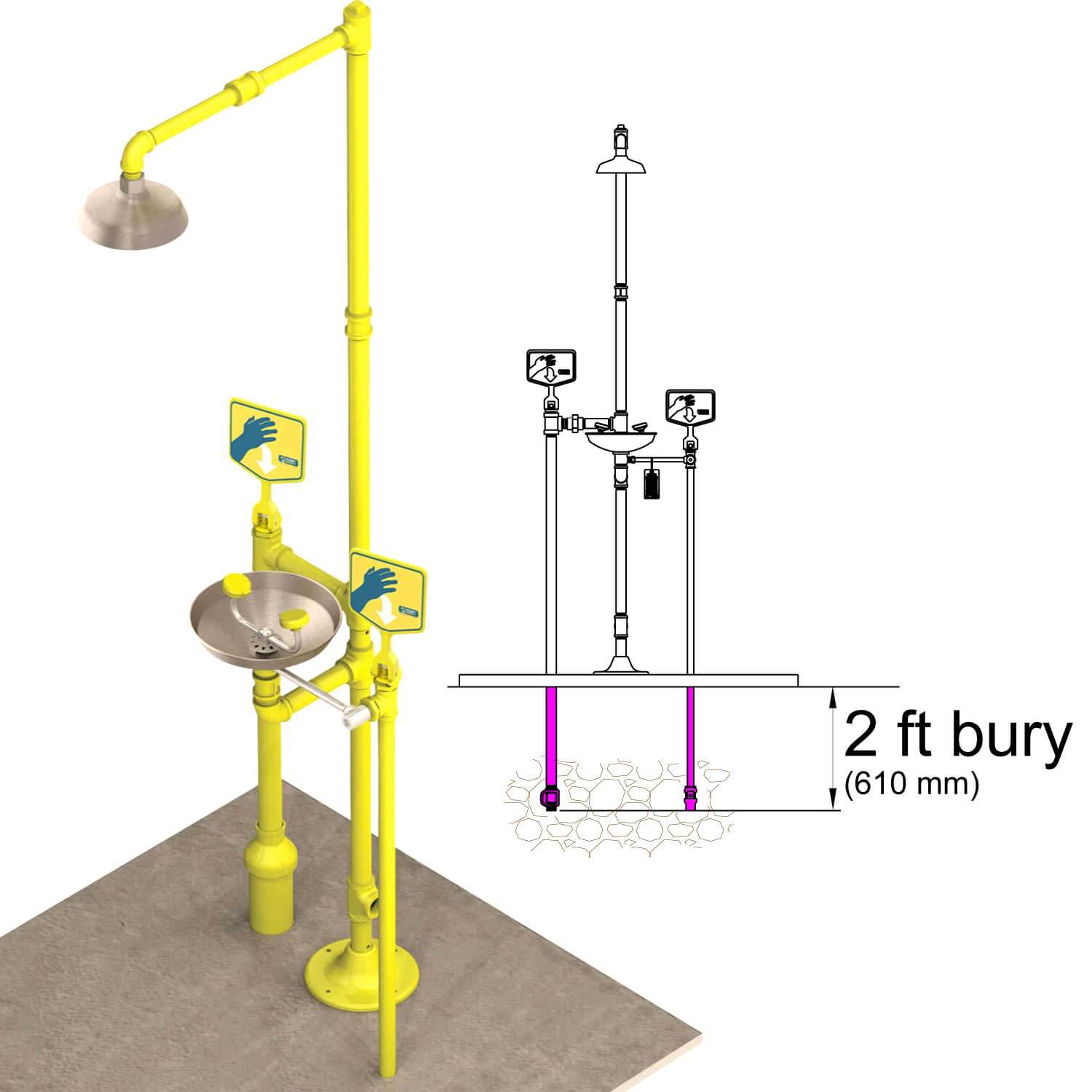

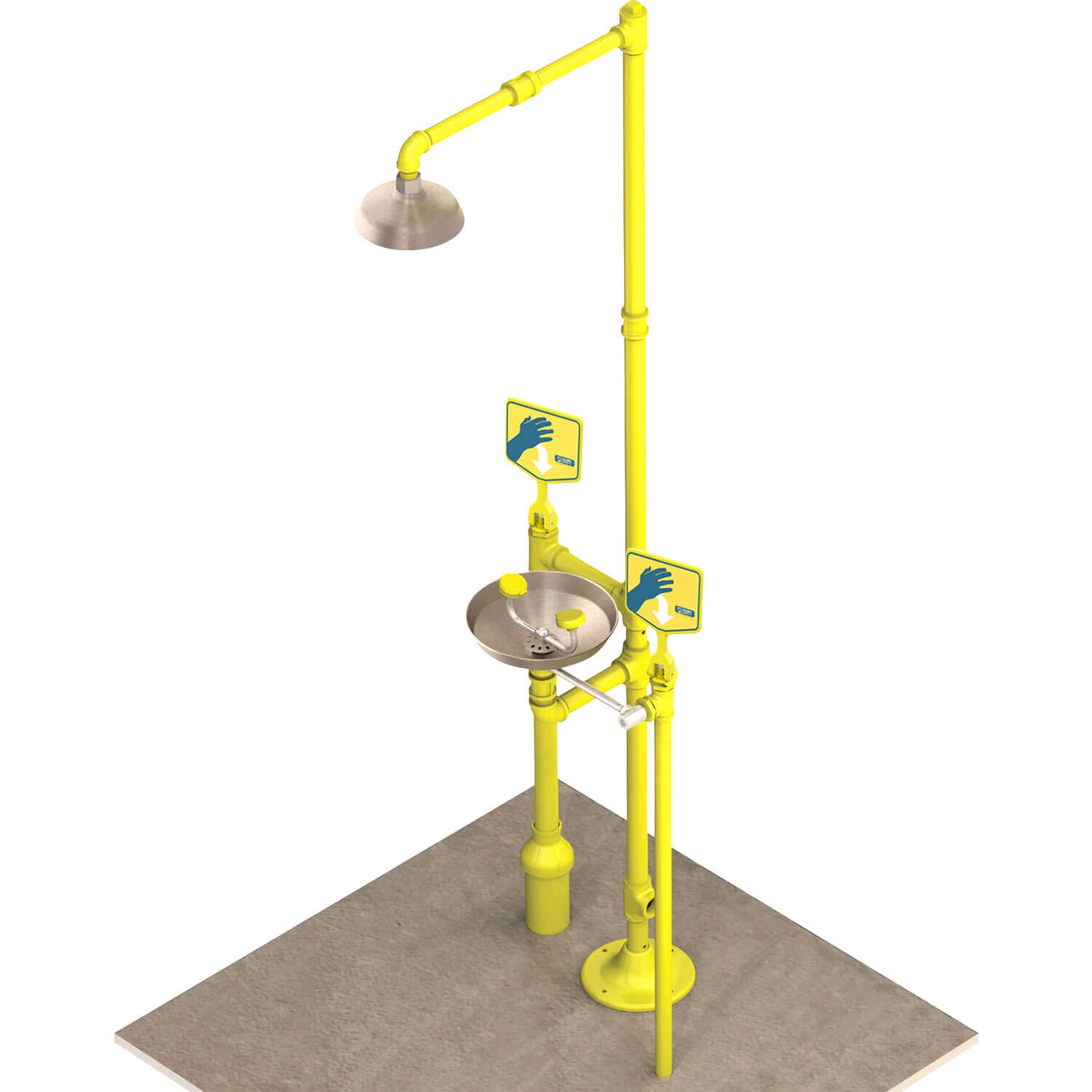

Model S2340-FPB_ _ is a pedestal mounted combination station with an eye-face wash, with a stainless steel bowl, ABS plastic eye-face wash spray heads, an inline strainer and a shower with a stainless steel showerhead. Frost proof valves and supplies are buried below the frost line to protect the unit from freezing. The assembly is designed to drain completely, thus leaving no residual water in the unit and preventing it from freezing. Standard bury lengths are 24", 36" and 48". Specify the bury depth of the valves with the last two (2) digits of the model number (i.e. S2340-FPB24 for 24" buries).

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S1340-FPB and S2340-FPB Shower, Eye-Face Wash (pdf)
Frost-Proof Pedestal Safety Shower Eye-Face Wash [S1340-FPB | Plastic Showerhead, Stainless Steel Eye-Face Wash Bowl; S2340-FPB | Stainless Steel Showerhead, Stainless Steel Eye-Face Wash Bowl]1 MB
PDF icon
Submittals
PDF icon
Submittal S2340-FPB Drench Shower Combo (pdf)
Frost-Proof Stainless Steel Pedestal Safety Shower with Eye-Face Wash216 KB
PDF icon
Technical Data Sheets
PDF icon
Application Data Sheet - High Activation Heaters for Drench Showers (pdf)
High Activation High Capacity Heater for use on Acorn Safety Drench Shower featuring Chronomite Boxer® Heater [ERB-H_3P Series] 933 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB

Specifications

Fixture TypeCombination Shower and Eye-Face Wash Station
MountingPedestal Mount
InstallationExposed
Shower ActivationPush Handle
Shower Valve TypeFreeze-Resistant Valve
Shower Valve Size1-1/4"
Eye-Face Wash ActivationPush Handle
Eye-Face Wash Valve TypeFreeze-Resistant Valve
Eye-Face Wash Valve Size3/4"
Supply Inlet1-1/4" NPT
Eye-Face Wash Supply Inlet3/4" NPT
Waste Outlet1-1/4" NPT
Shower Flow Rate20 GPM
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Showerhead MaterialStainless Steel
Showerhead Diameter8"
Eye-Face Wash BowlStainless Steel
Bowl Diameter11-3/4"
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Piping MaterialGalvanized Steel
Piping FinishYellow Powder Coat
Floor Flange9-1/8" Cast Iron
Freeze-ResistantYes
Freeze ProtectionFrost-Proof Bury
Bury Depth24", 36", 48"
ComplianceANSI Z358.1
