Barrier Free, All Stainless Steel Pedestal Safety Shower & Eye Wash

In StockThis product is available for quick shipment nationwide.
Model S2340-AS-BF
Installation Instructions
Manual S2340-AS, S2340-AS-BF Shower, Eye-Face Wash (pdf)
Submittal
Submittal S2340-AS-BF Eye-Face Wash-Shower (pdf)
Model S2340-AS-BF

Barrier Free, All Stainless Steel Pedestal Safety Shower & Eye Wash

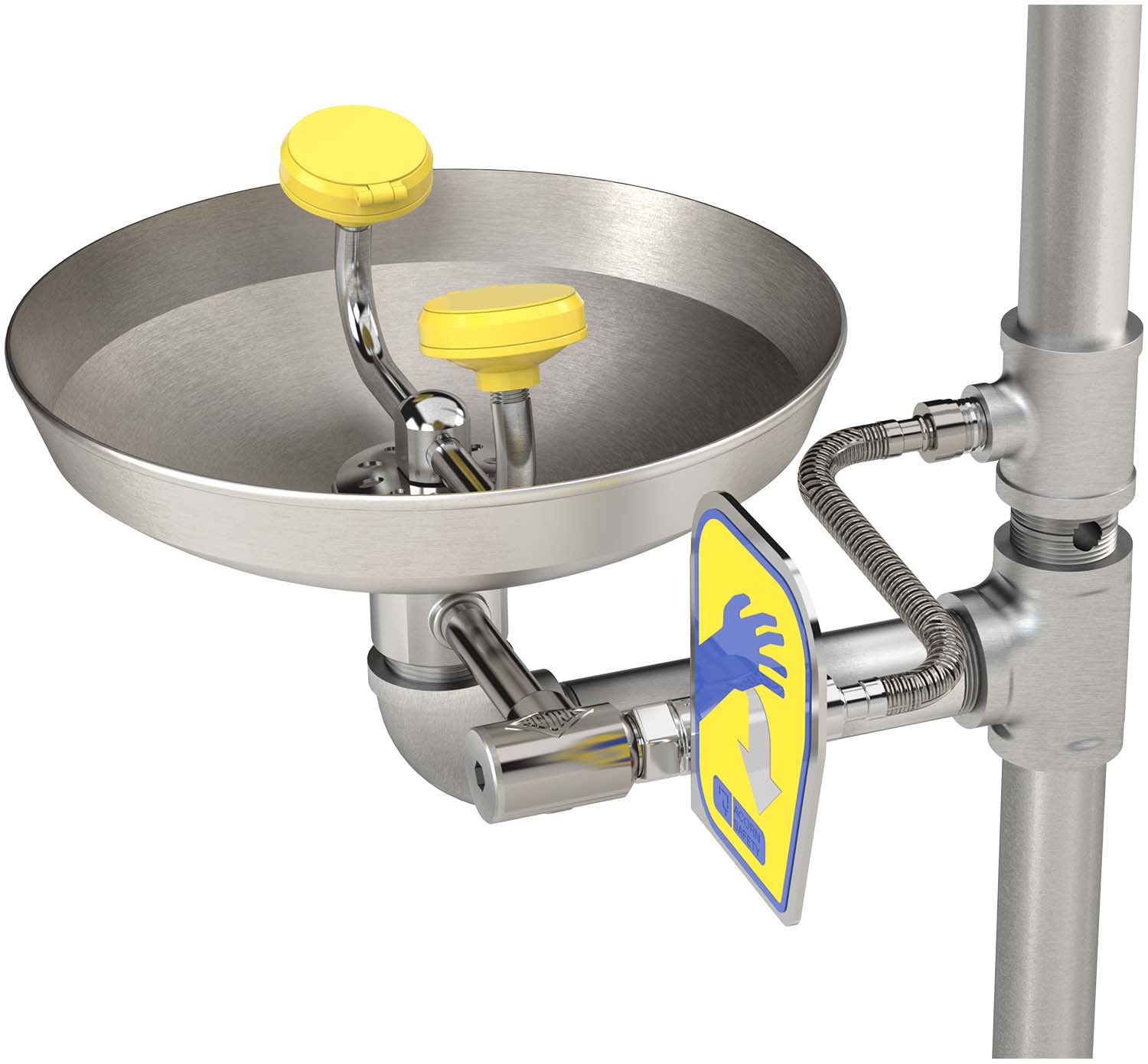

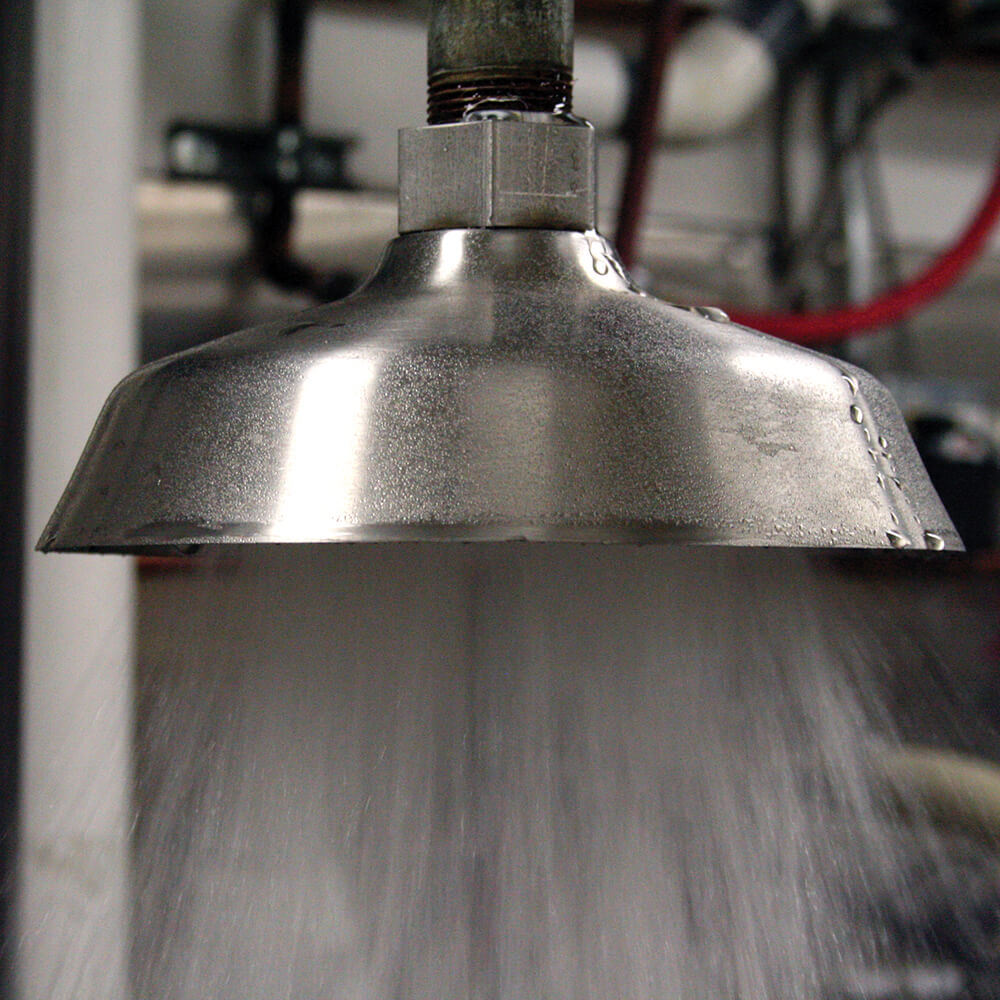

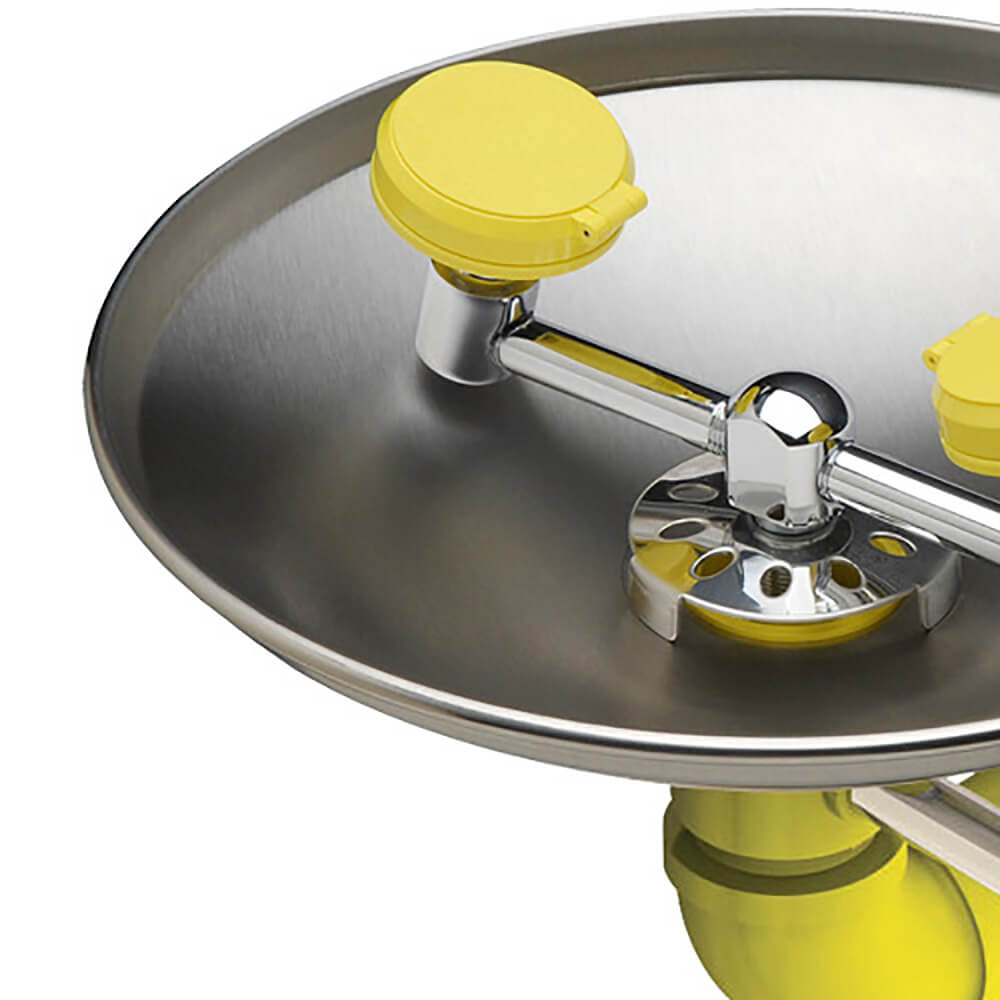

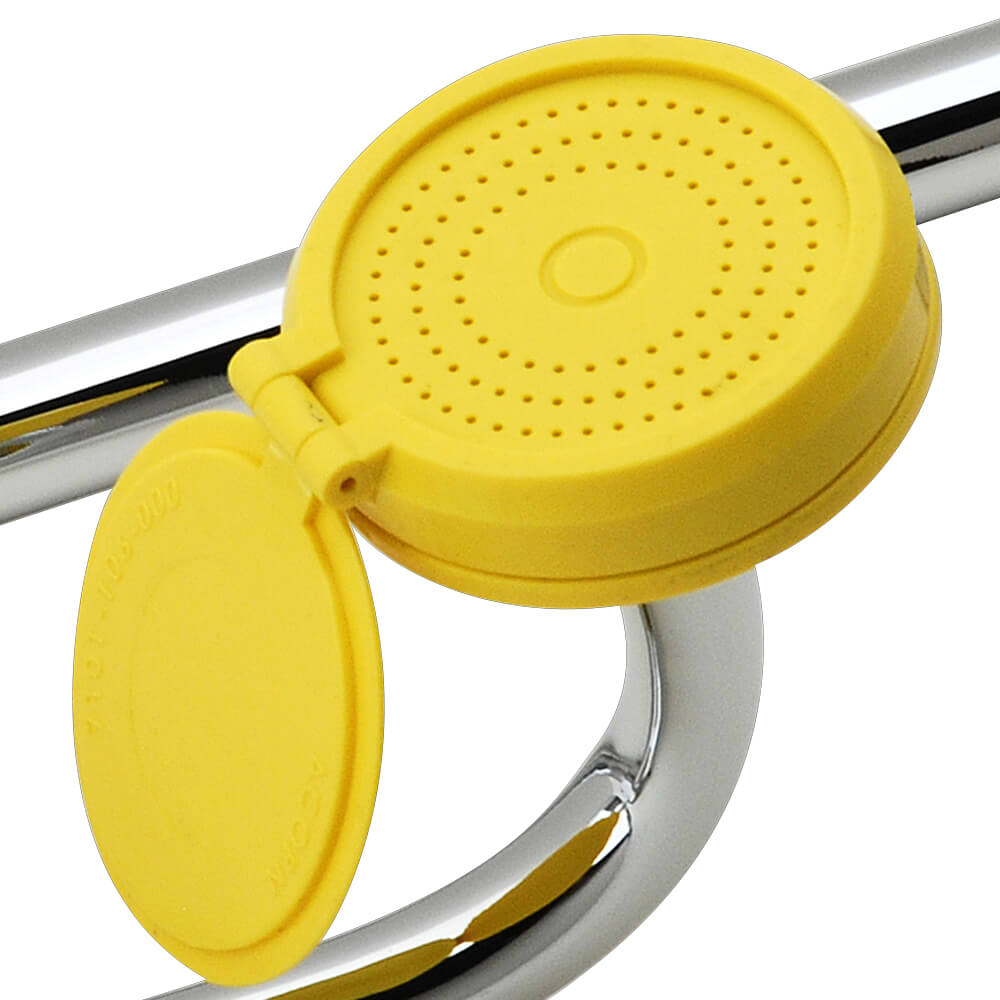

Model S2340-AS-BF is a barrier-free, all stainless steel, pedestal mounted combination station with an eye-face wash, with a stainless steel bowl, ABS plastic eye-face wash spray heads, an inline strainer, and a stay-open 1/2" stainless steel ball valve with a push handle and a shower with a stainless steel showerhead and a 1" stay-open ball valve with a 48" pull rod.

Universal Sign: ANSI-compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S2340-AS, S2340-AS-BF Shower, Eye-Face Wash (pdf)
All-Stainless Steel, Pedestal Emergency Combination Station with Shower and Eye-Face Wash Bowl [S2340-AS | All-Stainless Steel Unit; S2340-AS-BF| Barrier-Free Unit]903 KB
PDF icon
Submittals
PDF icon
Submittal S2340-AS-BF Eye-Face Wash-Shower (pdf)
Barrier Free, All Stainless Steel Pedestal Safety Shower and Eye-Face Wash205 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB
PDF icon
Brochures/Flyers
PDF icon
Kwik Ship General Brochure (pdf)
Save time with many models that shipped fully or mostly assembled. Products are in stock and locally available for quick delivery.7 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Kwik Ship Spec Sheet (pdf)
Why Safety® Emergency Eye Face Wash and Showers? S0420 Wall Mount Eye Face Wash, S0320 Pedestal Mount Eye Face Wash, S2160-PE21-RA-PAN, S1320, S2340-AS-BF Combo Eye Face Wash Showers2 MB

Specifications

Fixture TypeCombination Shower and Eye-Face Wash Station
MountingPedestal Mount
InstallationExposed
Shower ActivationPull Rod
Pull Rod Length48"
Shower Valve TypeStay-Open Ball Valve
Shower Valve Size1"
Shower Valve MaterialStainless Steel
Eye-Face Wash ActivationPush Handle
Eye-Face Wash Valve TypeStay-Open Ball Valve
Eye-Face Wash Valve Size1/2"
Eye-Face Wash Valve MaterialStainless Steel
Inline Strainer50 Mesh
Supply Inlet1-1/4" NPT
Waste Outlet1-1/4" NPT
Shower Flow Rate20 GPM
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI
Showerhead MaterialStainless Steel
Showerhead Diameter8"
Eye-Face Wash BowlStainless Steel
Bowl Diameter11-3/4"
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Piping MaterialStainless Steel
Floor Flange4-5/8" Stainless Steel
Barrier-FreeYes
ComplianceANSI Z358.1
ADAConforms (2010 ADA Standards 306, 308)
