Pedestal Emergency Combination Station with Stainless Steel Showerhead and Plastic Bowl Eye Wash

In StockThis product is available for quick shipment nationwide.
Model S2320
Installation Instructions
Manual S1320, S1340, S2320, S2340 Shower, Eye-Face Wash (pdf)
Submittal
Submittal S2320 Eye-Face Wash-Shower (pdf)
Model S2320

Pedestal Emergency Combination Station with Stainless Steel Showerhead and Plastic Bowl Eye Wash

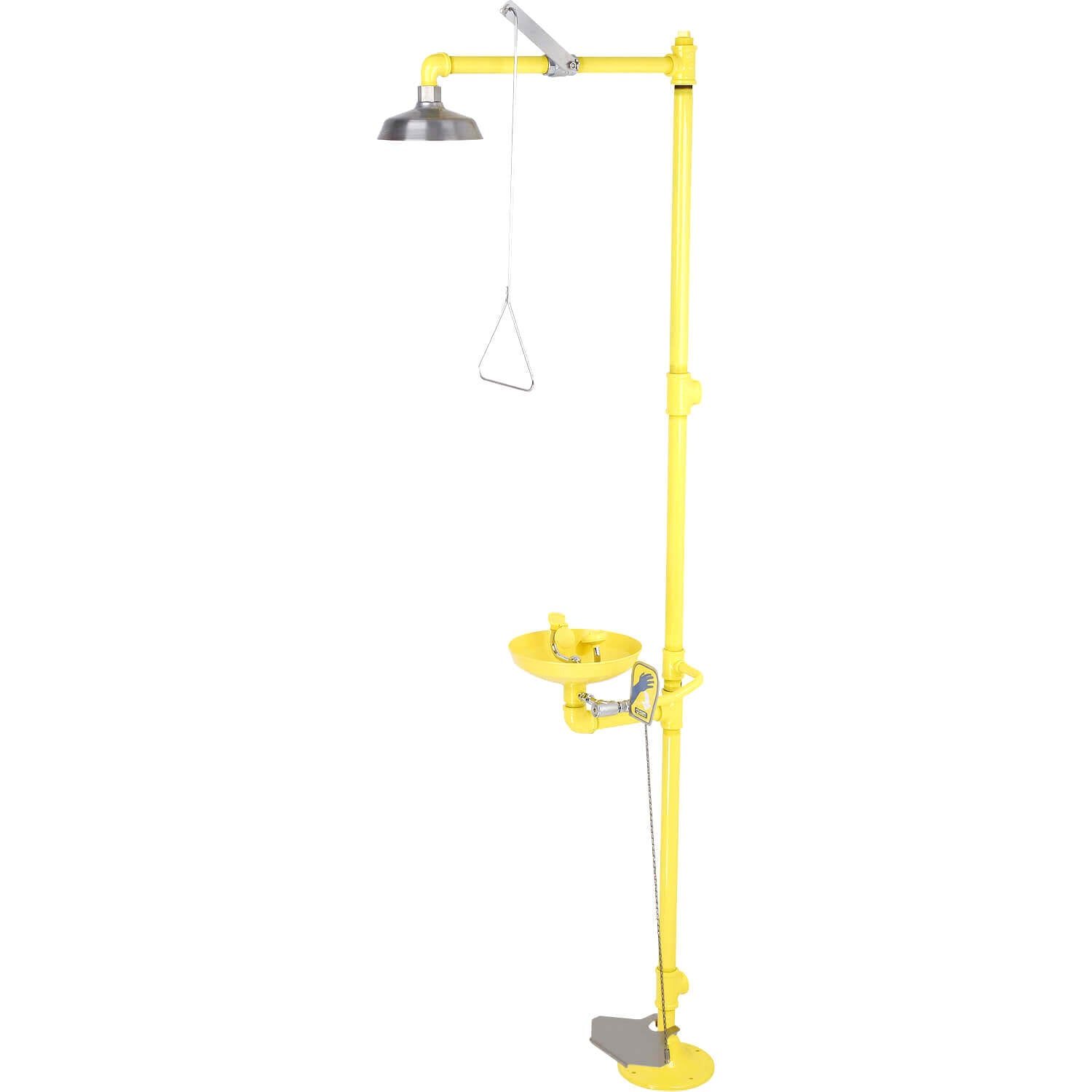

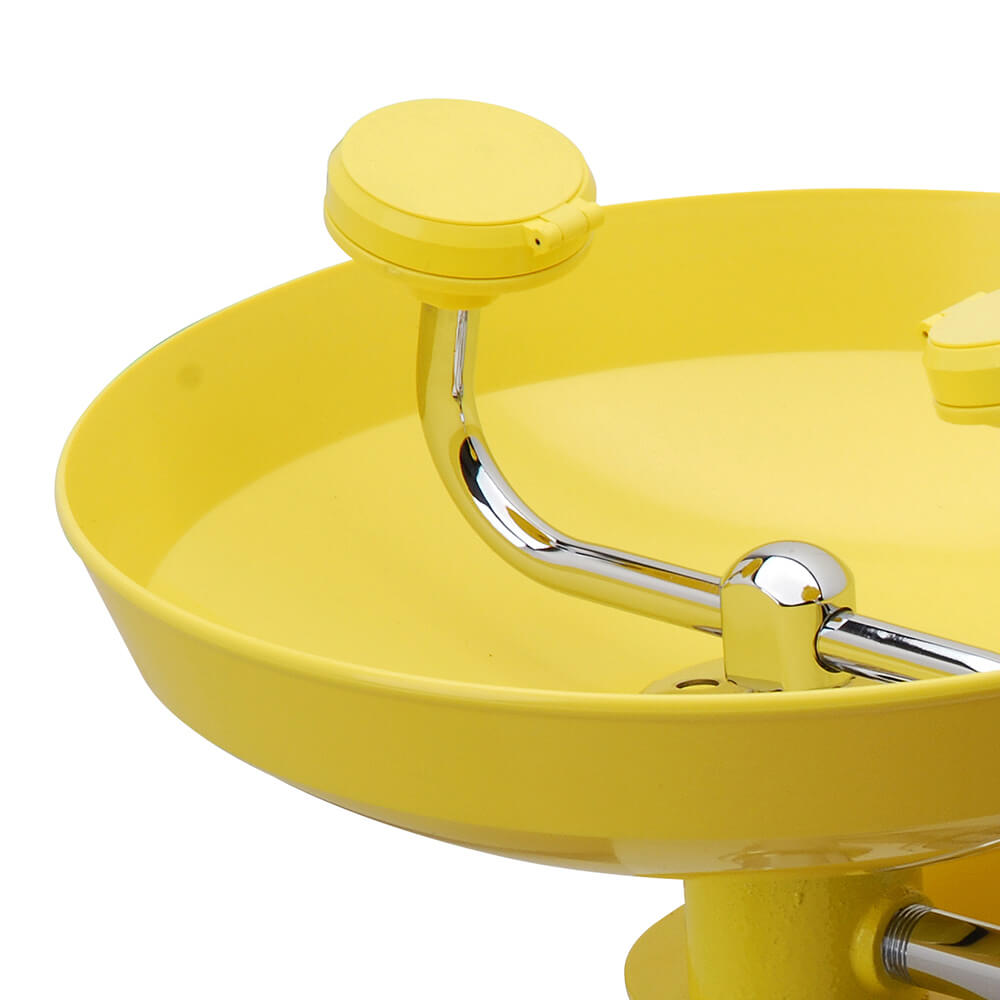

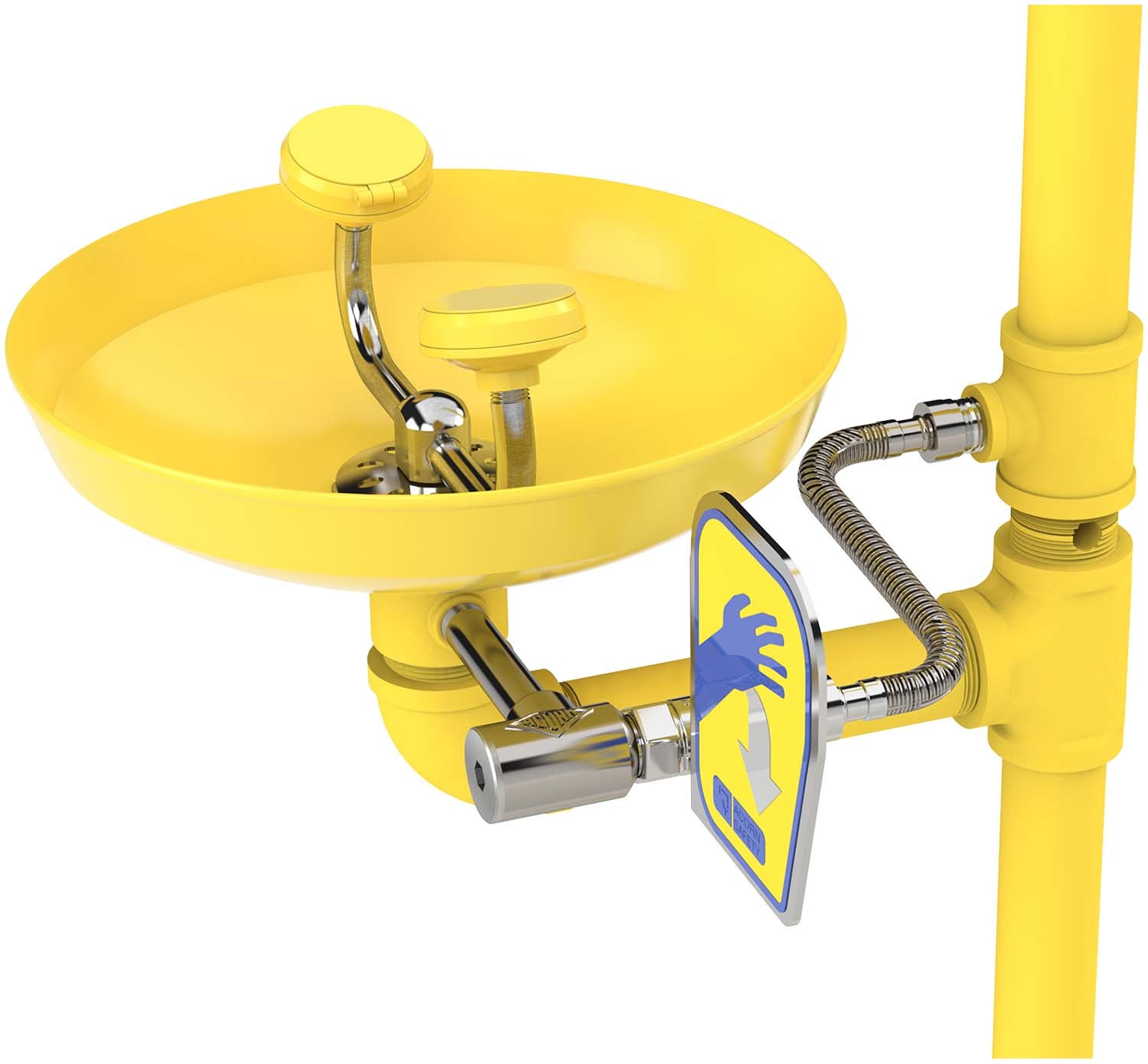

S2320 is a pedestal-mounted combination station with an eye-face wash, with a plastic bowl, ABS plastic eye-face wash spray heads, an inline strainer, and a stay-open 1/2" ball valve with a push handle and a shower with a stainless steel showerhead and a 1" stay-open ball valve with a pull rod.

Universal Sign: ANSI-compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the unit's date and inspector's name for weekly functional testing.

  • Ease of maintenance
  • Conveniently pre-assembled
  • Highly visible yellow powder coating
  • Barrier-free options

Downloads

Resource Type
Title
Description
File Size
Action
DOC icon
Product MasterSpec
DOC icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
170 KB
PDF icon
Installation Instructions
PDF icon
Manual S1320, S1340, S2320, S2340 Shower, Eye-Face Wash (pdf)
Pedestal Emergency Combination Station with Shower-Eye-Face Wash [S1320 | Plastic Showerhead - Plastic Eye-Face Wash Bowl; S1340 | Plastic Showerhead - Stainless Steel Eye-Face Wash Bowl; S2320 | Stainless Steel Showerhead - Plastic Eye-Face Wash Bowl; S2340 | Stainless Steel Showerhead - Stainless Steel Eye-Face Wash Bowl]769 KB
PDF icon
Submittals
PDF icon
Submittal S2320 Eye-Face Wash-Shower (pdf)
Pedestal Emergency Combination Station with Stainless Steel Showerhead and Plastic Bowl Eye-Face Wash239 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Product MasterSpec
PDF icon
MasterSpec Section 224500 - Emergency Plumbing Fixtures
177 KB
ZIP icon
BIM/CAD/Revit
ZIP icon
S1320, S1340, S2320, S2340 Eye-Face Wash-Shower CAD Drawing
2 MB
ZIP icon
BIM/CAD/Revit
ZIP icon
S1320, S1340, S2320, S2340 Eye-Face Wash-Shower Revit Drawing
2 MB

Specifications

Fixture TypeCombination Shower and Eye-Face Wash Station
MountingPedestal Mount
InstallationExposed
Shower ActivationPull Rod
Pull Rod Length29"
Shower Valve TypeStay-Open Ball Valve
Shower Valve Size1"
Shower Valve MaterialChrome Plated Brass
Eye-Face Wash ActivationPush Handle
Eye-Face Wash Valve TypeStay-Open Ball Valve
Eye-Face Wash Valve Size1/2"
Eye-Face Wash Valve MaterialChrome Plated Brass
Inline Strainer50 Mesh
Supply Inlet1-1/4" NPT
Waste Outlet1-1/4" NPT
Shower Flow Rate20 GPM
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI

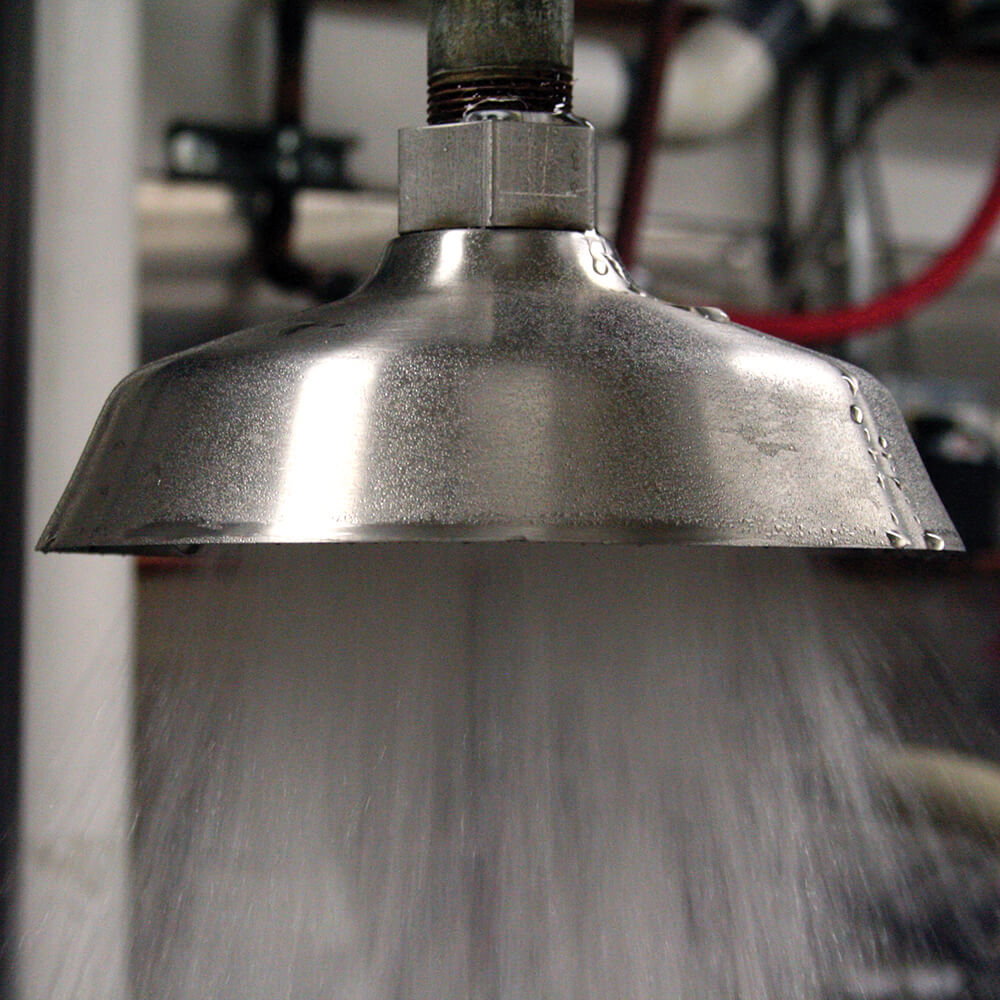

Showerhead MaterialStainless Steel
Showerhead Diameter8"
Eye-Face Wash BowlABS Plastic
Bowl Diameter11-3/4"
Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Piping MaterialGalvanized Steel
Piping FinishYellow Powder Coat
Floor Flange9-1/8" Cast Iron
ComplianceANSI Z358.1
