Model S2260-PAN-RA
Installation Instructions
Manual S2160-PE-RA, S2260-RA, S3160-RA Shower, Eye-Face Wash (pdf)
Submittal
Submittal S2260-RA Eye-Face Wash-Shower (pdf)
Model S2260-PAN-RA

Stainless Steel, Horizontal Mount Safety Shower and Recessed Eye-Face Wash

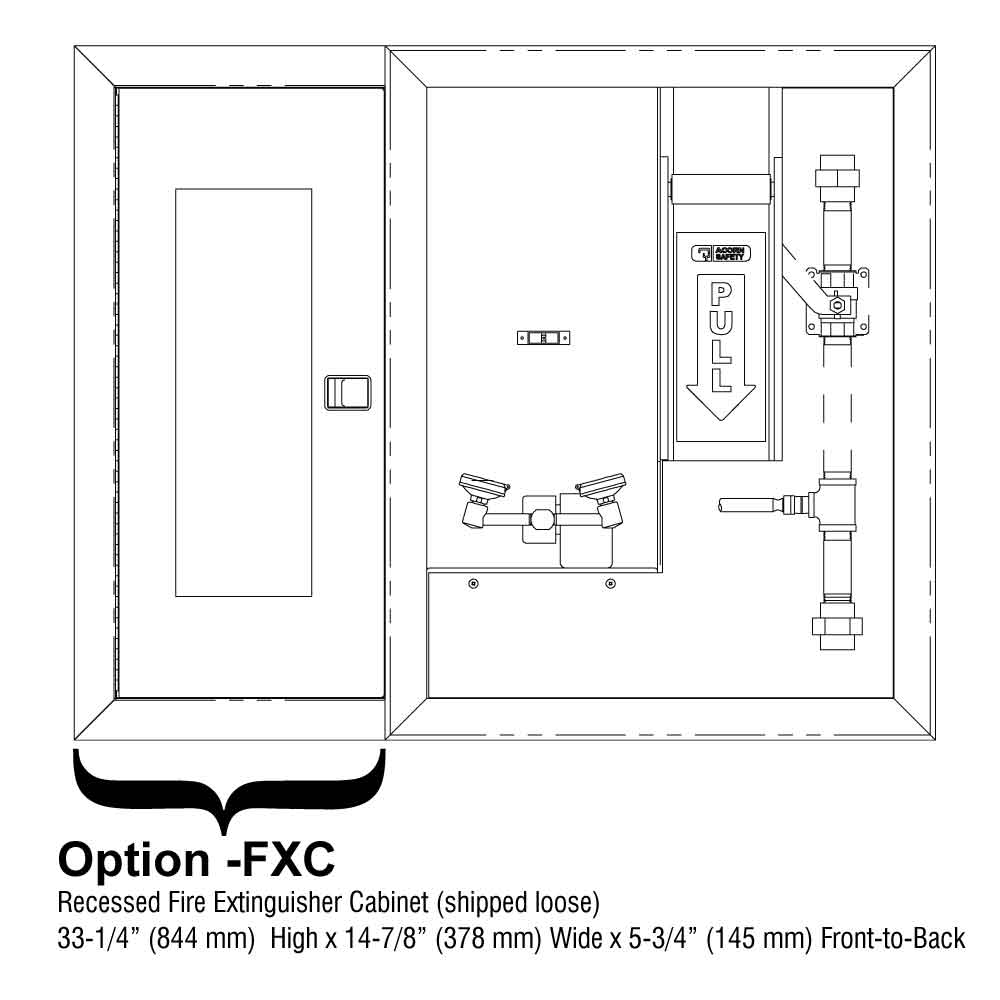

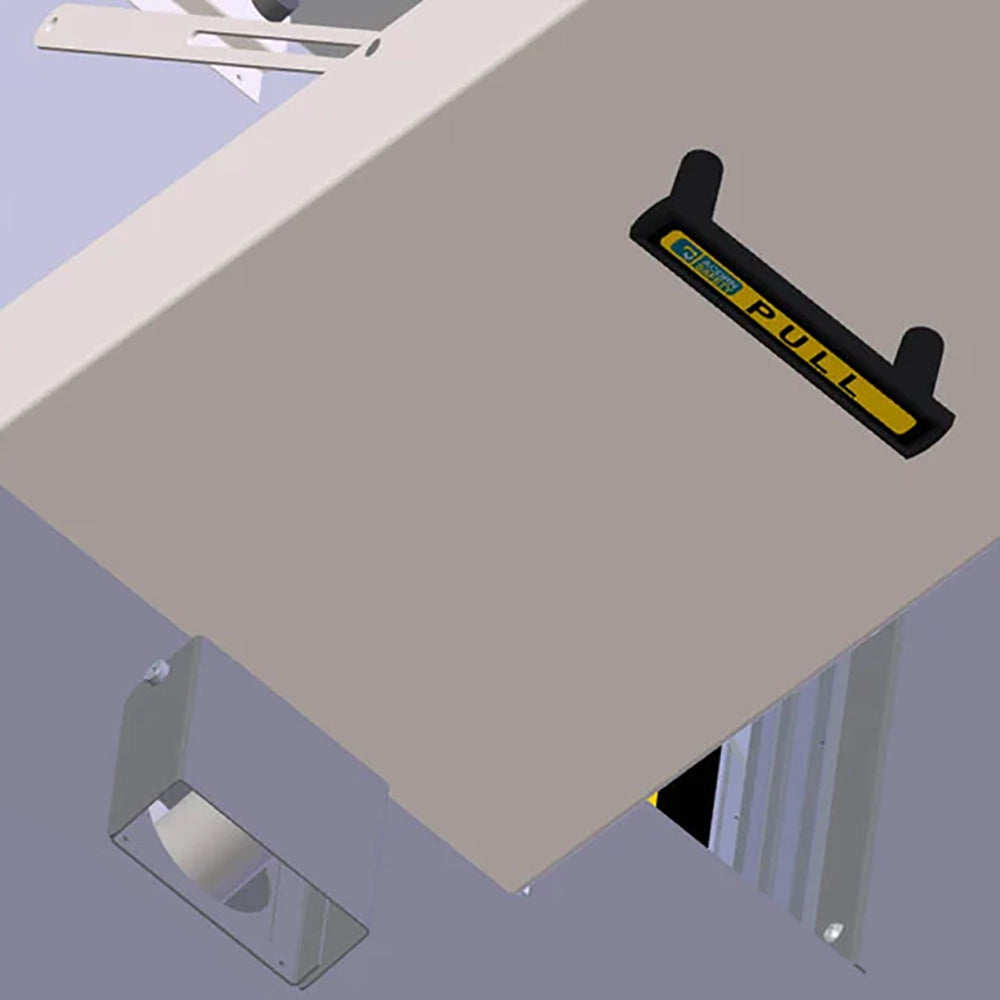

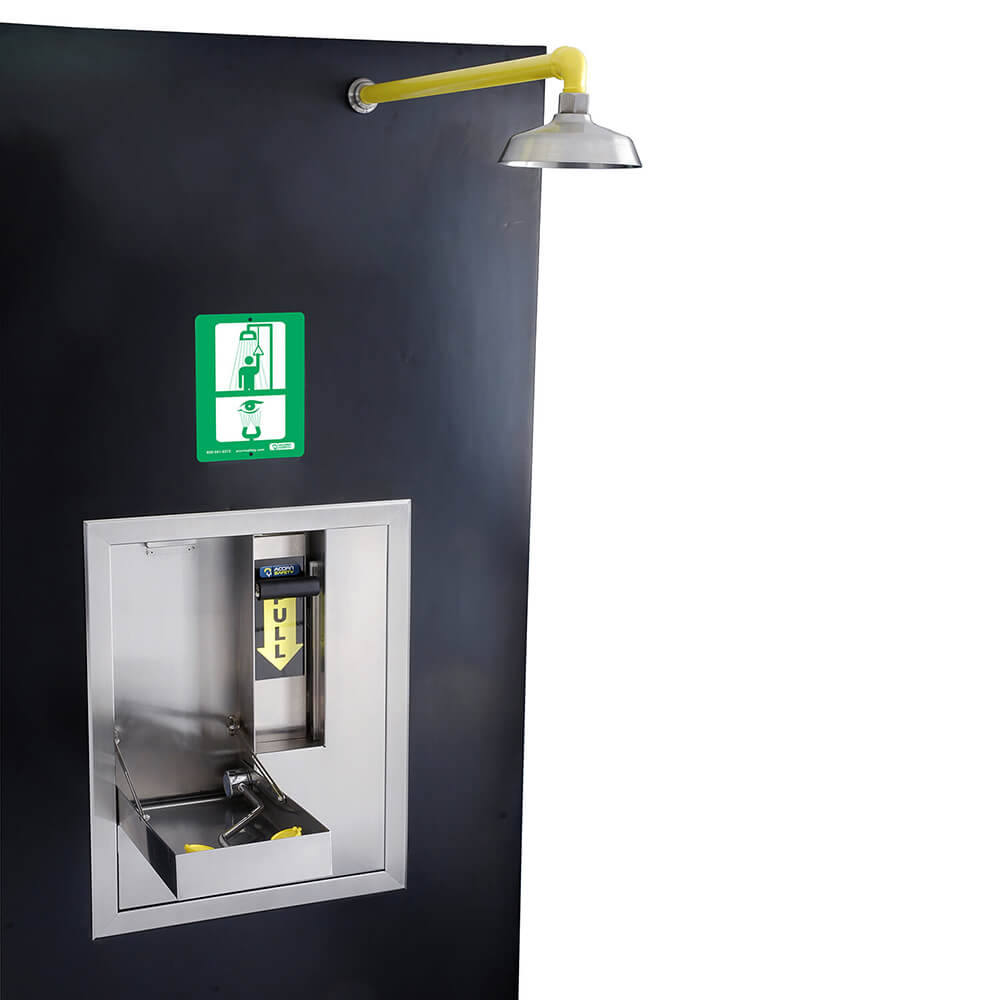

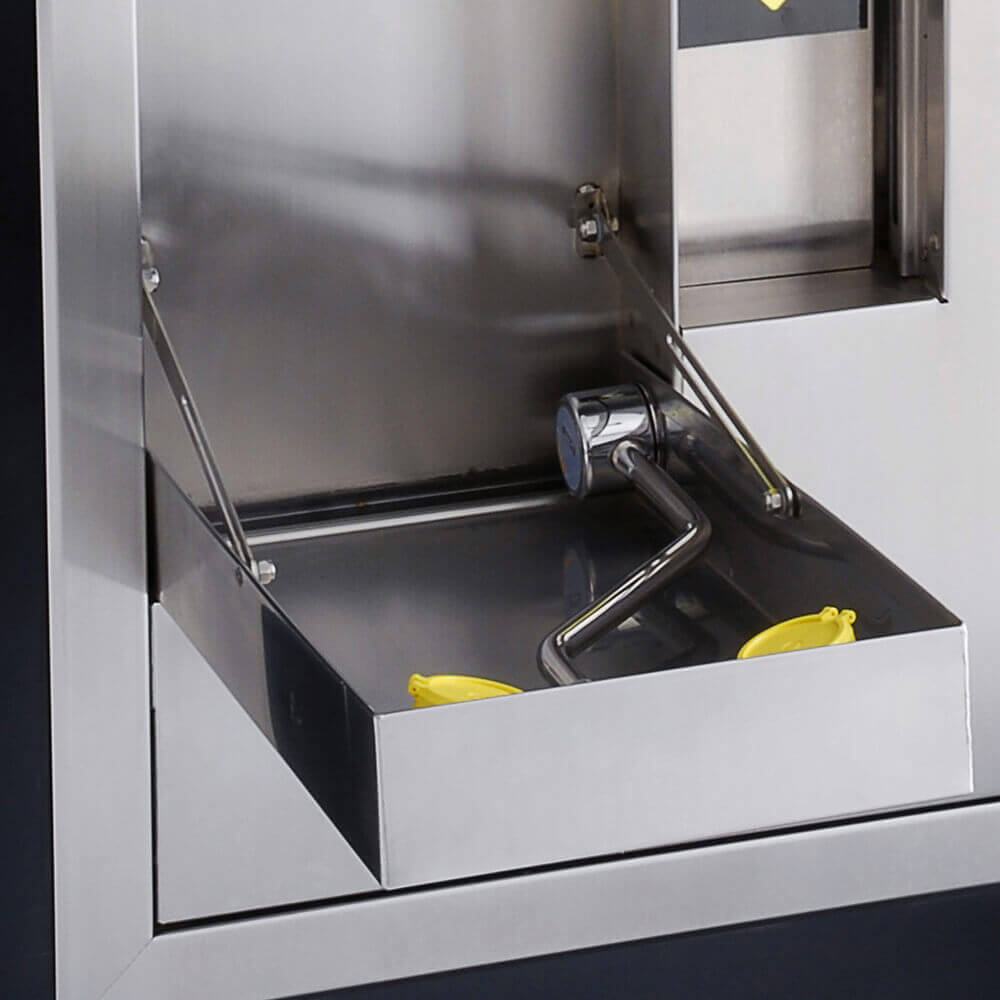

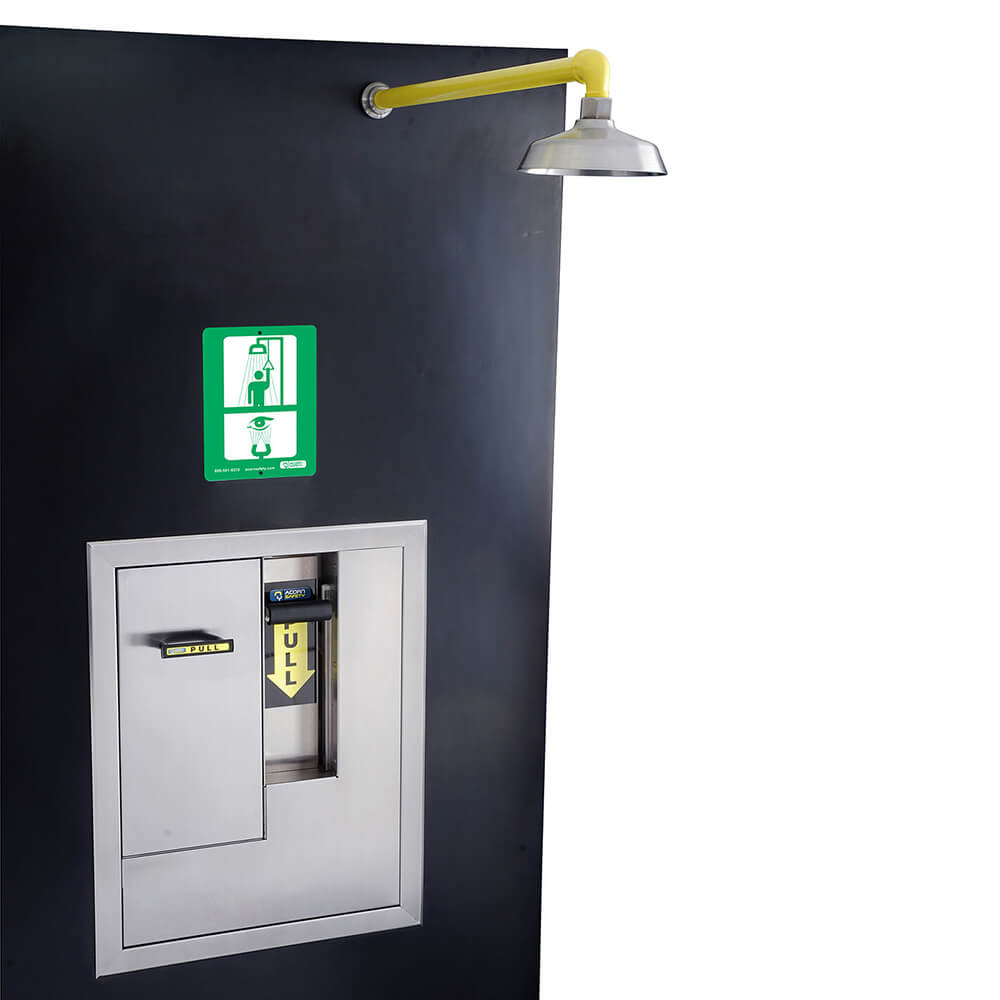

S2260-RA is a barrier-free, recessed-activated, eye-face wash with ABS plastic eye-face wash spray heads and a horizontally mounted emergency shower with a stainless steel showerhead. The eye-face wash swings down over the floor from the recessed cabinet and the water flow is activated automatically. The eye-face wash flow is terminated once the unit has been loaded back into its original storage position.

Note: When installed at an appropriate height, the unit may comply with some but not all requirements for ADA.

Universal Sign: ANSI-compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the unit's date and inspector's name for weekly functional testing.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual S2160-PE-RA, S2260-RA, S3160-RA Shower, Eye-Face Wash (pdf)
Stainless Steel Safety Shower with Eye-Face Wash in Recessed Cabinet [S2160-PE21-RA | Barrier-Free, Vertical Shower with 21-Inch Pipe Extension; S2260 | Horizontal Shower; S3200-RA | Flush Ceiling Shower] includes Option -PAN | Waste Water Drain Pan (for Eye-Face Wash)]364 KB
PDF icon
Submittals
PDF icon
Submittal S2260-RA Eye-Face Wash-Shower (pdf)
Stainless Steel, Horizontal Mount Safety Shower and Recessed Eye-Face Wash263 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB
PDF icon
Technical Data Sheets
PDF icon
Acorn Safety Equipment Check List (pdf)
Emergency Equipment Minimum Performance Checklist compliant with ANSI Z358.1-2014 1 MB
RFA icon
BIM/CAD/Revit
RFA icon
S2260-RA Drench Shower Eye-Face Wash Revit Drawing
304 KB
ZIP icon
BIM/CAD/Revit
ZIP icon
S2260-RA eye-face Wash-Shower CAD Drawing
285 KB

Specifications

Fixture TypeCombination Shower and Eye-Face Wash Station
MountingHorizontal Mount
InstallationExposed
Shower ActivationRecessed Actuator
Shower Valve TypeStay-Open Ball Valve
Shower Valve Size1"
Shower Valve MaterialChrome Plated Brass
Valve EnclosureRecessed Stainless Steel, Vandal-Resistant Access Panel
Eye-Face Wash ActivationSwing-Down
Eye-Face Wash Valve TypeSwing-Down Valve
Eye-Face Wash Valve Material316 Stainless Steel
Inline Strainer50 Mesh
Supply Inlet1" NPT
Eye-Face Wash Supply Inlet1/2" NPT
Drain PanIncluded
Waste Outlet2"
Shower Flow Rate20 GPM
Eye-Face Wash Flow Rate3.0 GPM
Flow Pressure30 PSI

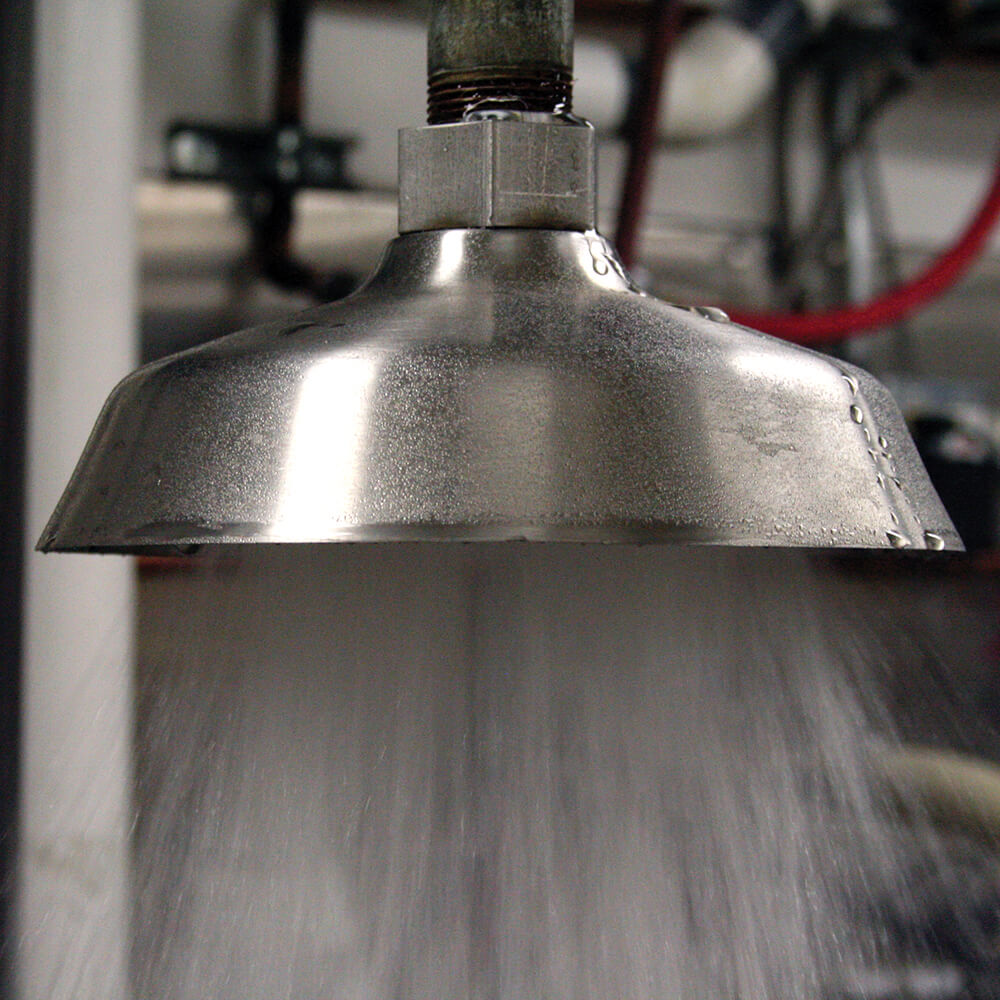

Showerhead MaterialStainless Steel
Showerhead Diameter8-1/8"
Eye-Face Wash BowlNo Bowl

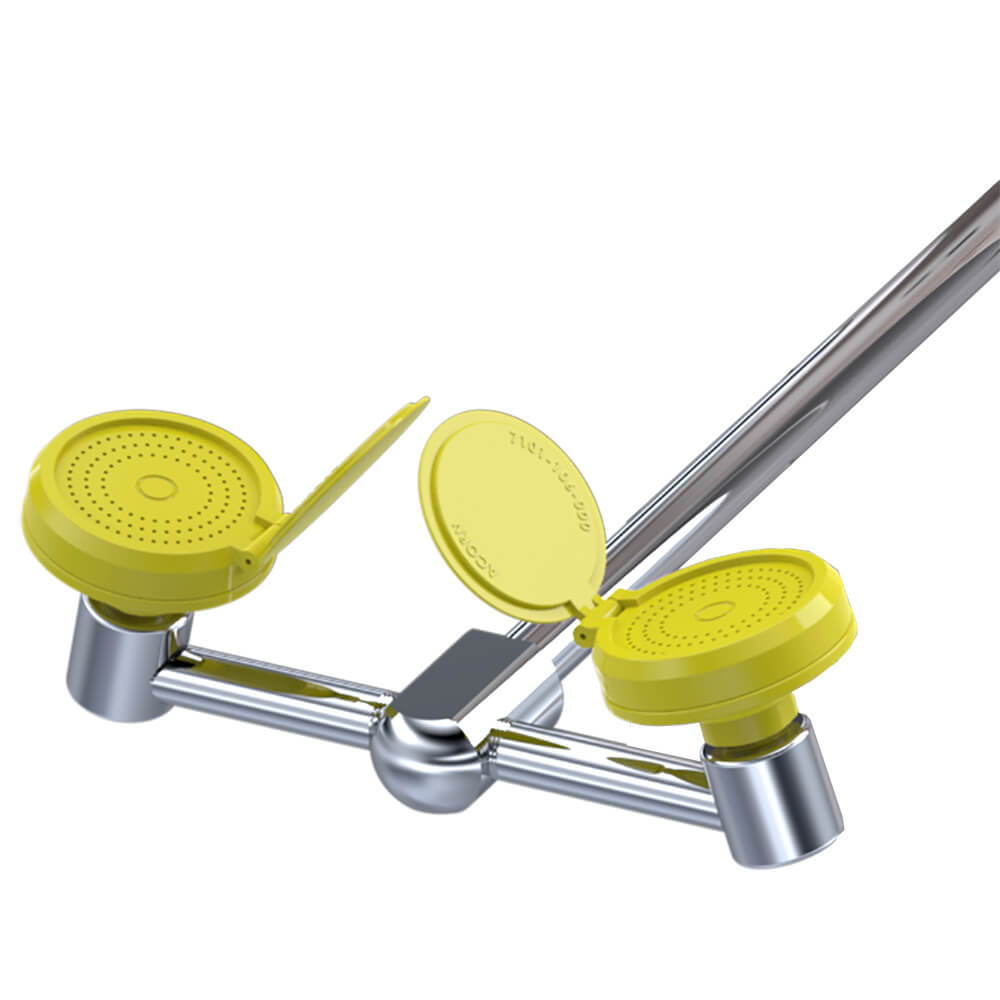

Spray Head TypeEye-Face Wash
Spray Head MaterialABS Plastic
Spray Head Flow Control3.7 GPM
Antimicrobial Spray HeadsYes
Piping MaterialGalvanized Steel
Piping FinishYellow Powder Coat
Barrier-FreeYes
ComplianceANSI Z358.1
