Option: Scald Protection Valve on Emergency Station

In StockThis product is available for quick shipment nationwide.
Model S0000-SPV
Installation Instructions
Manual Accessory S0000-FPV or S0000-SPV for Eye-Face Wash
Submittal
Spec Sheet Option S0000-SPV Valve (pdf)
Model S0000-SPV

Option: Scald Protection Valve on Emergency Station

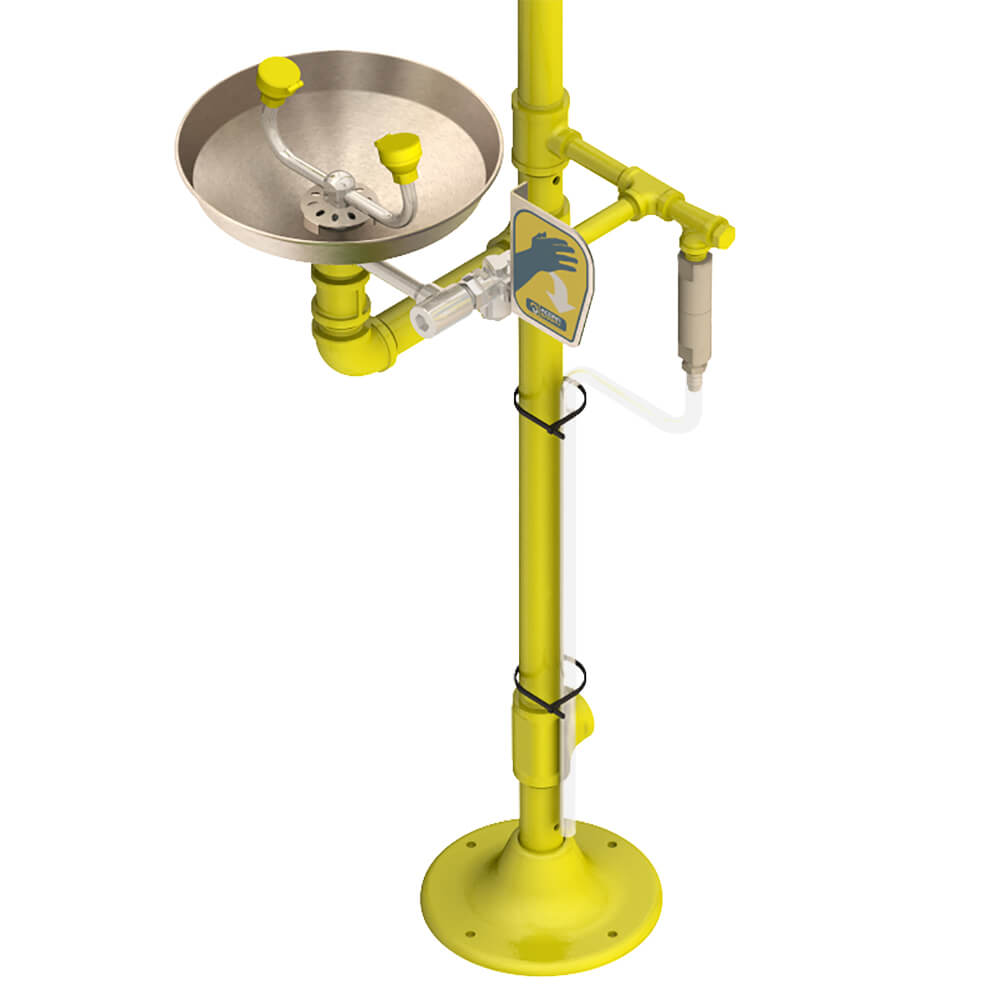

S0000-SPV is a scald protection valve that will initiate flow when the thermostatic actuator senses a temperature of 98°F (36.7°C). It is typically piped to a drain and thereby purging the unsafe water and bringing fresh/safe water to the valve/fixture. The valve will remain open (fully open at 105°F (40.6°C)) until it senses a safe temperature of 95°F or less at which point it will automatically close (resetting itself). The valve features 1/2-14 NPT female threads on each end. The S0000-SPV Valve will come installed on the emergency station when specified.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual Accessory S0000-FPV or S0000-SPV for Eye-Face Wash
FPV | Freeze Protection Valve; SPV | Scald Protection Valve580 KB
PDF icon
Submittals
PDF icon
Spec Sheet Option S0000-SPV Valve (pdf)
182 KB
PDF icon
Brochures/Flyers
PDF icon
Acorn Safety Products Brochure (pdf)
Acorn Safety Products Brochure [cover with man using S1360-HT Combination Shower) L# L1001391 03/20185 MB

Specifications

Accessory TypeScald Protection Valve
Use WithEye-Face Wash Stations, Combination Stations
Opens At98°F
Fully Open At105°F
Closes At95°F
Connections1/2"-14 NPT Female, Each End
Dimensions4-1/2" L x 1-1/4" Dia.
Flow Coefficient (Cv)1.5
Maximum Operating Pressure200 PSIG
Maximum Temperature300°F
Weight0.9 lb
ShippedInstalled on Fixture
